MAINTENANCE
3-4

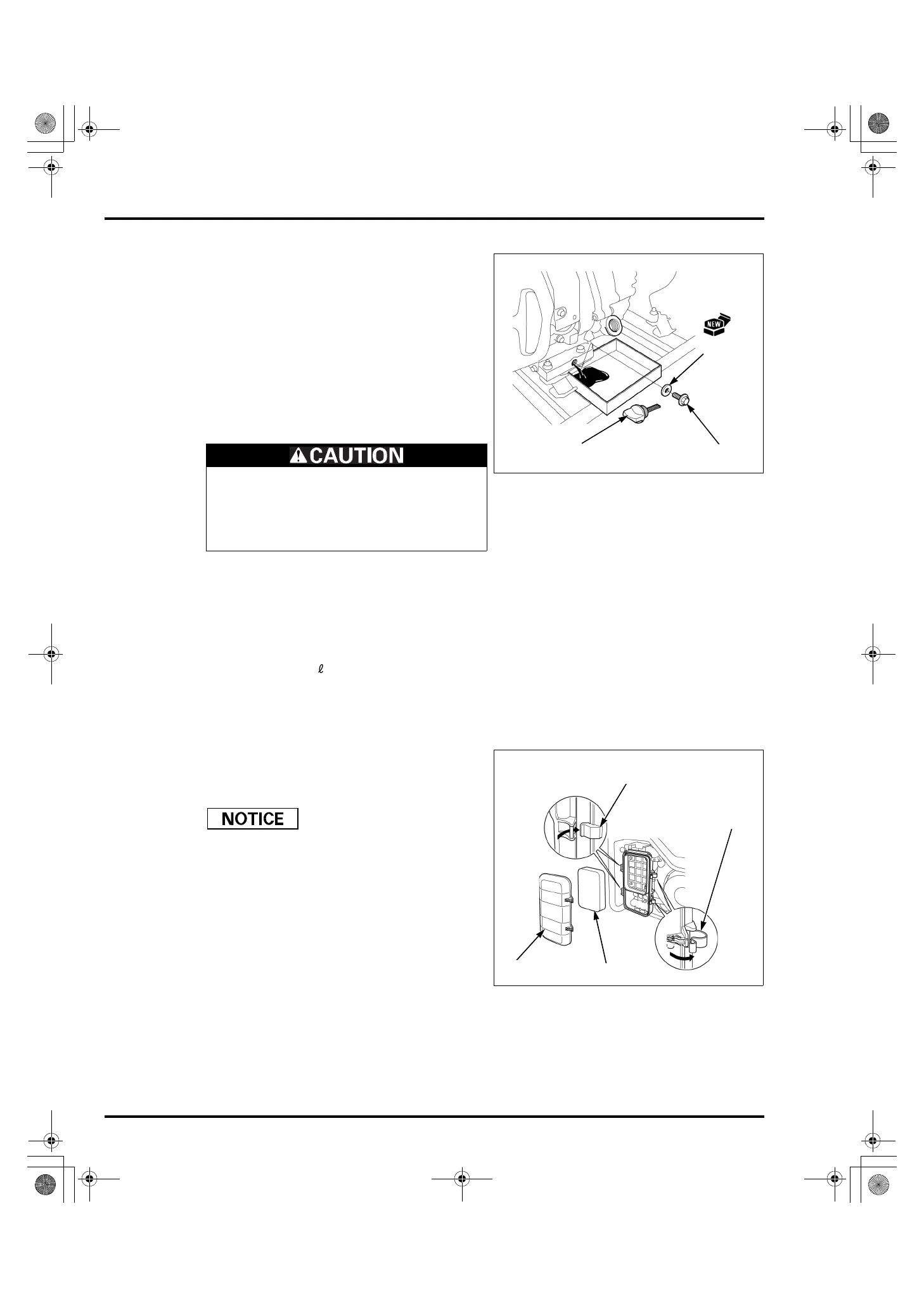

ENGINE OIL CHANGE
Drain the oil in the engine while the engine is warm.
Warm oil drains quickly and completely.
Place the engine on a level surface, and place a
suitable container under the drain plug bolt.
Remove the oil filler cap (1), drain plug bolt (2), and
drain plug washer (3) to drain the oil into the suitable
container.
Please dispose of used motor oil in a manner that is
compatible with the environment. We suggest you take
used oil in a sealed container to your local recycling
center or service station for reclamation. Do not throw it
in the trash, pour it on the ground, or pour it down a
drain.
Install a new drain plug washer (3) and tighten the drain
plug bolt (2) to the specified torque.
Fill with recommended oil to the upper level mark of the
oil level dipstick (page 3-3).
Tighten the oil filler cap securely.
AIR CLEANER CHECK/CLEANING
A dirty air filter will restrict air flow to the carburetor,
reducing engine performance. If the engine is operated
in dusty areas, clean the air cleaner more often than
specified in the MAINTENANCE SCHEDULE.
Operating the engine without the air filters or with the
filter installed loosely will allow dirt to enter the engine,
causing rapid engine wear. Install the air filters
securely.
Remove the air cleaner case lid spring (1) and unhook
the tabs (2).
Remove the air cleaner cover (3).
Remove the air cleaner element (4).
Carefully check air cleaner element and replace if
damaged.
Used engine oil contains substances that have
been identified as carcinogenic. If repeatedly left in
contact with the skin for prolonged periods, it may
cause skin cancer. Wash your hands thoroughly
with soap and water as soon as possible after con-
tact with used engine oil.
TORQUE: 22.5 N·m (2.3 kgf·m, 17 lbf·ft)
ENGINE OIL CAPACITY:
1.1 (1.2 US qt, 1.0 Imp qt)
(1)
(2)
(3)
(1)
(2)
(3)
(4)
