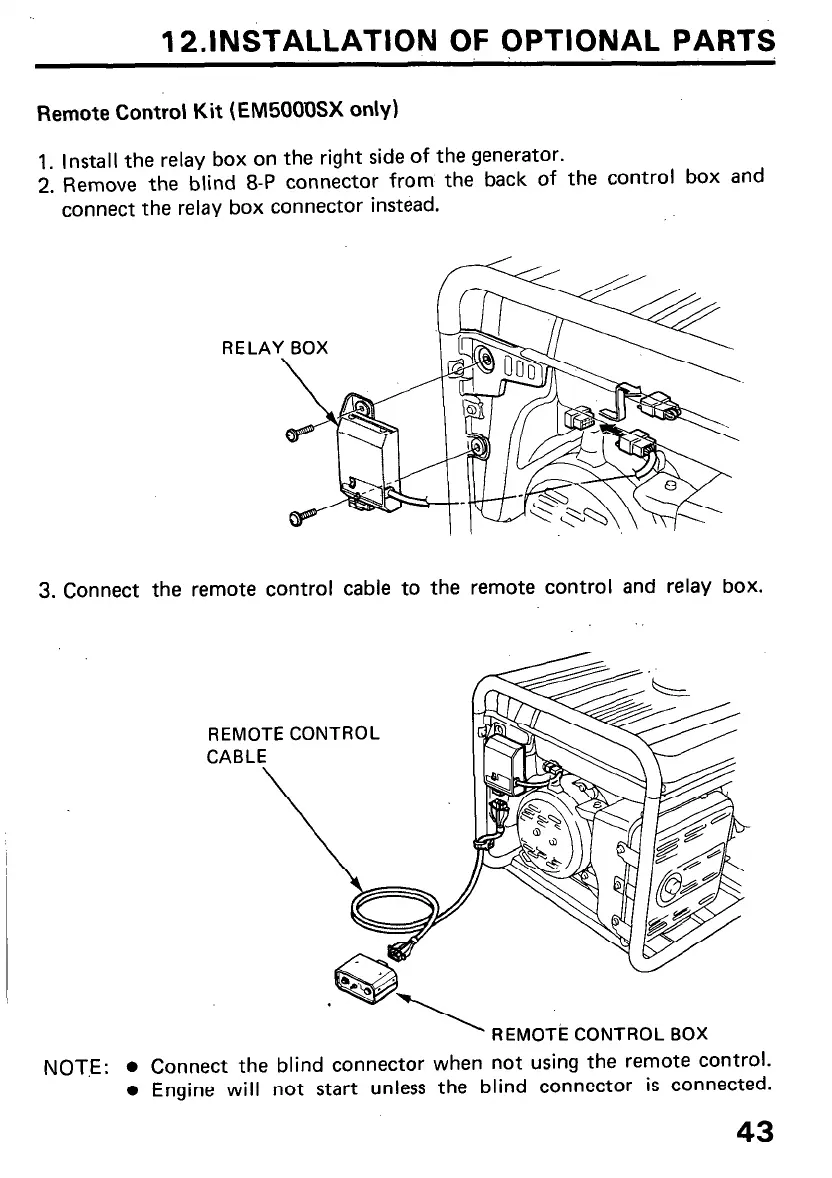

‘l2JNSTALLATION OF OPTIONAL PARTS
Remote Control Kit (EM5000SX only)
1. Install the relay box on the right side of the generator.
2. Remove the blind 8-P connector from the back of the control box and
connect the relay box connector instead.
3. Connect the remote control cable to the remote control and relay box.
REMOTE CONTROL
CARI F
NOTE:
’
REMOTE CONTROL BOX
l
Connect the blind connector when not using the remote control.
l
Engine will not start unless the blind connector is connected.
43
To Next Page
