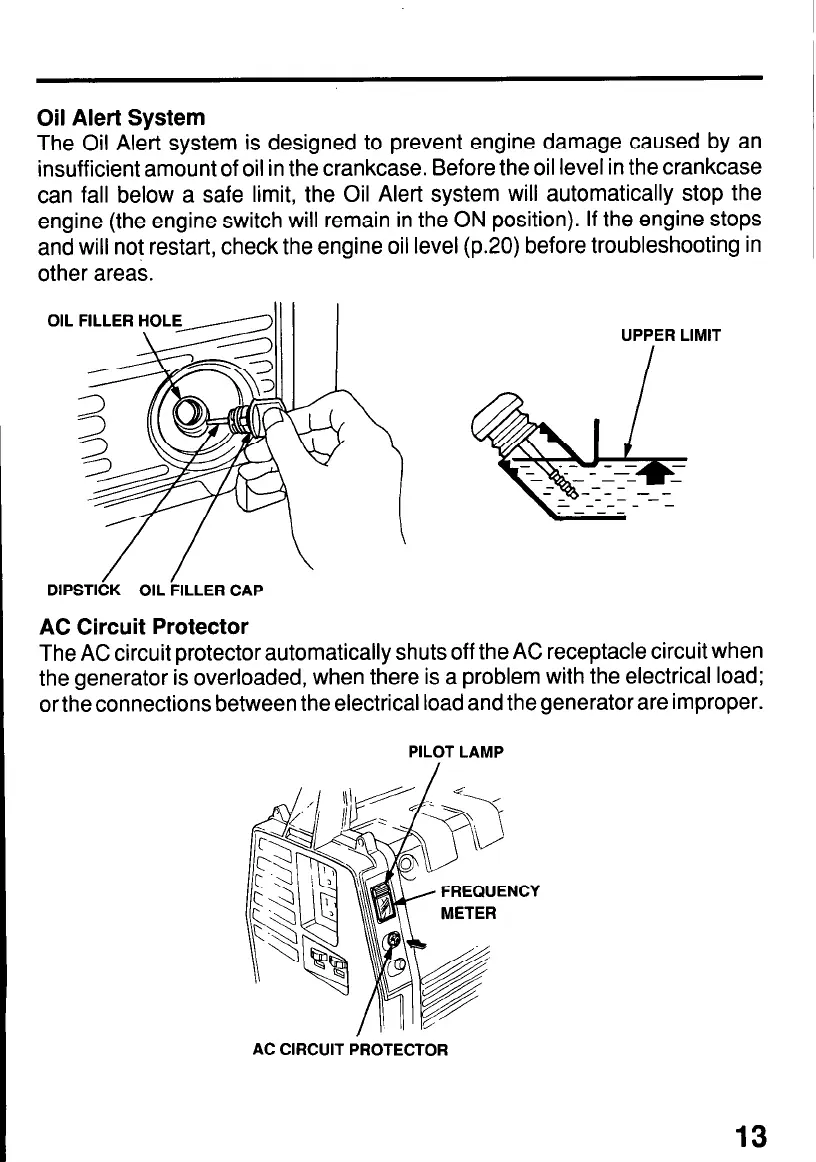

Oil Alert System
The Oil Alert system is designed to prevent engine damage caused by an
insufficient amount of oil in the crankcase. Before the oil level in the crankcase
can fall below a safe limit, the Oil Alert system will automatically stop the
engine (the engine switch will remain in the ON position). If the engine stops
and will not restart, check the engine oil level (p.20) before troubleshooting in
other areas.
OIL FILLER HOLE
DIPSTICK OIL FILLER CAP
UPPER LIMIT
AC Circuit Protector
The AC circuit protector automatically shuts off the AC receptacle circuit when
the generator is overloaded, when there is a problem with the electrical load;
or the connections between the electrical load and the generator are improper.
PILOT LAMP
AC CIRCUIT PROTECTOR
13
