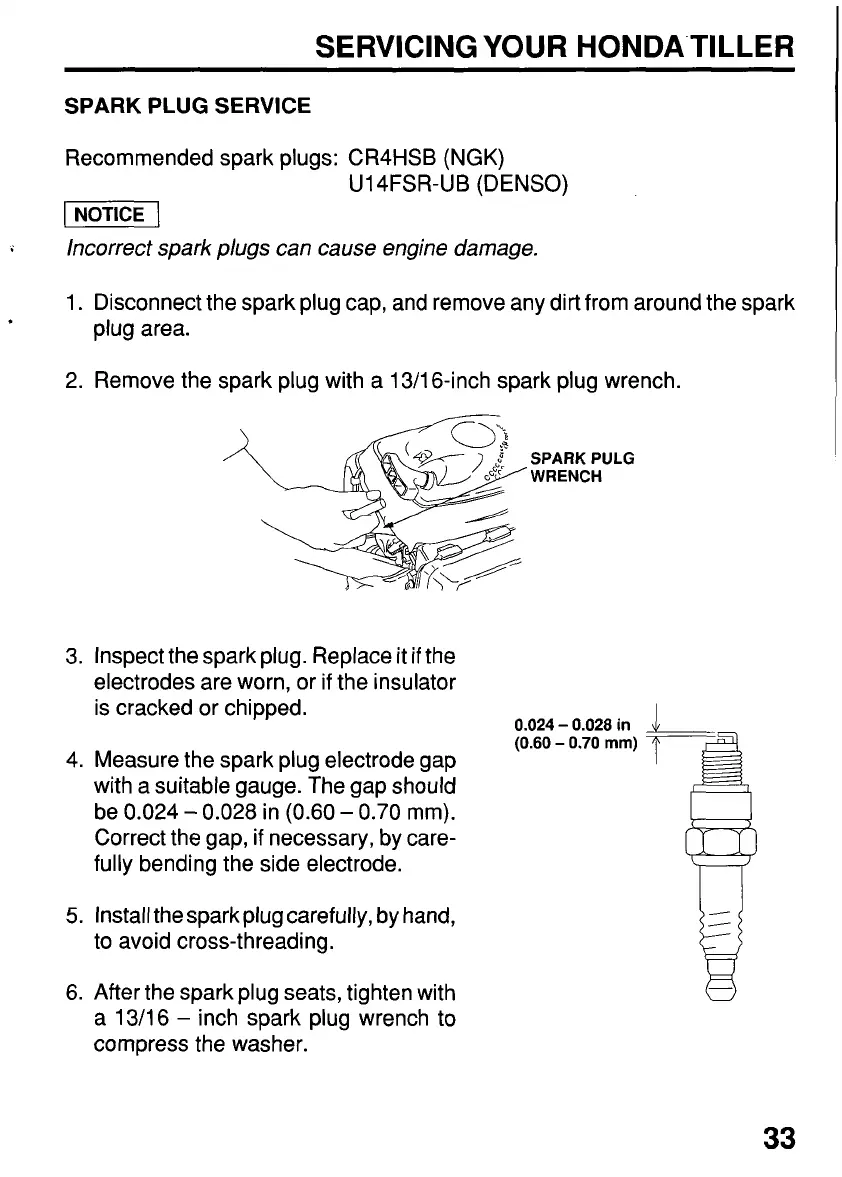

SERVICING YOUR HONDA'TILLER
SPARK PLUG SERVICE
Recommended spark plugs: CR4HSB
(NGK)
U14FSR-UB
(DENSO)
VI
;
Incorrect spark plugs can cause engine damage.
1. Disconnect the spark plug cap, and remove any dirt from around the spark
plug area.
2. Remove the spark plug with a 13/16-inch spark plug wrench.
SPARK
PULG
WRENCH
3. Inspect the spark plug. Replace it
if
the
electrodes are worn, or
if
the insulator
is cracked or chipped.
0.024
-
0.028
in
(0.60
-
0.70
mm)
4.
Measure the spark plug electrode gap
with a suitable gauge. The gap should
be 0.024
-
0.028
in
(0.60
-
0.70
mm).
Correct the gap,
if
necessary, by care-
fully bending the side electrode.
5.
Install the sparkplug carefully, by hand,
to avoid cross-threading.
6.
After the spark plug seats, tighten with
a 13/16
-
inch spark plug wrench to
compress the washer.
33
