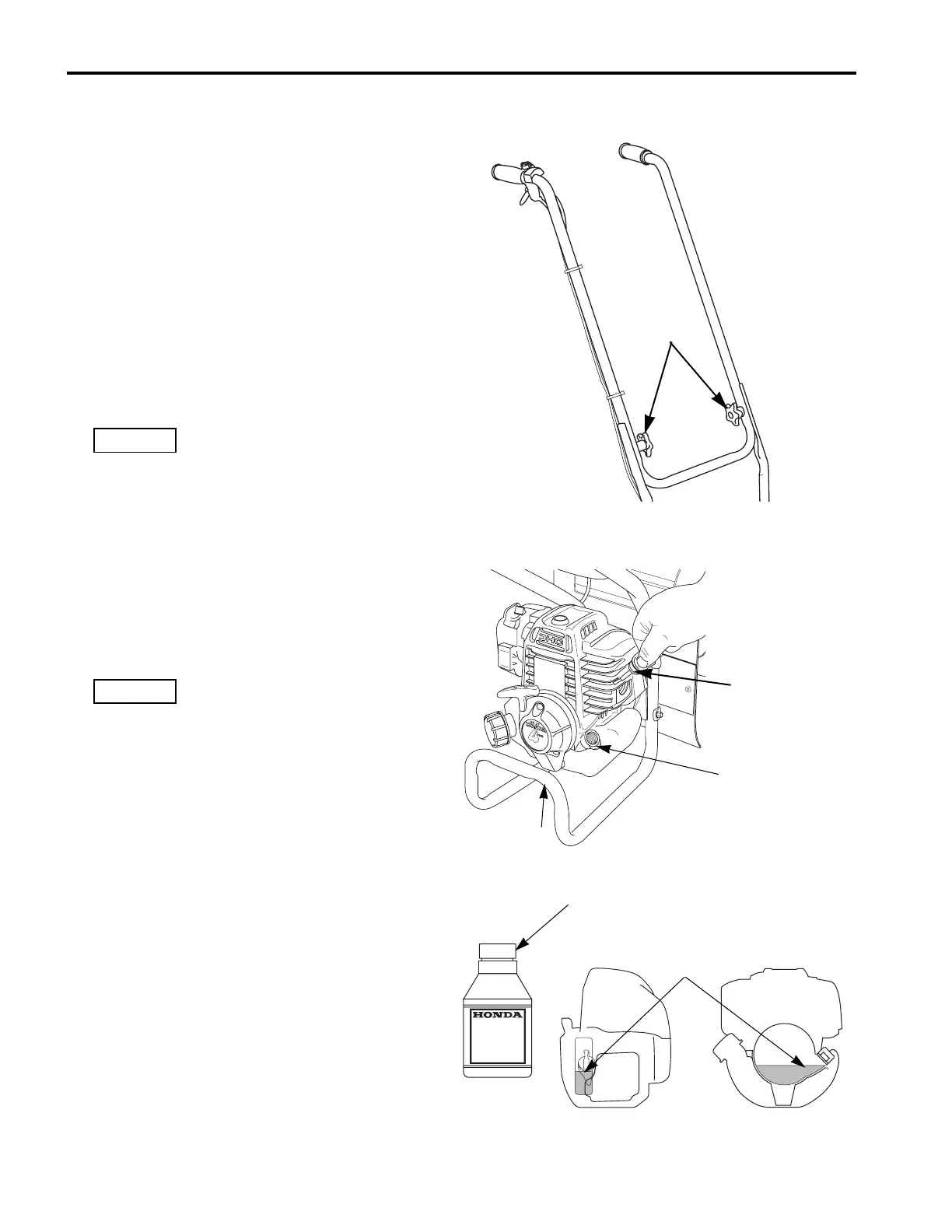

ASSEMBLY
UNPACKING
1. Carefully remove the tiller and loose parts bag
from the carton.
The loose parts bag contains this owner’s
manual, the drag bar, and a bottle of 10W-30 oil.
2. Unfold the tiller upper handle to the operating
position as shown. Be careful not to crimp or
pinch the engine switch wires and throttle cable.
3. Tighten the handle knobs to secure the handle
in the correct operating position.
ADDING OIL
NOTICE
The tiller is shipped from the factory with no oil
in the engine. Add oil from the bottle of oil
supplied with the tiller before attempting to start
the engine.
1. Working on a level surface, tip the tiller on its
carrying handlebar as shown.
2. Remove the oil filler cap/dipstick.
3. Slowly add the recommended oil (included in the
box) to the bottom edge of the oil fill hole. Do not
overfill, as the engine oil tank capacity is small.
NOTICE
Running the engine with too little or too much oil
can cause engine damage.
4. Screw in the oil filler cap/dipstick securely.
BEFORE OPERATION
Before using the tiller, all tiller operators must read
the following chapters and sections:
• TILLER SAFETY (see page 4).
• CONTROLS (see page 7).
• BEFORE OPERATION (see page 10).
• OPERATION (see page 12).
• MAINTENANCE SCHEDULE (see page 17).
HANDLE
KNOBS
Genuine Oil
10W30 SJ
SAE
Initial fill for the
Not for Resale
FG100 MINI-TILLER
OIL FILL
HOLE
OIL BOTTLE
(INCLUDED IN BOX)
OIL LEVEL
UPPER
LIMIT
CARRYING
HANDLEBAR
OIL FILLER
CAP/DIPSTICK

Honda FG110 Specifications

General

Tilling Width	9 inches
Weight	29 lbs
Fuel Type	Gasoline
Type	Mini-tiller
Tine Speed	200 RPM
Engine Type	4-stroke
Tilling Depth	6 inches
Fuel Tank Capacity	0.60 quarts
