STORAGE

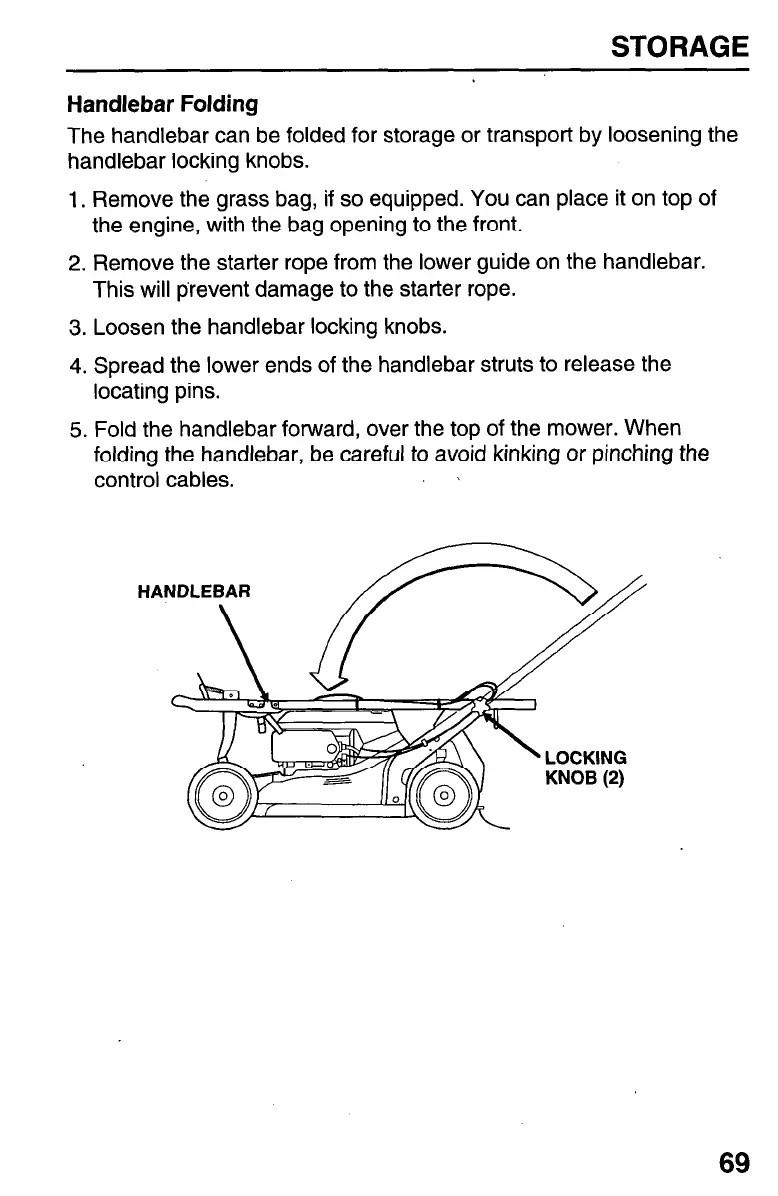

Handlebar Folding
The handlebar can be folded for storage or transport by loosening the
handlebar locking knobs.
1. Remove the grass bag, if so equipped. You can place it on top of
the engine, with the bag opening to the front.
2. Remove the starter rope from the lower guide on the handlebar.
This will prevent damage to the starter rope.
3. Loosen the handlebar locking knobs.
4. Spread the lower ends of the handlebar struts to release the
locating pins.
5. Fold the handlebar forward, over the top of the mower. When
folding the handlebar, be careful to avoid kinking or pinching the
control cables.
j
HANDLEBAR
69
