shown. Fit the two rubber caps (10) into the holes in the two
side elements (7).

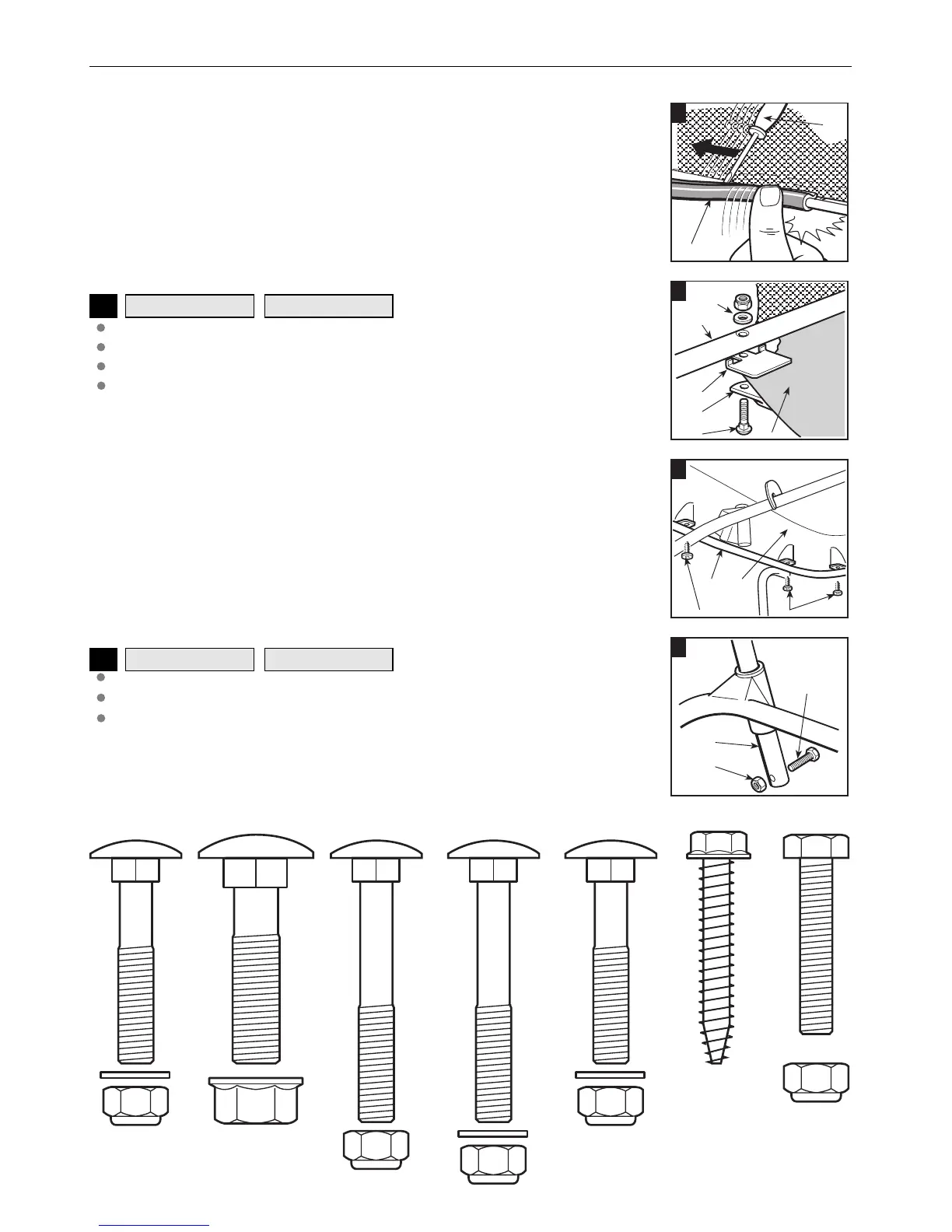

E) Insert the frame in the canvas cover (11) making sure it is
correctly positioned on the base perimeter. Hook the plastic
profiles (12) onto the frame tubes with the aid of a screw-dri-
ver (13).
F) Place the plate (14) between the canvas and the lower
part of the frame’s right side element (7a), lining up the
holes.
F) Attach the stiffening bar (15) under the frame with screws
and nuts (16) keeping the flat part turned towards the can-
vas.
G) Using the six screws (18), attach the cover (17) to the
frame’s upper part (1).
H) Insert the emptying lever (19) in its position and put in
the limit stop screw (20) with its nut (21).
HF2•••HMEHF2•••SBE
➤
HF2•••HMEHF2•••SBE
➤
EN 14 UNPACKING AND ASSEMBLY
