14.3 Rear roller
a. Removal / Installation
Wear heavy gloves to protect your hand when servicing near the blade.
NOTE:
The rear roller servicing can be done with the engine on the cutter housing.
1. Drain the fuel from the fuel tank and carburetor, and drain the engine oil.
2. Disconnect the drive clutch cable.
3. Remove the6x32mmflange screw, washer, collar and drive cover.
4. Tilt the mower upside down.
NOTE:
Rest the handle on a support to prevent damage to the recoil starter cover and fuel
tank.

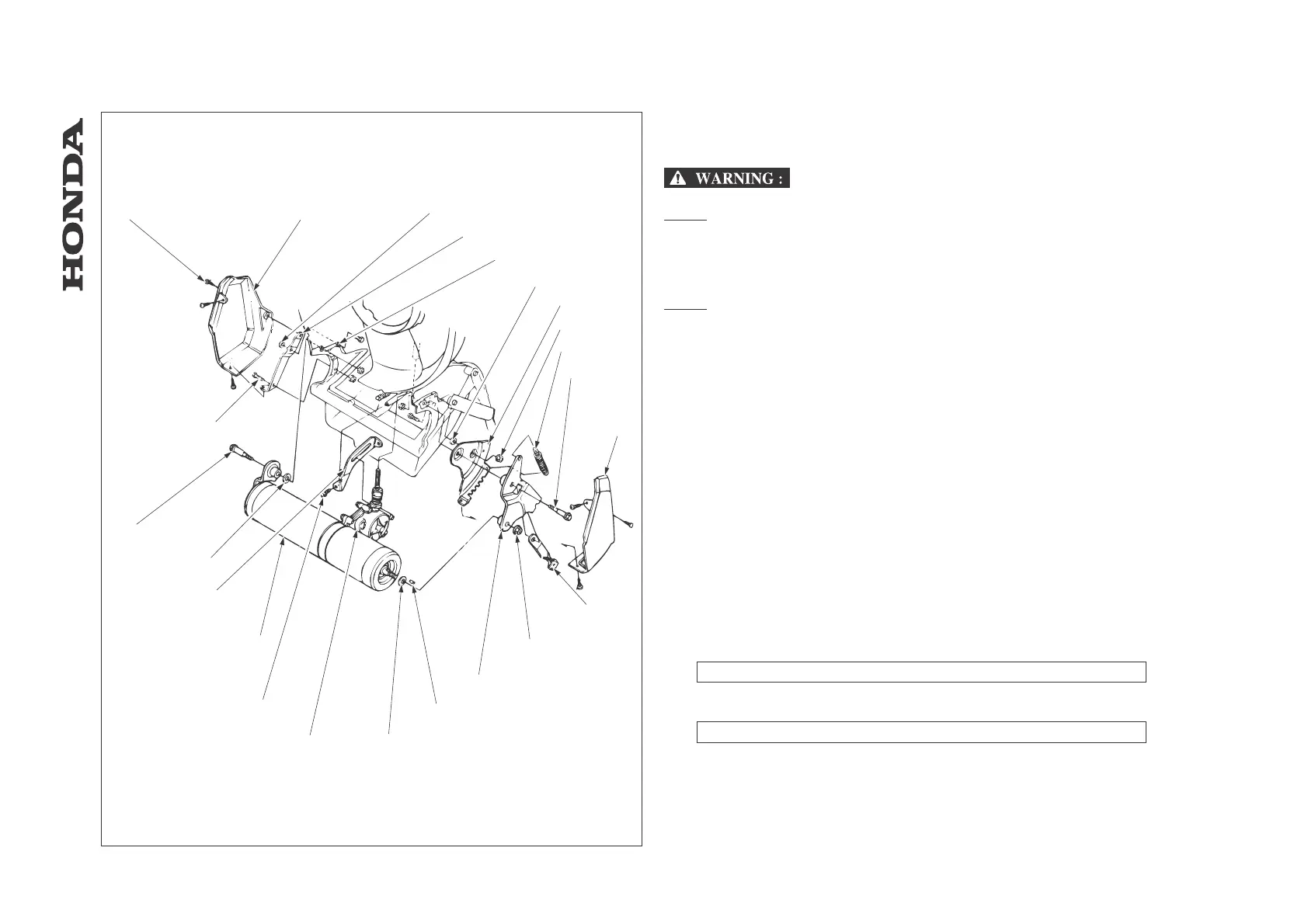

[1] TAPPING SCREW,5x12mm(6)
[2] RIGHT SIDE COVER
[3] FLANGE NUT, 8 mm (2)
[4] RIGHT SIDE COVER BRACKET
[5] SELF-LOCKING NUT, 8 mm
[6] COLLAR
[7] ADJUSTER PANEL
[8] FLANGE NUT, 6 mm
[9] REAR BALANCE SPRING
[10] ADJUSTER ARM SCREW
[11] LEFT SIDE COVER
[12] ADJUSTER LEVER
[13] SELF-LOCKING NUT, 10 mm
[14] ADJUSTER ARM
[15] FLAT KEY
[16] AXLE SHAFT WASHER
[17] TRANSMISSION ASSEMBLY
REASSEMBLY / DISASSEMBLY: ch. 14.1
[18] SCREW,6x12mm(2)
[19] ROLLER
DISASSEMBLY / REASSEMBLY: ch. 14.1
[20] TRANSMISSION MOUNT GUIDE
[21] THRUST WASHER, 8 mm
[22] ADJUSTER ARM SCREW
[23] SCREW,6x14mm(2)
- 101 -
HRA536 - HRD535 - HRD536
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
- REAR DRIVE SYSTEM
