Honda HRD536 User Manual

[17]
EXTERNAL SNAP RING, 28 mm (2)
[18] OIL SEAL, 28 x 38x6mm(2)
[19] SCREW,6x32mm(2)
[20] CASE PROTECTOR
[21] FLANGE NUT, 6 mm (2)
[22] RIGHT TRANSMISSION CASE
[23] THRUST WASHER, 28 mm
[24] DRIVE CHAIN
[25] DRIVEN SPROCKET
[26] DRIVEN CLUTCH FORK
REASSEMBLY: Check the claws for wear.
[27] ROLLER BEARING, 15 x 21 x 16 mm (2)
[28] DUST SEAL, 15 x 21x3mm(2)
[29] PAN SCREW,5x20mm
[30] CLUTCH ARM
REASSEMBLY: Align the punch mark on the arm with the aligning mark on the driven
clutch fork.
[30]-1 ALIGNING MARK
[30]-2 PUNCH MARK
[31] HEX. NUT, 5 mm
[32] OIL SEAL, 10 x 17x4mm
- 104 -

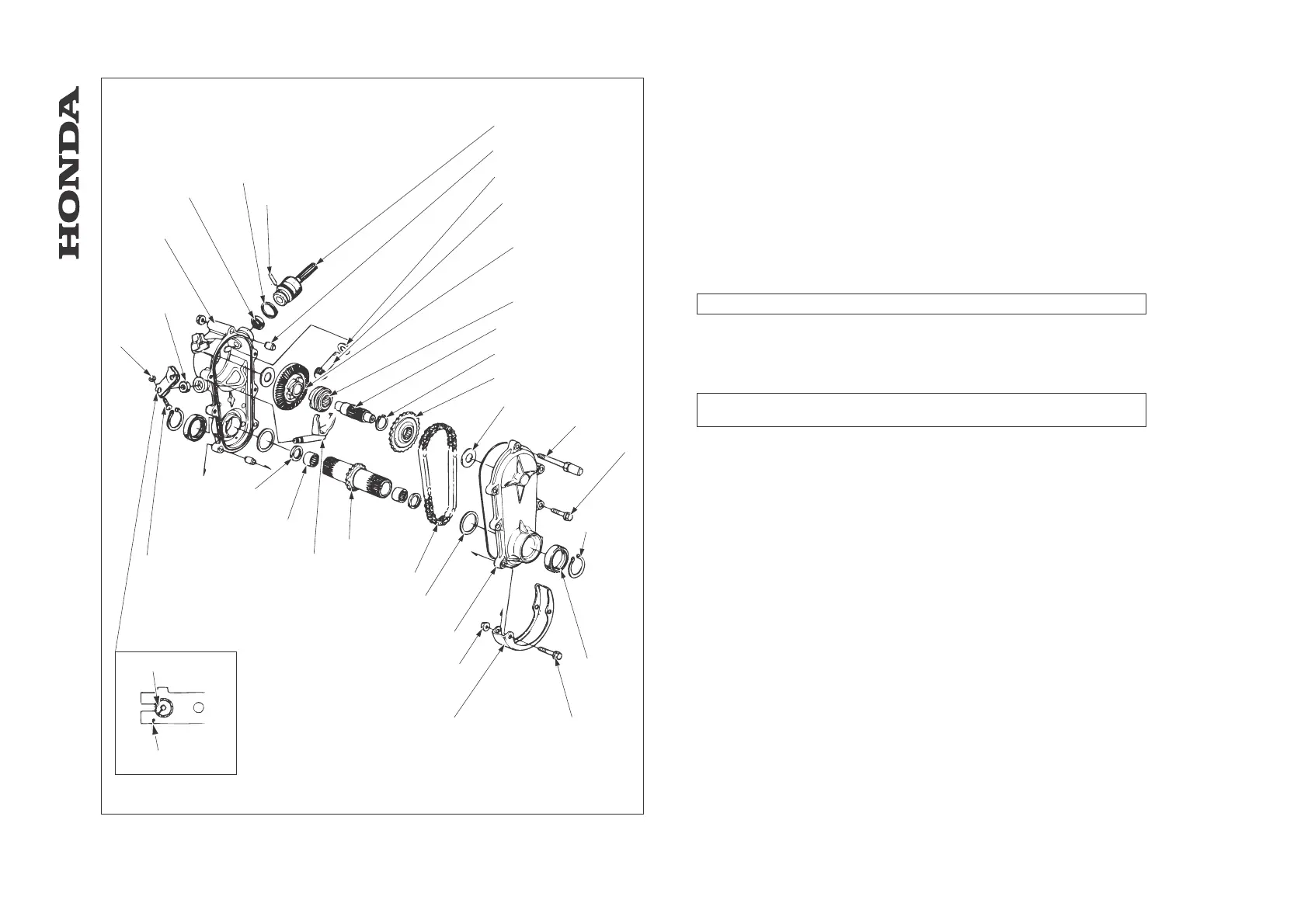

HRA536 - HRD535 - HRD536
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16
]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[30]
[32]
[31]
[30]-1
[30]-2
- REAR DRIVE SYSTEM

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
