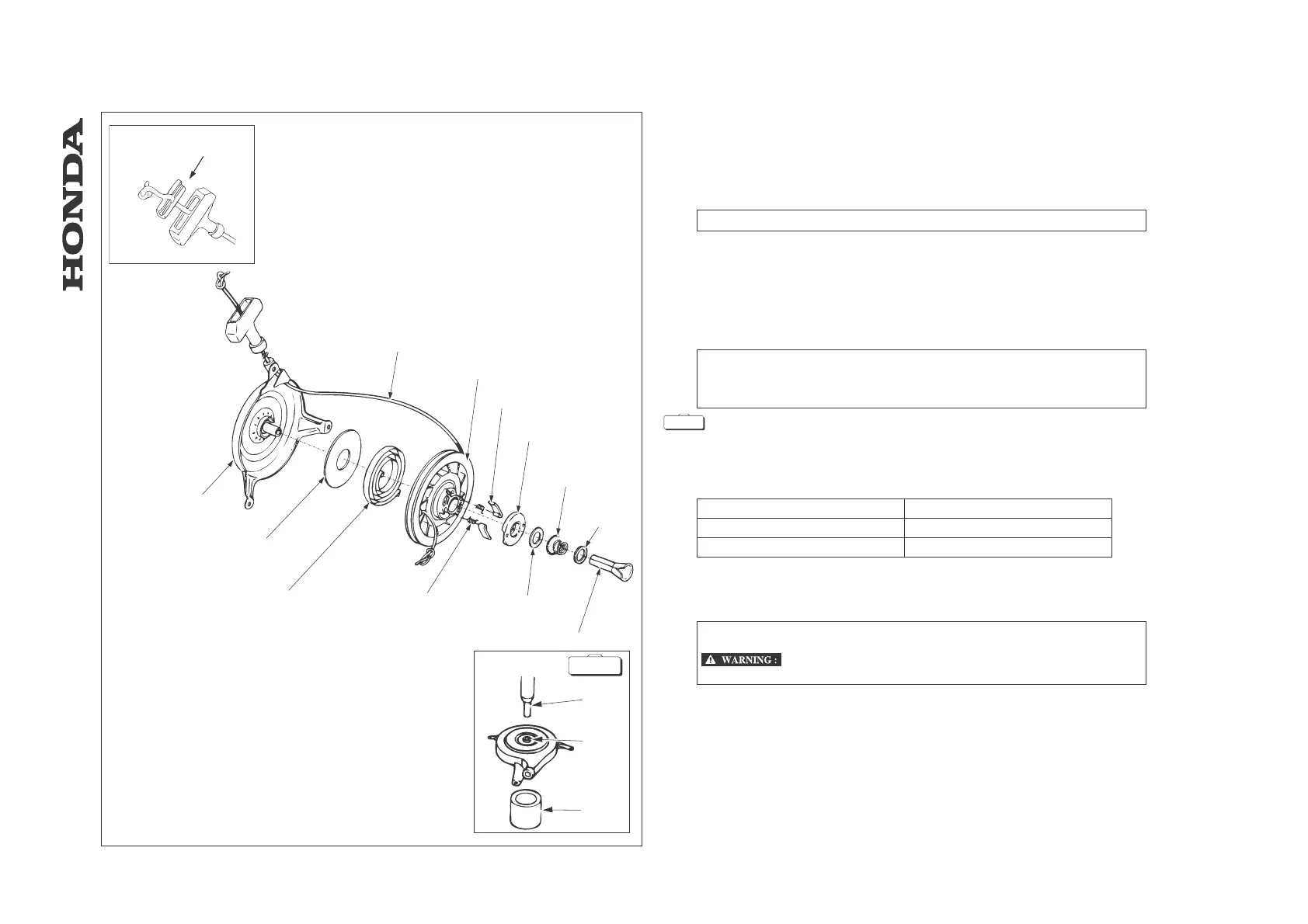

7.2 Recoil starter
a. Disassembly
[1] RECOIL STARTER ROPE
REASSEMBLY: Check the rope for fraying or wearing before installation.
[2] STARTER REEL
[3] RATCHET (2)
[4] REEL COVER
[5] FRICTION SPRING
[6] WASHER (STEEL)
[7] STARTER PIN
DISASSEMBLY: Place the reel cover on a base (shown below) securely, drive out the
starter pin using the pin driver as shown.
CAUTION:
• Take care not to damage the starter case and starter reel.
[7]-1 PIN DRIVER, 5 mm ..................................................07744-0010500
[7]-2 STARTER PIN
[7]-3 BASE
O.D. 35 - 40 mm
I.D. 20 - 30 mm
Height 30 mm or more
[8] WASHER (RESIN)
[9] RATCHET SPRING (2)
[10] RETURN SPRING
DISASSEMBLY: Be careful not to allow the spring to jump out. Release the spring
preload before removing the starter reel from the recoil starter case.
Wear heavy gloves to protect your hands.
[11] RETURN SPRING BASE COVER
[12] STARTER CASE
[13] STARTER ROPE HOLDER
-49-
HRA536 - HRD535 - HRD536
HRA536
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[7]-1
[7]-2
[7]-3
[8]
[9]
[10]
[11]
[12]
[13]
HRD535/K1/K2
HRD536/K1/K2
S.TOOL
- RECOIL STARTER / FUEL TANK
