Honda HRD536 User Manual

b. HRD535K1/K2: 8106640 ~
HRD536K1/K2: 8107480 ~

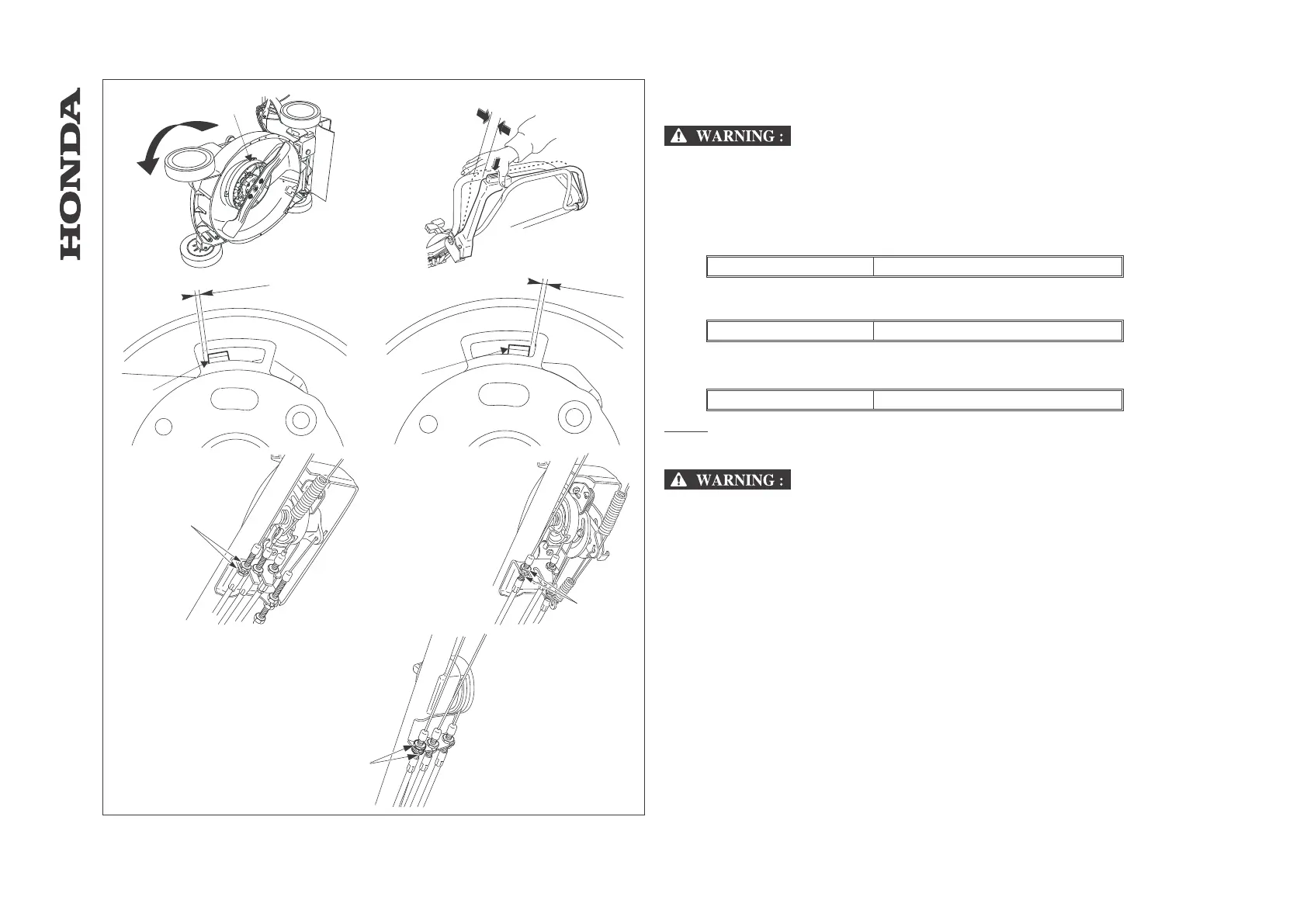

Do not turn the lawnmower over.
1. Switch the engine off and remove the spark plug cap.
2. Put the throttle to stop, close the fuel cock and drain the carburetor.
3. Put the lawnmower on its side so that the carburetor is facing upwards.
4. With the Rotostop lever released [1-1], measure the distance between the stop [2] and
the left-hand edge of the light.
Distance [1-1]
5. With the Rotostop lever engaged [1-2], measure the distance between the stop [2] and
the right-hand edge of the light.
Distance [1-2]
6. If necessary, adjust the cable using the adjusting nuts [3].
7. Once the adjustment is complete, check the play on the Rotostop lever [4].
Play at lever [4] 5 to 10 mm
NOTE: If the measurements specified above cannot be achieved by adjustment, please
refer to chapter , “Inspecting the Rotostop” (See ch. 4.3).
A poorly adjusted cable can be dangerous.
•
if the cable is too taut, the blade might not stop and the cable could snap.
• If the cable is too slack, the clutch might slip and the brake and the clutch could
clash.
-26-
HRA536 - HRD535 - HRD536
- MAINTENANCE
[4]
[1-1]
[2]
[1]
[1-2]
[2]
[3]
HRD535K1 TME
[3]
HRD536K1 HXE-HME
[3]
HRD535K1 QXE-QME
≥ 0,5 mm
≥ 1,5 mm
≥ 0,5 mm
≥ 1,5 mm

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
