b. HRD535K1: 8106640 ~ , HRD536K1: 8107479 ~ - HRD535K2 - HRD536K2
When you refit the engine, make sure you don’t lose or forget the studs [7].
[1] LEFT-HAND GUARD
[2] RETURN SPRING
[3] CUTTER HOUSING COVER
[4] ENGINE FIXING SCREW,8x60mm(4)
TIGHTENING TORQUE: 22 N.m WRENCH SIZE: 12 mm
[5] WASHER,8x2x23mm(2)
[6] ENGINE
HRA536 - HRD536/K1/K2:
GCV160
HRD535/K1/K2:
GXV140
[7] ENGINE MOUNTING STUD (4)
HRA536
HRD536/K1/K2
HRD535/K1/K2
THICKNESS
3.5 mm 5.5 mm
[8] ADIABATIC BUSH (4)
[9] ROTOSTOP CABLE BRACKET
[10] WASHER HEAD SCREW, 20 mm M6 (1)
TIGHTENING TORQUE: 22 N.m WRENCH SIZE: 10 mm
[11] WASHER HEAD SCREW, 14 mm M6 (1)
TIGHTENING TORQUE: 22 N.m WRENCH SIZE: 10 mm
-44-
HRA536 - HRD535 - HRD536

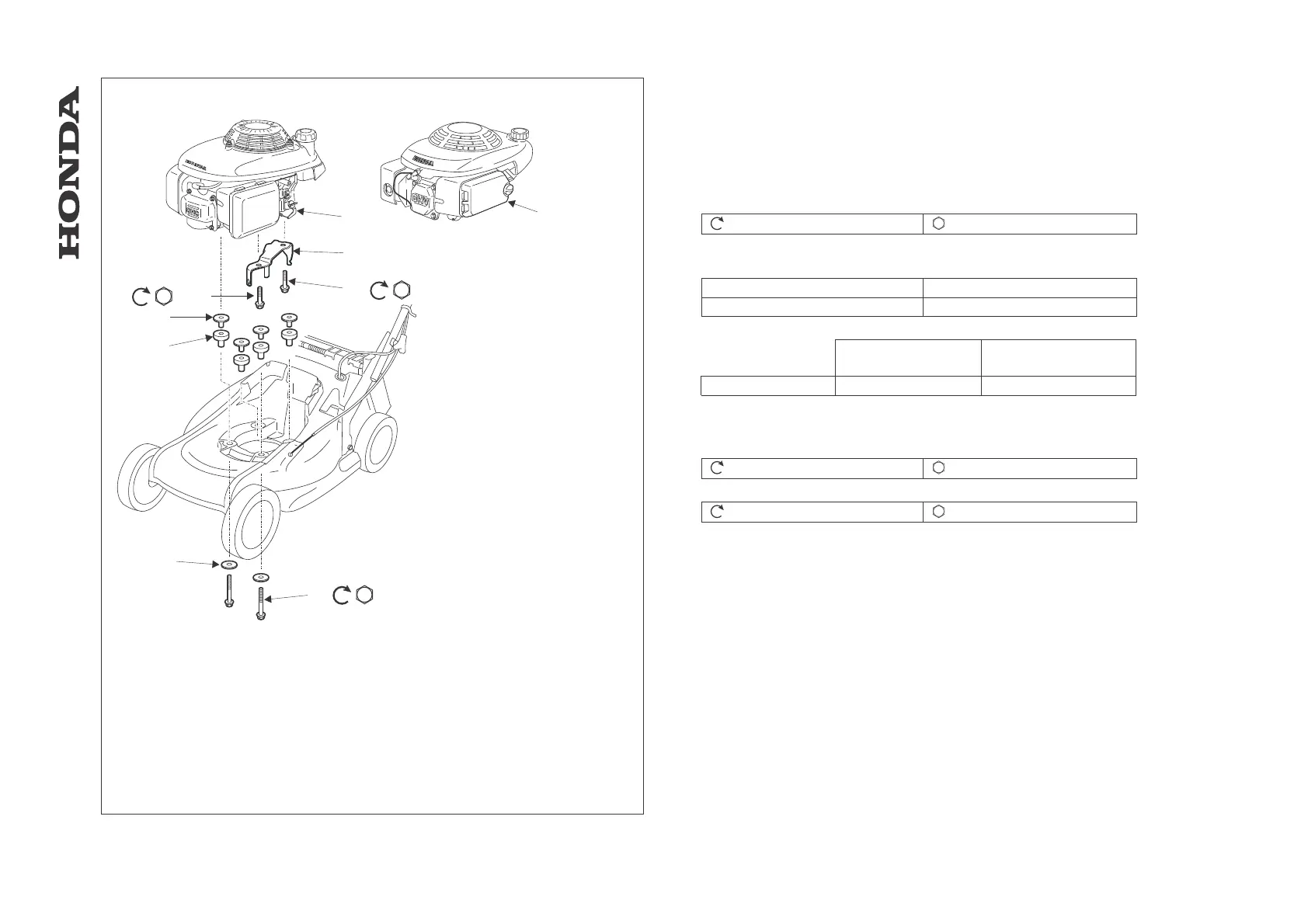

- ENGINE REMOVAL / INSTALLATION
HRD536K1/K2
8107479 ~
HRD535K1/K
2
8106640 ~
[6]
[6]
[9]
[10]
[11]
[7]
[8]
[5]
[4]
10
10
22
22
12
22

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
