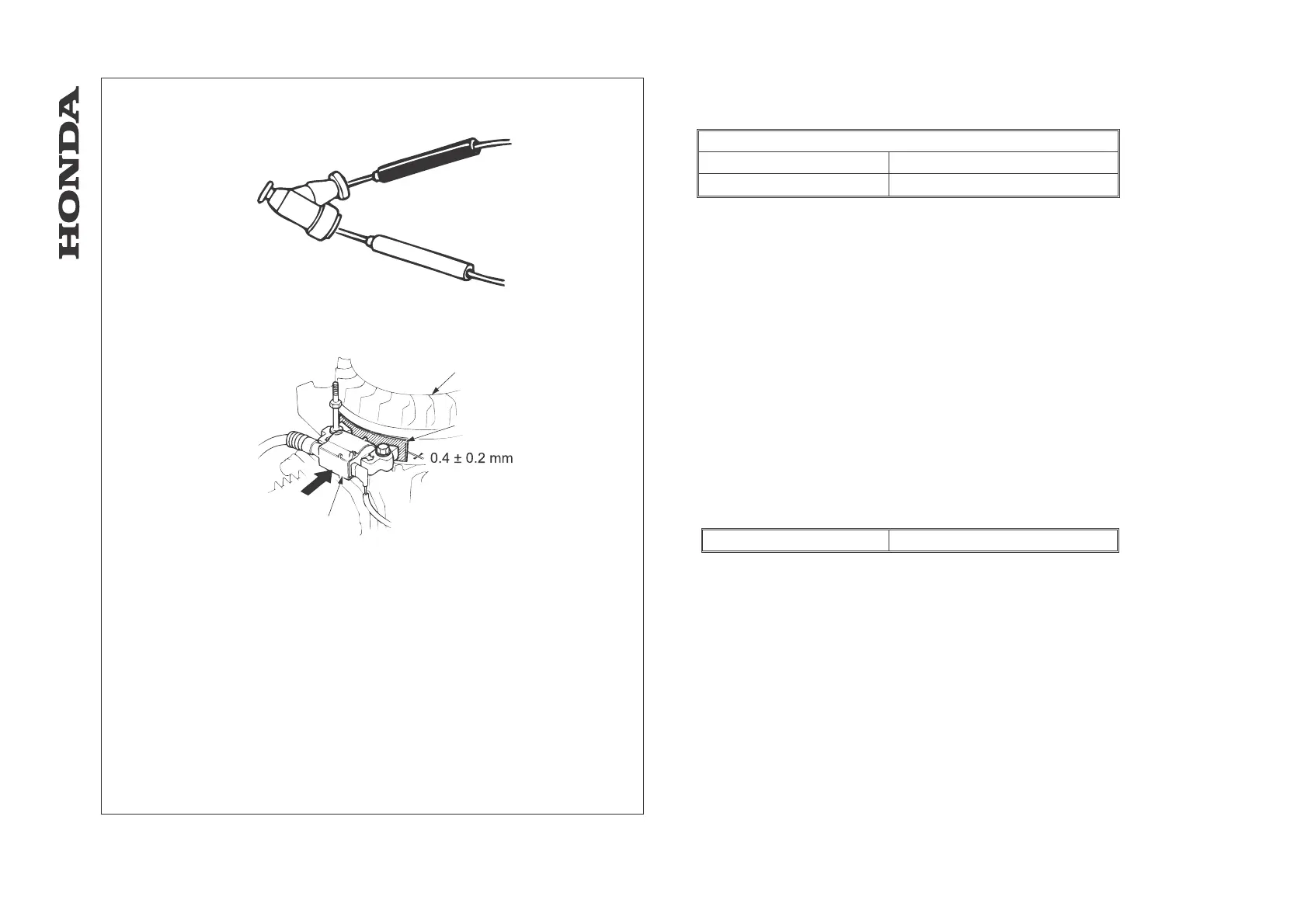

SPARK PLUG CAP
Measure the resistance of the spark plug cap.
Standard resistance value
HRA536 - HRD536/K1/K2
4-5kΩ
HRD535/K1/K2
0.2 Ω
c. Adjustment
IGNITION COIL AIR GAP
Adjustment is required only when the ignition coil or the flywheel has been removed.
1. Loosen the screw and stud bolt of the ignition coil.
2. Insert a long thickness gauge or piece of paper of the proper thickness between the
ignition coil and flywheel. Both gaps should be adjusted simultaneously. Avoid the
magnet part of the flywheel when adjusting.
3. Push the ignition coil firmly toward the flywheel and tighten the screw and the stud bolt.
Specified clearance 0.2 - 0.6 mm
[1] GAUGE
[2] IGNITION COIL
[3] FLYWHEEL
-54-
HRA536 - HRD535 - HRD536
[2]
[3]
[1]
- IGNITION COIL / CONTROL ARM / CARBURETOR

Honda HRD536 Specifications

General

Engine	Honda GCV160
Engine Displacement	160 cc
Engine Type	4-stroke
Engine Displacement (Alternative)	0.16 litres
Cutting Height Adjustment	Single lever
