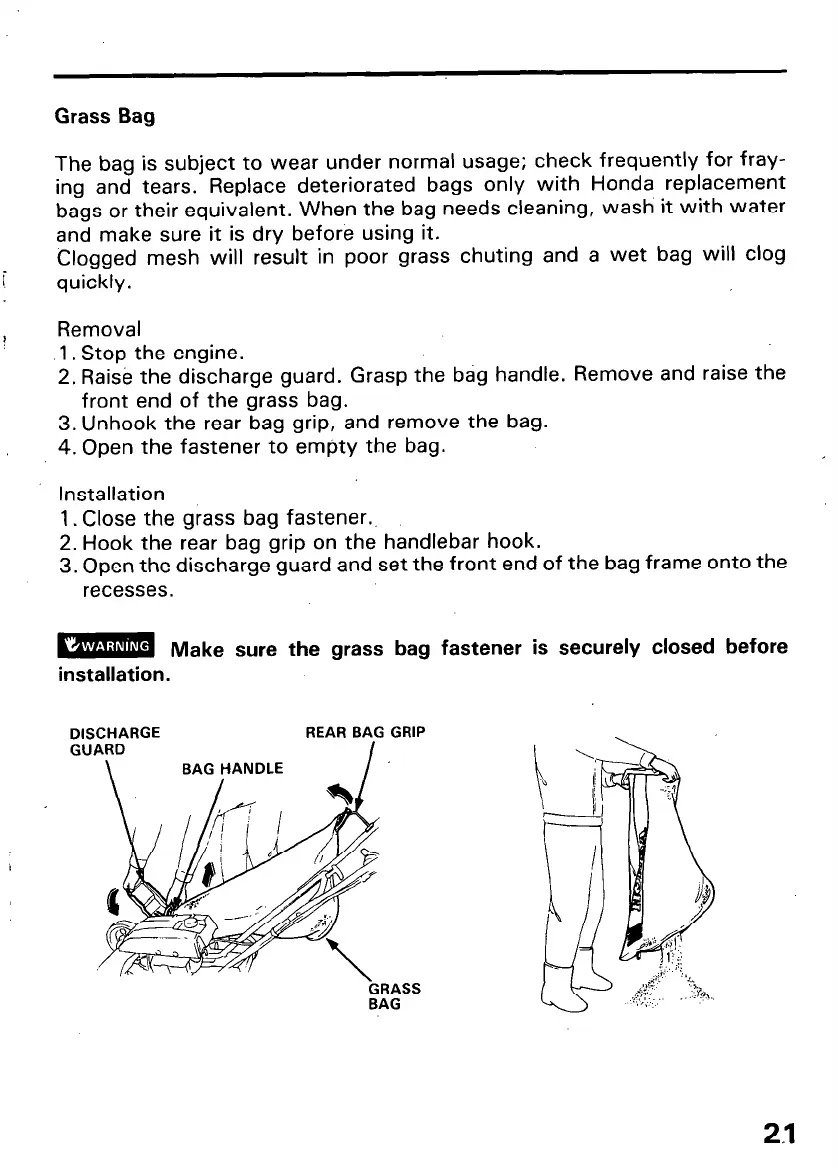

Grass Bag
The bag is subject to wear under normal usage; check frequently for fray-
ing and tears. Replace deteriorated bags only with Honda replacement
bags or their equivalent. When the bag needs cleaning, wash it with water
and make sure it is dry before using it.
Clogged mesh will result in poor grass chuting and a wet bag will clog
i
quickly.
!
Removal
1. Stop the engine.
2. Raise the discharge guard. Grasp the bag handle. Remove and raise the
front end of the grass bag.
3. Unhook the rear bag grip, and remove the bag.
4. Open the fastener to empty the bag.
Installation
1. Close the grass bag fastener.,
2. Hook the rear bag grip on the handlebar hook.
3. Open the discharge guard and set the front end of the bag frame onto the
recesses.
cwm
Make sure the grass bag fastener is securely closed before
installation.
DISCHARGE
REAR BAG GRIP
GUARD
\
BAG HANDLE
‘GRASS
BAG
2.1
