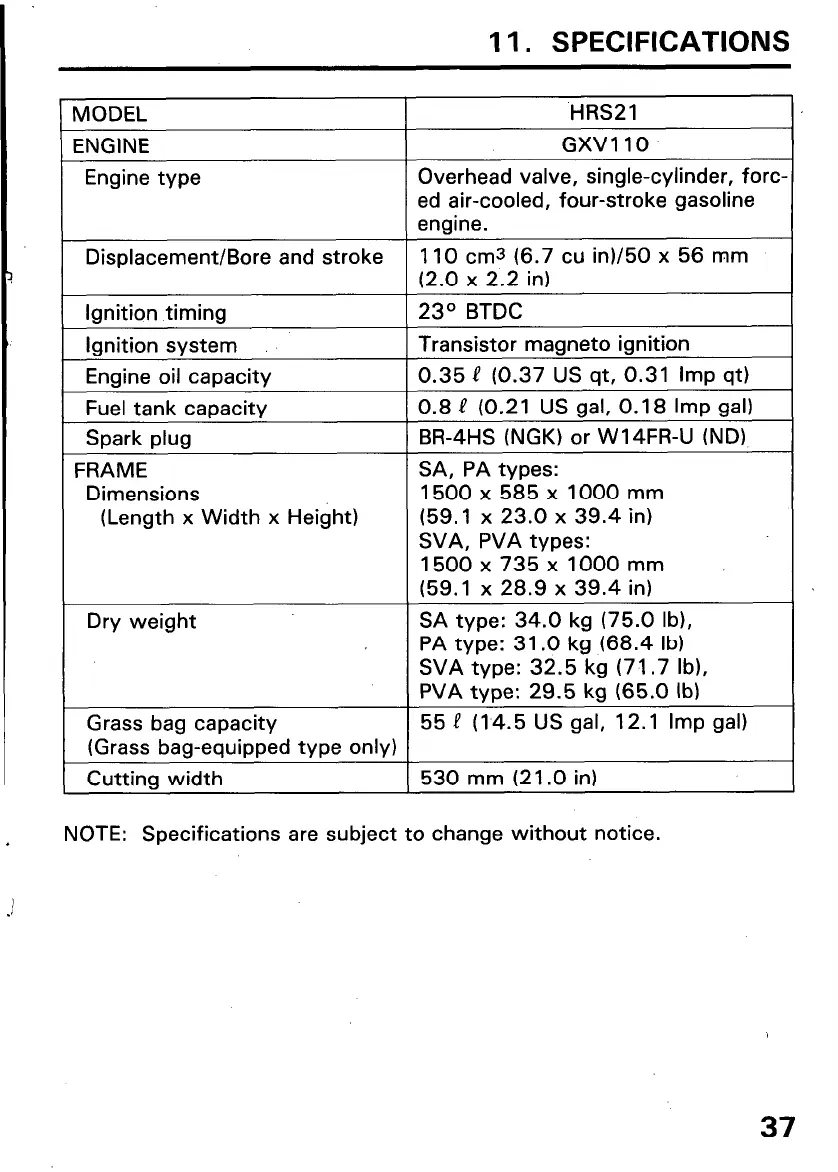

11. SPECIFICATIONS
MODEL
ENGINE
Engine type
HRS21
GXVllO.
Overhead valve, single-cylinder, forc-
ed air-cooled, four-stroke gasoline
engine.
Displacement/Bore and stroke
110 cm3 (6.7 cu in)/50 x 56 mm
(2.0 x 2.2 in)
Ignition timing
23O BTDC
Ignition system
Transistor magneto ignition
Engine oil capacity
0.35 0 (0.37 US qt, 0.31 Imp qt)
Fuel tank capacity
0.8 P (0.21 US gal, 0.18 Imp gal)
Spark plug
BR-4HS (NGK) or W 14FR-U (ND)
FRAME
SA, PA types:
Dimensions
1500x585xlOOOmm
(Length x Width x Height)
(59.1 x 23.0 x 39.4 in)
SVA, PVA types:
1500 x 735 x 1000 mm
(59.1 x 28.9 x 39.4 in)
Dry weight
SA type: 34.0 kg (75.0 lb),
PA type: 31 .O kg (68.4 lb)
SVA type: 32.5 kg (71.7 lb),
PVA type: 29.5 kg (65.0 lb)
Grass bag capacity
55 P (14.5 US gal, 12.1 Imp gal)
(Grass bag-equipped type only)
Cutting width
530 mm (21 .O in)
NOTE: Specifications are subject to change without notice.
37
