4
ENGLISH
SET-UP
UNPACKING
Remove all the cardboard from around the handlebar.

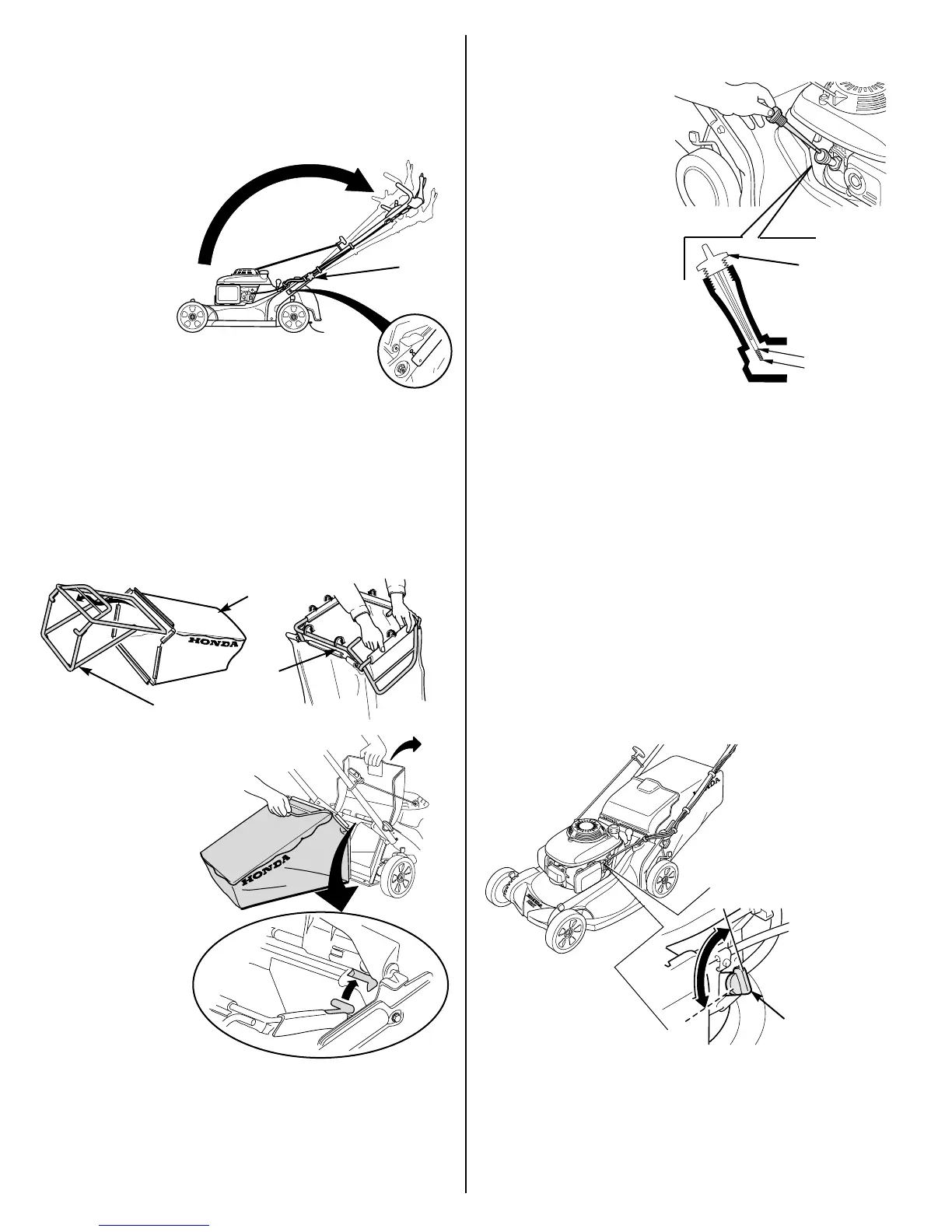

HANDLEBAR SETUP
1. Loosen the two
knobs [1] on the
lower handlebar
enough to raise
the handlebar into
the mowing
position.
2. Select a desired
handlebar height
adjustment
position and
tighten the knobs
securely.
BATTERY (HMEA TYPE)
The mower is shipped with the battery disconnected. The battery is
shipped with a partial charge and should be charged for 20-24 hours
before use. Refer to page 19 for charging instructions.
Install the key in the key switch.
GRASS BAG ASSEMBLY
Slide the grass bag frame [1] into the grass bag [2] and install the
plastic clips [3] as shown.
Lift the discharge guard
and install the grass
bag.
ENGINE OIL
The mower is shipped
WITHOUT OIL in the engine.
Add enough SAE 10W-30
API service category SJ or
later oil to bring the oil level
between the upper limit [2]
and lower limit [3] marks on
the dipstick [1] as shown.
Do not overfill the engine
with oil. If the engine is
overfilled, the excess oil may
get transferred to the air
cleaner housing and air filter.
FUEL
Refer to page 6.
BEFORE USING YOUR LAWN MOWER
Before using the lawn mower, all mower operators must read the
following chapters:
• SAFETY INSTRUCTIONS (page 2)
•CONTROLS (page 4)
• PRE-OPERATION CHECKS (page 6)
• OPERATION (page 9)
• MAINTENANCE SCHEDULE (page 15)
CONTROLS
Fuel Valve
The fuel valve [1] opens and closes the connection between the fuel
tank and the carburetor.
[1](2)
[2]
[3]
[1]
[1]
[2]
[3]
OFF
ON
[1]
HXE.book Page 4 Monday, August 6, 2007 10:44 AM
