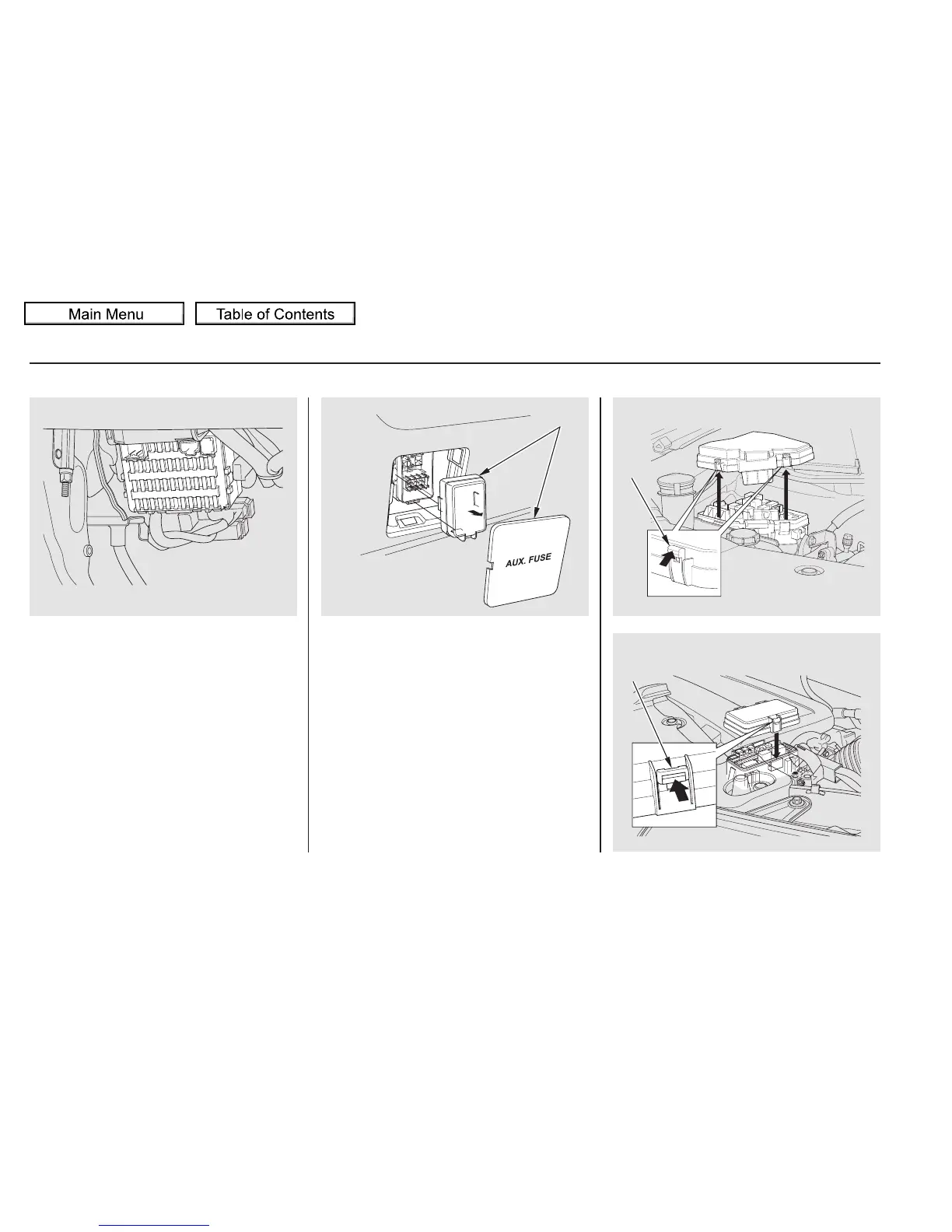

The vehicle’s fuses are located in
four fuse boxes.
The interior fuse box is underneath
the dashboard on the driver’s side.
Therearfuseboxislocatedatthe
left side of cargo area.
To open it, push the tabs as shown.
The primary under-hood fuse box is
locatedonthepassengersside.The
secondary fuse box is located next to
the battery.
Fuses
524
UNDER-HOOD (SECONDARY)
UNDER-HOOD (PRIMARY)
LID
TAB
TAB
REAR
