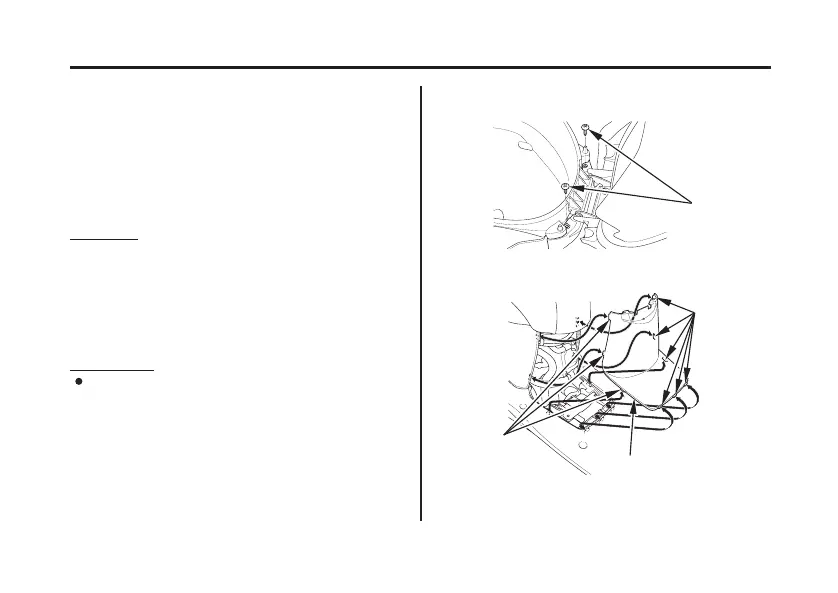

(3) maintenance lid(1) screws
(2) tabs
UNDER SEAT
UNDER STEPBOARD
88
Maintenance Lid Removal
Servicing Your Honda
Safety PrecautionsRefer to on page .
Removal
Open the seat (page ).
Release the tabs ( ), then remove the
maintenance lid ( ).
Remove the screws ( ).
Installation
Installation can be done in the reverse
order of removal.
The maintenance lid must be removed to
service the spark plug, main fuse and
battery.
1.
2.
23.
3
1
72
28
