MOUNTING
The Media Air Cleaner mounts in any position within the return air duct, usually next to the furnace blower
compartment, but the arrow on the cartridge must point in the same direction as the airow. See Figs. 1-8 for
proper location of the media air cleaner for a variety of furnace installations.
NOTE:
The media air cleaner cabinet is sturdy enough to easily support the weight of the furnace and evaporator
coil.
M939C
M940C
Choosing a Mounting Position
Before beginning Mounting:
I have chosen an installation location that meets the requirements on pages 5 through 6.

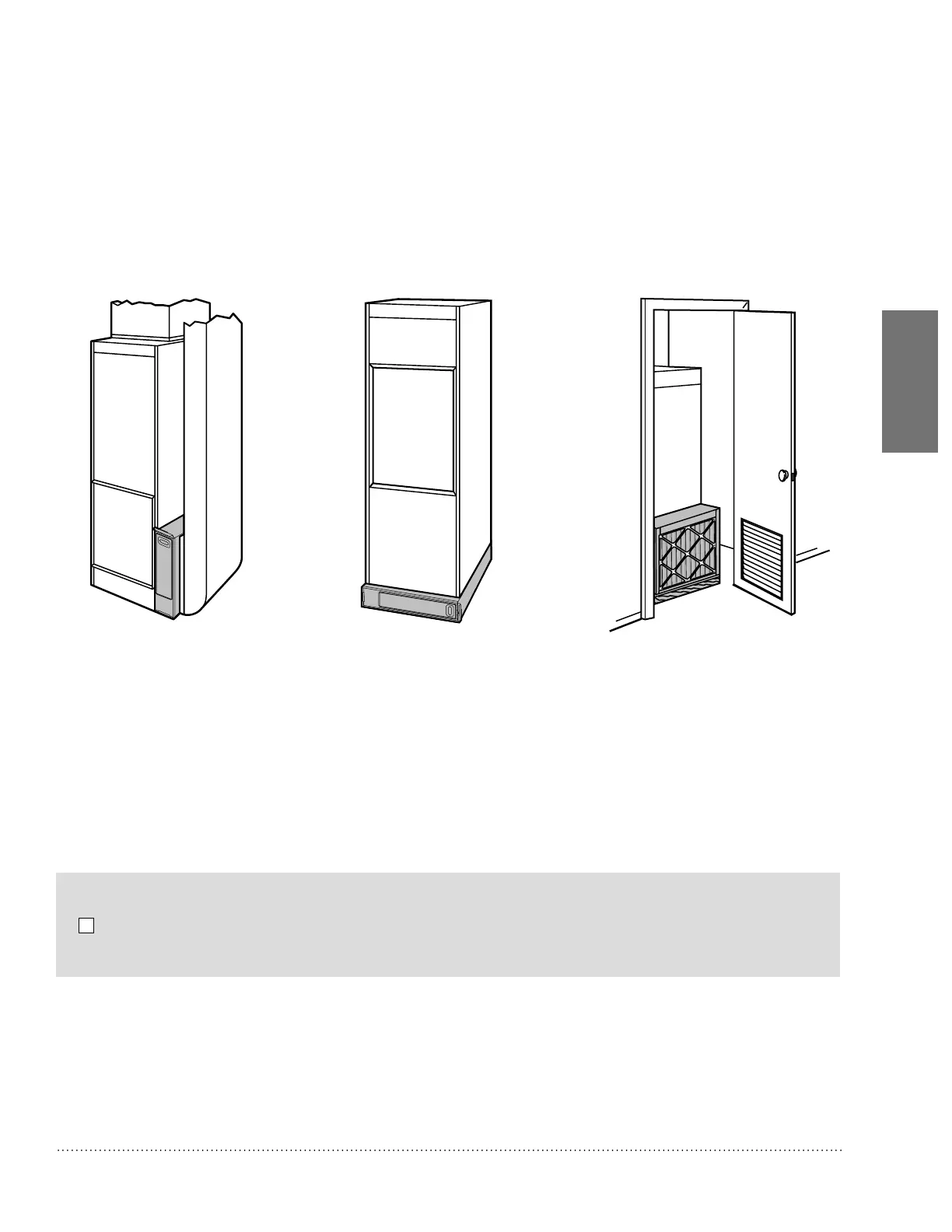

Fig. 1. Highboy furnace with side
installation. Media air lter is
mounted vertically where return
enters side inlet of furnace.
Fig 2. Highboy furnace, with
installation beneath furnace.
Media air cleaner is mounted
horizontally where return
enters from below.
M941A
Fig. 3. Highboy furnace, with closet
installation. Media air
cleaner is mounted vertically on
furnace between furnace and
louvered return air opening in closet
door.
Honeywell Media Air Cleaner 68-0239EF—11 5
