Installation Guide
69-2200—03 2
INSTALLATION
Mount the HZ221 TrueZONE
panel near the HVAC equip-
ment; locate it on a wall,
stud, roof truss, or cold-air
return.
NOTE: The HZ221
TrueZONE panel can be
mounted in any orientation;
level it for appearance only.

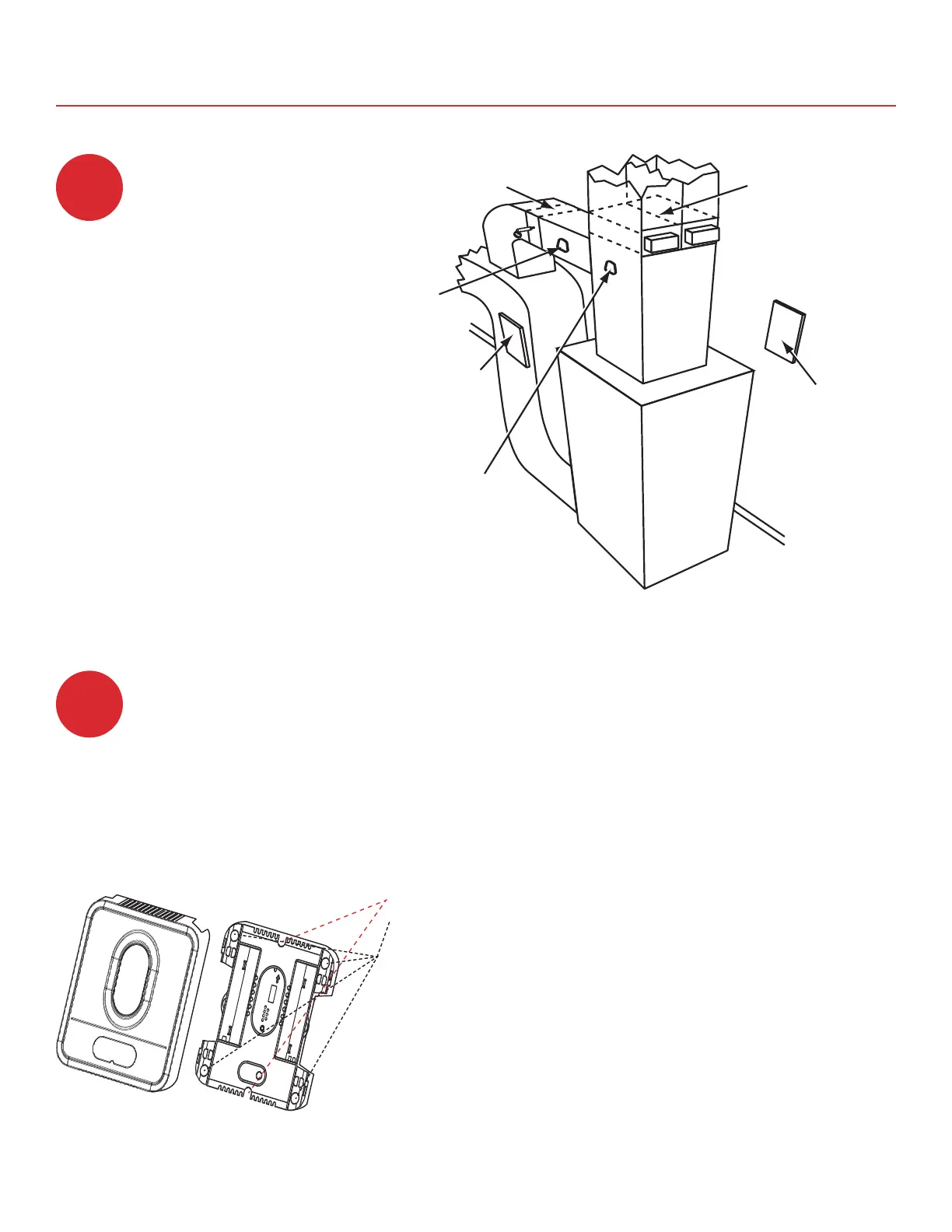

1
SUPPLY
DUCT
DATS
(AT LEAST 3 FT
FROM PLENUM)
DATS
(ALTERNATE
LOCATION)
ueZONE PANEL
MOUNTED ON
RETURN DUCT
TrueZONE PANEL
MOUNTED ON W
ZD SERIES
ZONE DAMPERS
CPRD BYPASS
DAMPER
FURNACE OR
AIR CONDITIONER
M24738
Separate the zone panel cover from the base, and use the base as a template to drill mounting holes.
Attach the base to the wall, stud, roof truss, or duct with appropriate screws (not included).
2
Use two screws for attaching to a stud or roof truss, or
four screws for duct or drywall/plaster installations.
