Honeywell Home HZ311 TrueZONE User Manual

Installation Guide • Guide d’installation • Guía de instalación
69-2069EFS—03 2

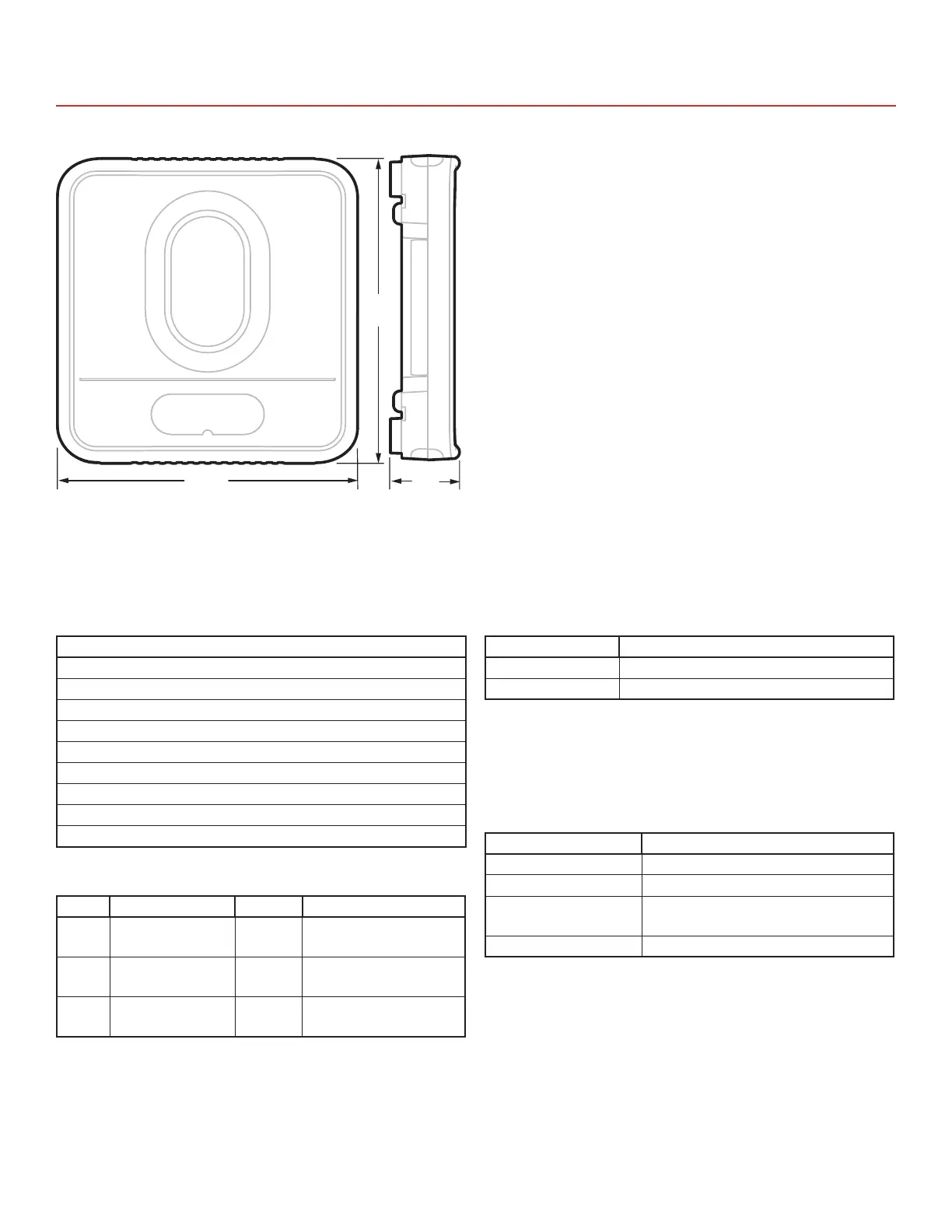

HZ311 TrueZONE panel dimensions in in. (mm).
Encombrement du tableau de régulation par
zones TrueZONE HZ311 en po (mm).
Dimensiones del panel de zona TrueZONE
HZ311 en pulgadas (mm).
SPECIFICATIONS AND ACCESSORIES
RECOMMENDED THERMOSTATS, DAMPERS, AND ACCESSORIES
The following are suggested thermostats, dampers, and accessories for use with the TrueZONE panel.
Table 1. Recommended Thermostats.
Compatible Thermostats
TH1110D2009 (Non-programmable)
TH4110U2005 (Programmable or non-programmable)
TH6210U2001 (Programmable or non-programmable)
TH6220U2000 (Programmable or non-programmable)
TH6320U2008 (Programmable or non-programmable)
TH6220WF2006 (WiFi)
TH6320WF2003 (WiFi)
TH8321WF1001 (WiFi)
THX321WFS2001W (WiFi)
Table 2. Recommended Dampers.
Type Resideo Damper Round Rectangular
Zone SpringOpen/
PowerClosed
ARD ZD
Zone PowerOpen/
PowerClosed
MARD/
RRD
—
Bypass Constant Pressure
Regulating Damper
CPRD —
Table 3. Maximum Dampers.*
Ambient Temp. Maximum Damper VA per Zone
100°F (38°C) 28.8
160°F (71°C) 16.8
* Use an SDCR (Slave Damper Control Relay) for additional dampers.
Maximum dampers per panel is limited by transformer size.
Ensure transformer is large enough to power the panel (6.25 VA) and
dampers.
Table 4. Accessories.
Accessory Description
40 VA transformer AT140A1042
75 VA transformer AT175A1008
Discharge Air Temperature
Sensor (DATS)
DATS C7735A1000
SDCR Slave Damper Control Relay
M24742B
8 (203)
8-1/8
(206)
1-55/64
(47)

Honeywell Home HZ311 TrueZONE Specifications

General

Brand	Honeywell Home
Model	HZ311 TrueZONE
Category	Thermostat
Language	English
