Installation Guide
69-2199—09 2
M28029A

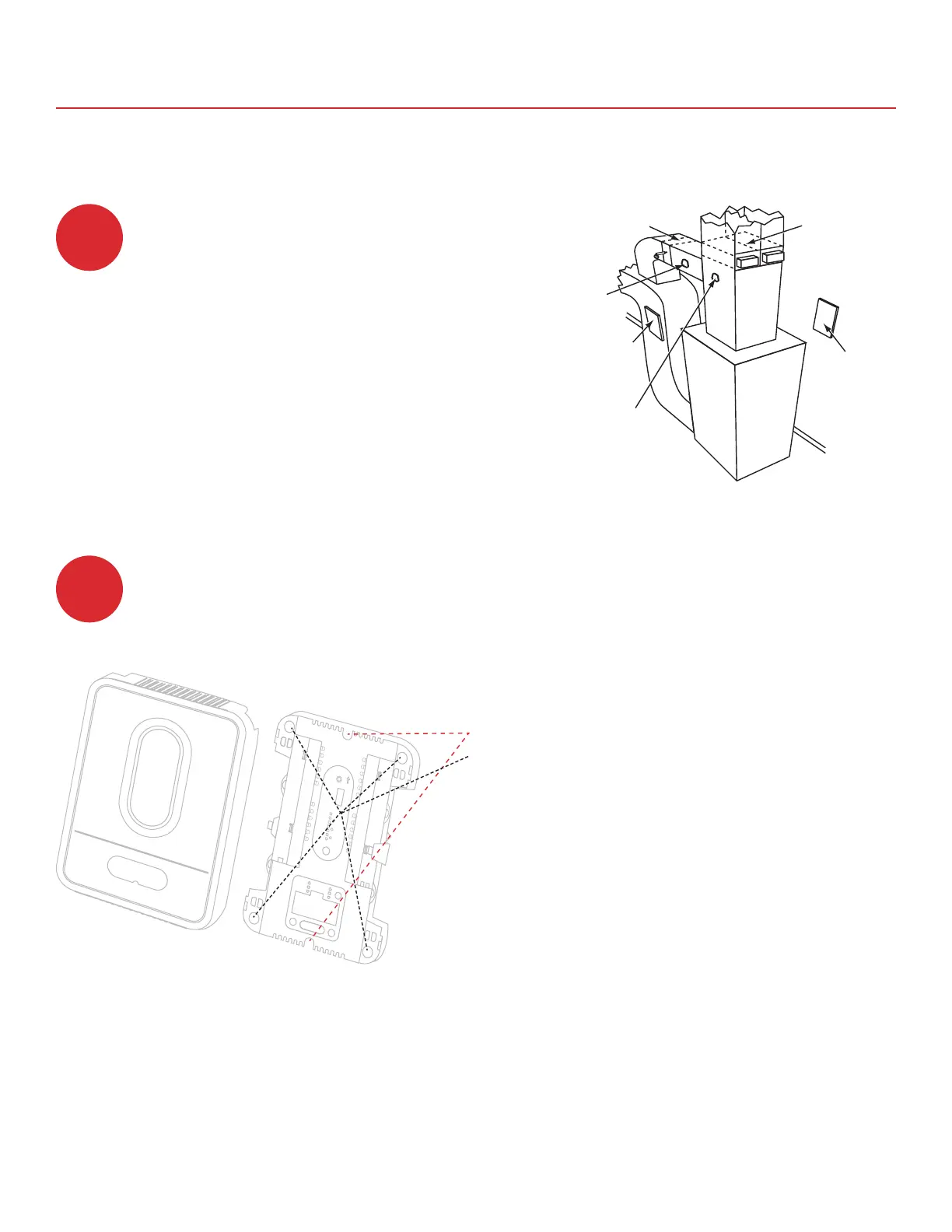

Mount the HZ322 TrueZONE panel near the HVAC
equipment; locate it on a wall, stud, roof truss, or cold-
air return.
NOTE: The HZ322 TrueZONE panel can be mounted
in any orientation; level it for appearance only.
1
2
Separate the zone panel cover from the base, and use the base as a template to drill mounting holes.
Attach the base to the wall, stud, roof truss, or duct with appropriate screws (not included).
Use two screws for attaching to a stud or roof truss, or
four screws for duct or drywall/plaster installations.
Fig. 2
Fig. 3
SUPPLY
DUCT
DATS
(AT LEAST 3 FT
FROM PLENUM)
DATS
(ALTERNATE
LOCATION)
Tr
ueZONE PANEL
MOUNTED ON
RETURN DUCT
TrueZONE PANEL
MOUNTED ON W
ALL
ZD SERIES
ZONE DAMPERS
CPRD BYPASS
DAMPER
FURNACE OR
AIR CONDITIONER
M24738
MOUNTING
