SPECIFICATIONS

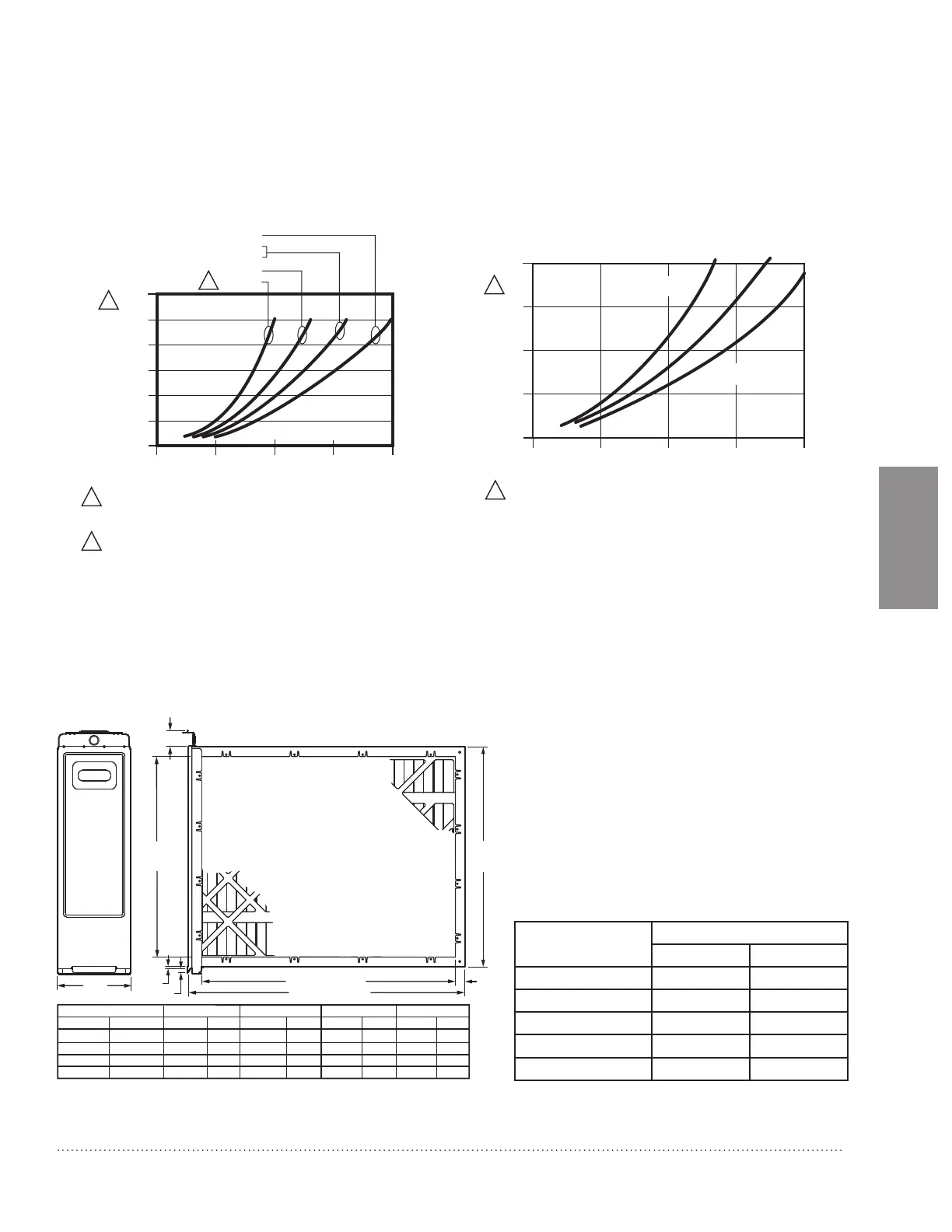

F100 Specications
MERV Rating*: MERV 11
Static Pressure Drop: 0.23 (in. w.c.) at 500 FPM
Efciency Denition*:
Small Particles: E1 = 0.3 to 1.0 microns = 32%
Medium Particles: E2 = 1.0 to 3.0 microns = 72%
Large Particles: E3 = 3.0 to 10.0 microns = 96%
0
500 1000 1500
2000
0.000
0.050
0.100
0.150
0.200
0.250
0.300
12.5 X 20
16 X 20
16 X 25
20 X 20
20 X 25
FILTER SIZE
PRESSURE DROP (IN. WC)
AIRFLOW (CFM)
M34911
WHEN FIRST INSTALLED. PRESSURE DROP INCREASES AS FILTER
BECOMES LOADED. REPLACE FILTER WHEN PRESSURE DROP
REACHES 0.5 IN. WC. (0.1 kPa).
AVAILABLE ONLY IN UNITED STATES.
2
1
1
2
F200 Specications
MERV Rating*: MERV 13
Static Pressure Drop: 0.3 (in. w.c.) at 500 FPM
Efciency Denition*:
Small Particles: E1 = 0.3 to 1.0 microns = 63%
Medium Particles: E2 = 1.0 to 3.0 microns = 91%
Large Particles: E3 = 3.0 to 10.0 microns = 99%
0
500 1000 1500
200
0
0
0.1
0.2
0.3
0.4
PRESSURE DROP (IN. WC)
AIRFLOW (CFM)
M13662
WHEN FIRST INSTALLED. PRESSURE DROP INCREASES AS FILTER
BECOMES LOADED. REPLACE FILTER WHEN PRESSURE DROP
REACHES 0.5 IN. WC. (0.1 kPa).
1
1
20 x 25 in.
(508 x 635 mm)
20 x 20 in.
(508 x 508 mm)
16 x 25 in.
(406 x 635 mm)
16 x 20 in.
(406 x 508 mm)
M14710F
F100 SIZE
IN.
16 X 25
16 X 20
20 X 25
20 X 20
MM
406 X 635
406 X 508
508 X 635
508 X 508
DIM. A
14-7/16
14-7/16
18-7/16
18-7/16
367
367
468
468
DIM. B
16-3/16
16-3/16
20-3/16
20-3/16
411
411
513
513
23-1/4
18-1/4
23-1/4
18-1/4
DIM. C
591
457
591
457
DIM. D
25-11/32
25-11/32
25-11/32
25-11/32
644
517
644
517
1-7/16 (37)
6-3/4
(171)
IN. MM IN. MM
IN. MM IN. MM
7/8
(22)
3/16 (5)
DIM. A
(SEE
TABLE)
DIM. C (SEE TABLE)
DIM. D (SEE TABLE)
DIM.
B
(SEE
TA
BLE)
3/8 (10)
Dimensions
Temperature Rating
-40° to +140°F (-40° to +60°C)
Approvals
Underwriters Laboratories, Inc.: Listed to UL
900, Class 2.
Replacement Filter Table
Filter Size (in.) Part Number
F100 F200
20 x 12-1/2 x 4-3/8 FC100A1052 N/A
16 x 24-7/8 x 4-3/8 FC100A1029 FC200E1029
16 x 19-3/4 x 4-3/8 FC100A1003 FC200E1003
20 x 24-7/8 x 4-3/8 FC100A1037 FC200E1037
20 x 19-3/4 x 4-3/8 FC100A1011 FC200E1011
* Minimum Efciency Reporting Value (Media Filters Only)
* Efciency ratings are based on American Society of Heating, Refrigerating and Air-Conditioning Engineers
Standard 52.2-1999.
Honeywell Media Air Cleaner 68-0239EF—10 9
