Honeywell HE360 - Installing the Pressure Switch; Pressure Switch Mounting Considerations; Mounting the Pressure Switch

HE360 HUMIDIFIER AND INSTALLATION KIT
69-2631ES—01 10
1. Disconnect power from the humidifier before installing.
2. Mount the switch vertically with pressure connectors facing down, using pro-
vided self-tapping screws to secure the switch to the duct.

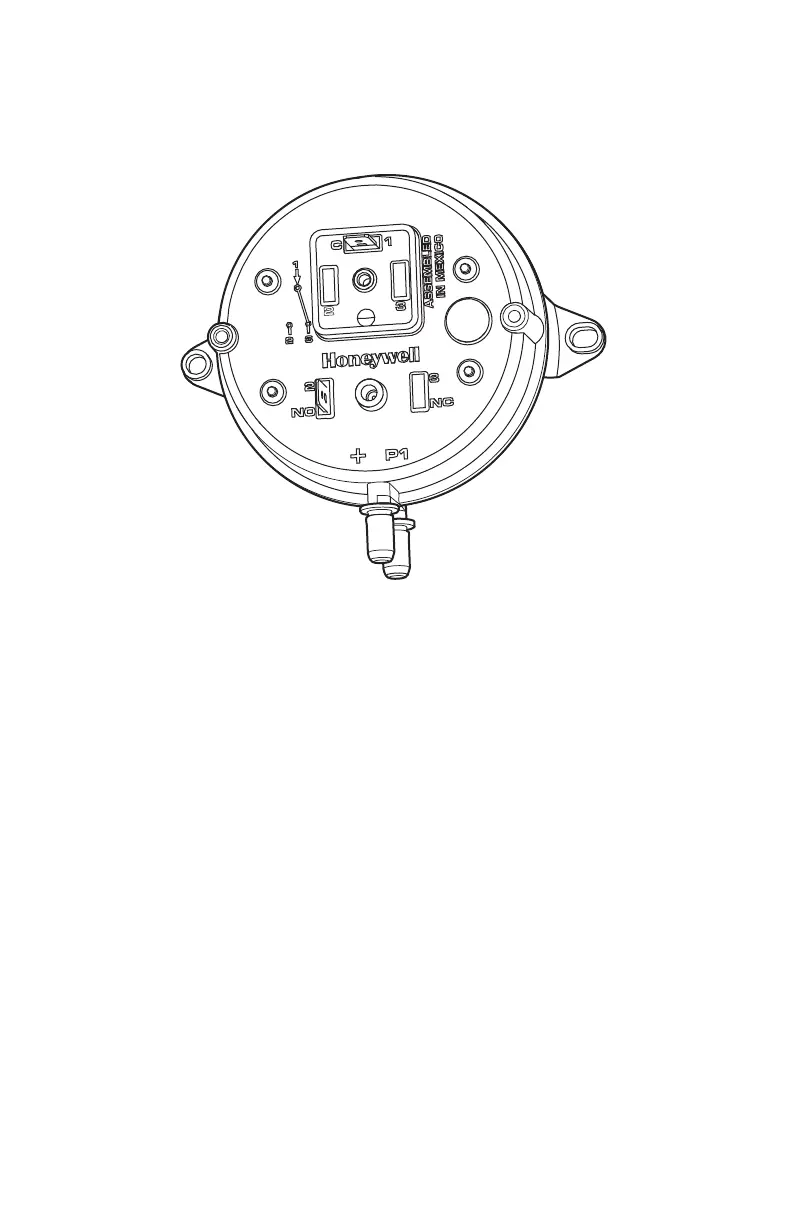

Fig. 9. Pressure switch—oriented vertically.
M27300
