HE360 HUMIDIFIER AND INSTALLATION KIT
9 69-2631ES—01
NOTE: Do not over-tighten the compression nut. Moderate tightness prevents leak-
ing.
e. Repeat steps a. through d. for solenoid valve fitting.
f. Secure tubing with clamps provided.

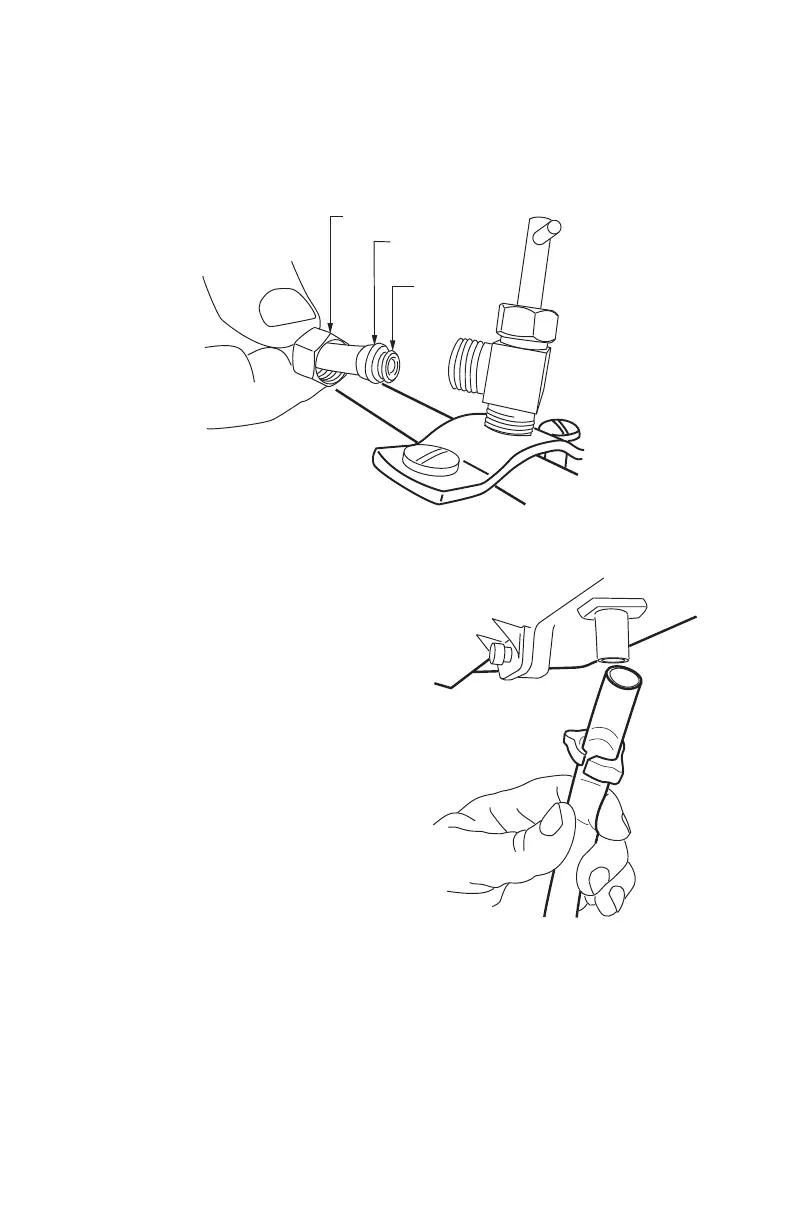

Fig. 7. Installing feed tubing.
4. Connect a 1/2 in. (13 mm) drain tube to
the humidifier drain fitting and run to the
floor drain (see Fig. 8).
a. Slide the drain clamp over the tub-
ing.
b. Push the tubing over the drain nip-
ple on the humidifier.
c. Hand-tighten the clamp around the
tubing to secure the humidifier drain.
d. Fasten the drain tubing (can use
duct tape) along the route to prevent
movement and ensure downward
slope for correct drainage.
NOTE: Cut tubing to correct length so the
tubing terminates at the drain.
Fig. 8. Installing the drain tubing.
Installing the Pressure Switch
IMPORTANT
Do not install the switch in an area where temperature exceeds rating of
-40°F to 190°F (-40°C to 88°C).
M20176
BRASS COMPRESSION NUT
PLASTIC
COMPRESSION RING
BRASS INSERT
