4

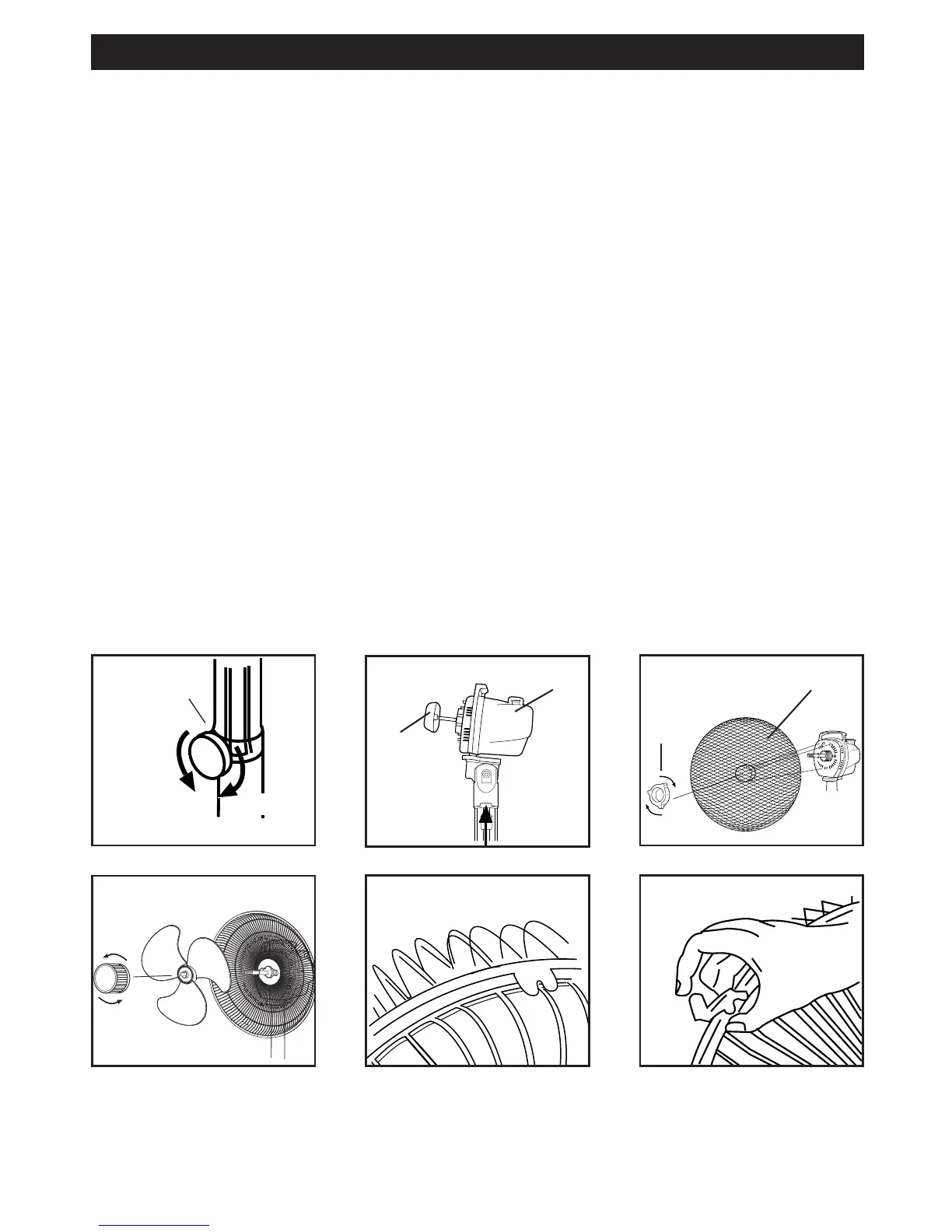

D. Assembling the Upper Portion of the Fan
• Place the Motor Assembly (C) onto the Metal Pole Extension and secure it by
turning the Assembly Knob CLOCKWISE (Fig. 3).
Note: If turning the assembly knob CLOCKWISE does not secure the motor
assembly to the metal pole extension, turn the Assembly Knob COUNTER-
CLOCKWISE until the metal pole extension can slide further into the Motor
Assembly. Then, turn the assembly knob CLOCKWISE to secure it to the metal
pole extension.
• Circular Rear Grille Mounting Nut will come attached to the Motor Assembly.
Remove it by turning COUNTER-CLOCKWISE. You will re-attach the Rear Grill
Mounting Nut later (Fig. 4).
• Place the Rear Grille onto the Motor Housing, making sure the 2 holes in the center
of the Rear Grille fit over the 2 raised knobs on the Motor Housing. Now place the
Rear Grille Mounting Nut (E) onto the center of the fan, and tighten by turning it
CLOCKWISE (Fig. 5).
• Align hole in center of Fan Blade with the screw extending from the Motor
Assembly. Make sure that the 2 slots on the back of the Fan Blade align with
the bars extending from the shaft surrounding the screw attached to the Motor
Assembly. Then push the Fan Blade into place. Now push the Blade Knob on the
center of the Fan, and tighten by turning the Blade Knob COUNTER -CLOCKWISE
(Fig. 6).
• Properly align the Front Grille with the Rear Grille (Fig. 7). To secure the Front Grille
onto the fan, raise the built-in clips around the Front Grille, and fasten these clips
onto the Rear Grille (Fig. 8).
ASSEMBLY INSTRUCTIONS (continued)
DS-1600/1606 Fig. 5
Fig. 4 Fig. 5
Fig. 6
Fig. 7 Fig. 8
D
C
F
E
Loosen
Fig. 3
B
Assembly Knob
Tighten
