SERIES 72 MODUTROL IV™ MOTORS
7 63-2202—4

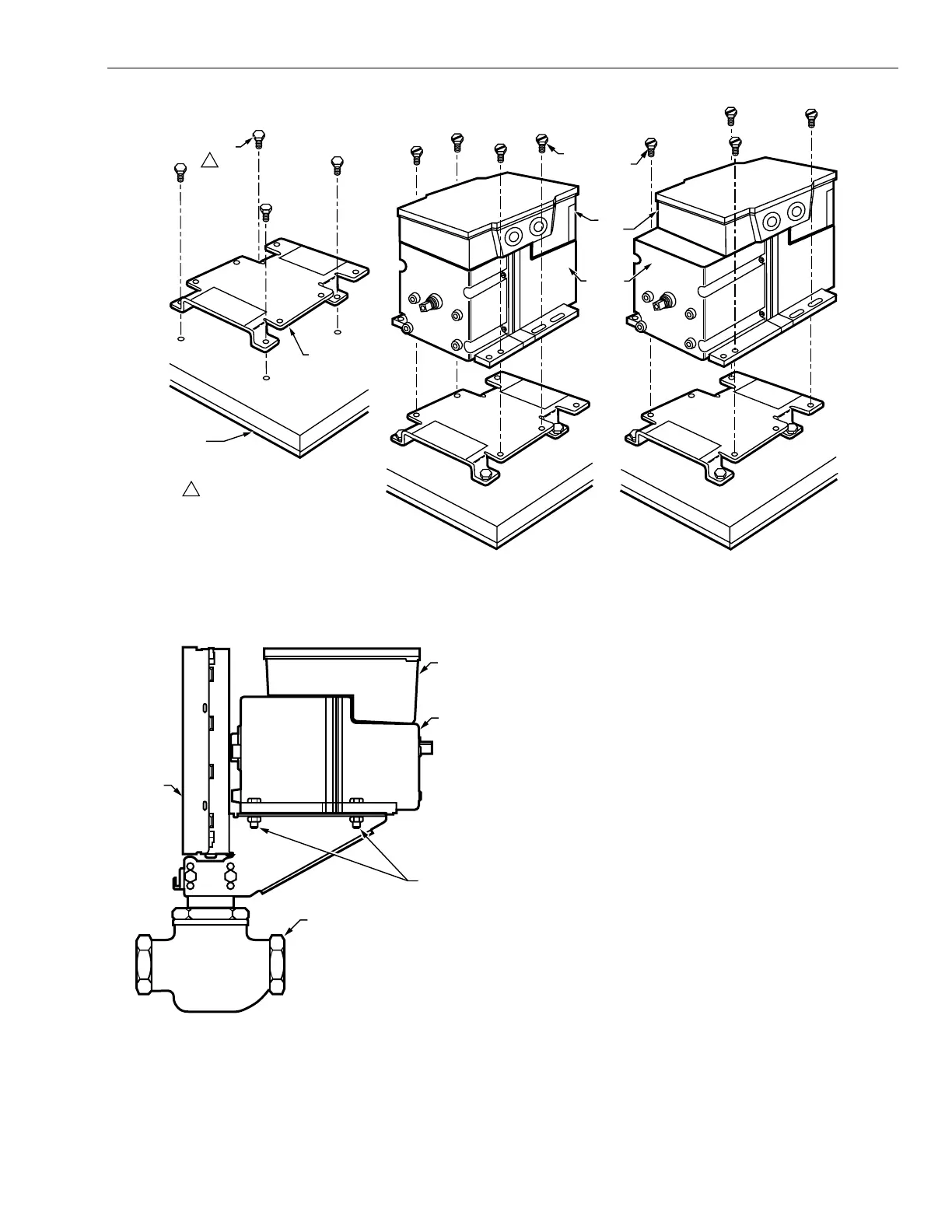

Fig. 3. Mounting the motor with an adapter bracket.
Fig. 4. Mounting the motor on a Q5001 Valve Linkage.
M452E
EQUIPMENT
BASE
ADAPTER
BRACKET
STANDARD
BOLTS (4)
MOTOR
BOLTS
PROVIDED (4)
WIRING
BOX
NON-SPRING RETURN
SPRING RETURN
No. 12 OR 1/4 in. ZINC PLATED
MACHINE SCREWS OR BOLTS
1
1
POWER END
POWER END POWER END
1/4-20 UNC
1 in. LONG
MOUNTING
BOLTS
Q5001
VALVE
LINKAGE
M17092
MOTOR
WIRING
BOX
POWER
END OF
MOTOR
VALVE
