SERIES 90 MODUTROL IV™ MOTORS
7 63-2190—3

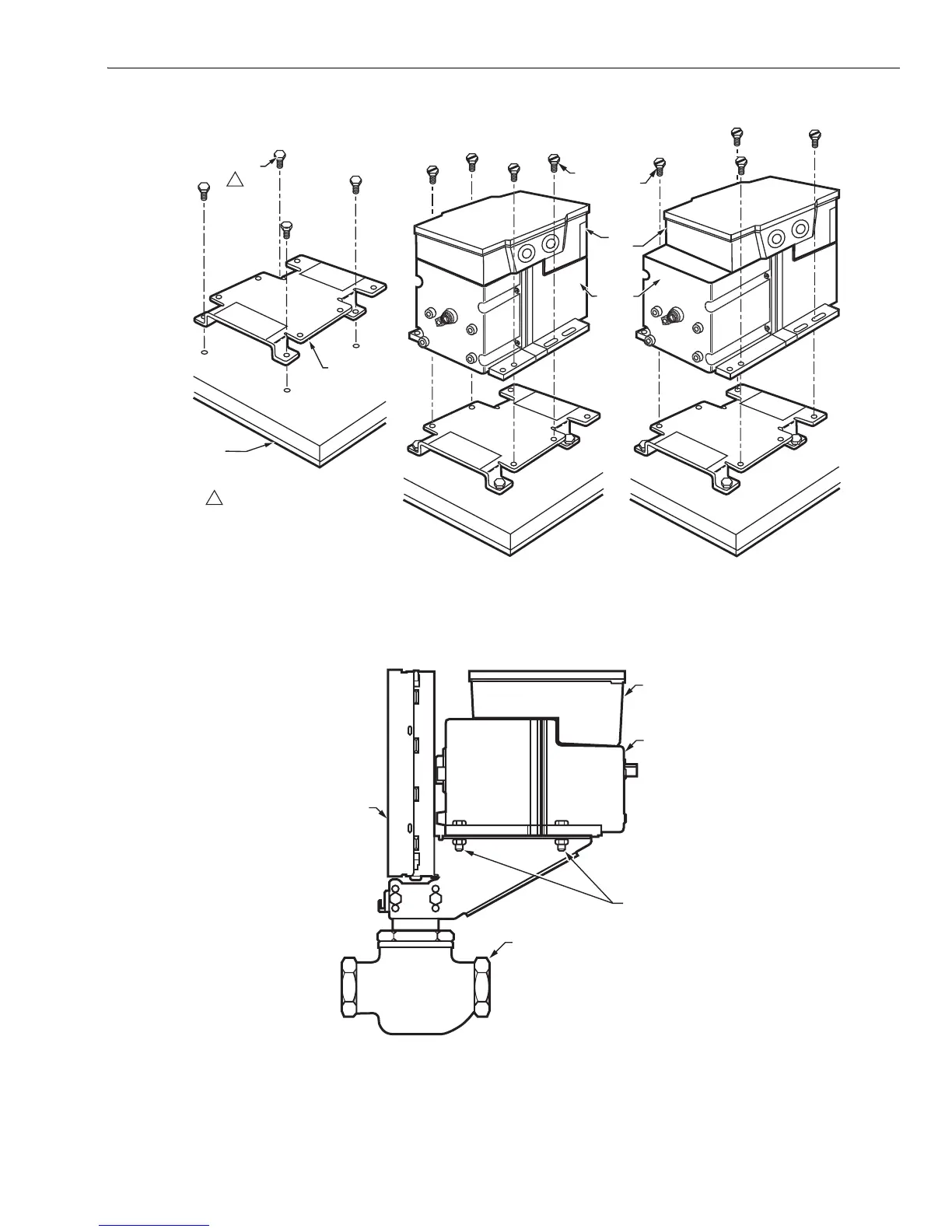

Fig. 3. Mounting the motor with an adapter bracket.
Fig. 4. Mounting the motor on a Q5001 Valve Linkage.
M452E
EQUIPMENT
BASE
ADAPTER
BRACKET
STANDARD
BOLTS (4)
M
O
T
OR
BOLTS
PROVIDED (4)
WIRING
BOX
NON-SPRING RETURN
SPRING RETURN
1 #12 OR 1/4" ZINC PLATED
MACHINE SCREWS OR BOLTS
1
P
OWER
E
ND
PO
W
ER END
PO
W
ER END
1/4-20 UNC
1 in. LONG
MOUNTING
BOLTS
Q5001
VALVE
LINKAGE
M17092
MOTOR
WIRING
BOX
POWER
END OF
MOTOR
VALVE
