Install on the surface or on the wall with Mount bracket
To install this product, please refer to Figure2 and do the following steps.
1. Make sure the threads of the product and the threads of the supplied stainless steel bolts (Supplied) are
free of dirt and debris.
2. Apply an amount of thread locking compound(not supplied) to the thread of the product and the thread of
the bolts.
3. Secure the product to the mounting surface with the adjusted wrench and four stainless steel bolts and lock
washers. Tighten the bolts to 150~300 kgf.cm (14Nm~29Nm)

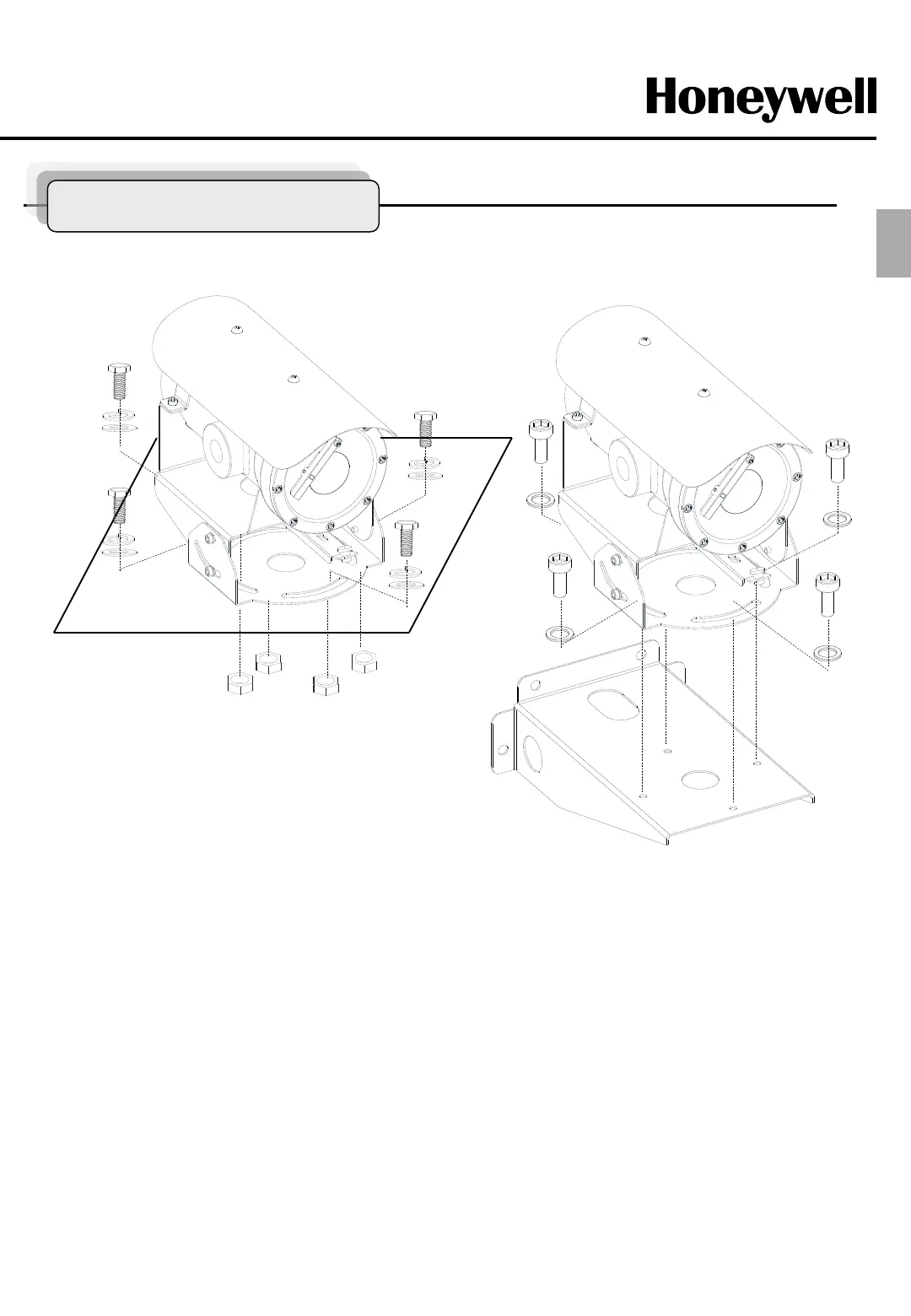

Figure2.
Note : Figure2 shows the product being installed on a wall mount bracket which is an optional
product; NEXH-WL (not supplied) and if there is no need the wall mount bracket, just follow a
above step to install the product without wall mount bracket.
Methods of Installation
ENG
