T87N/T87K • Owner's Manual
4

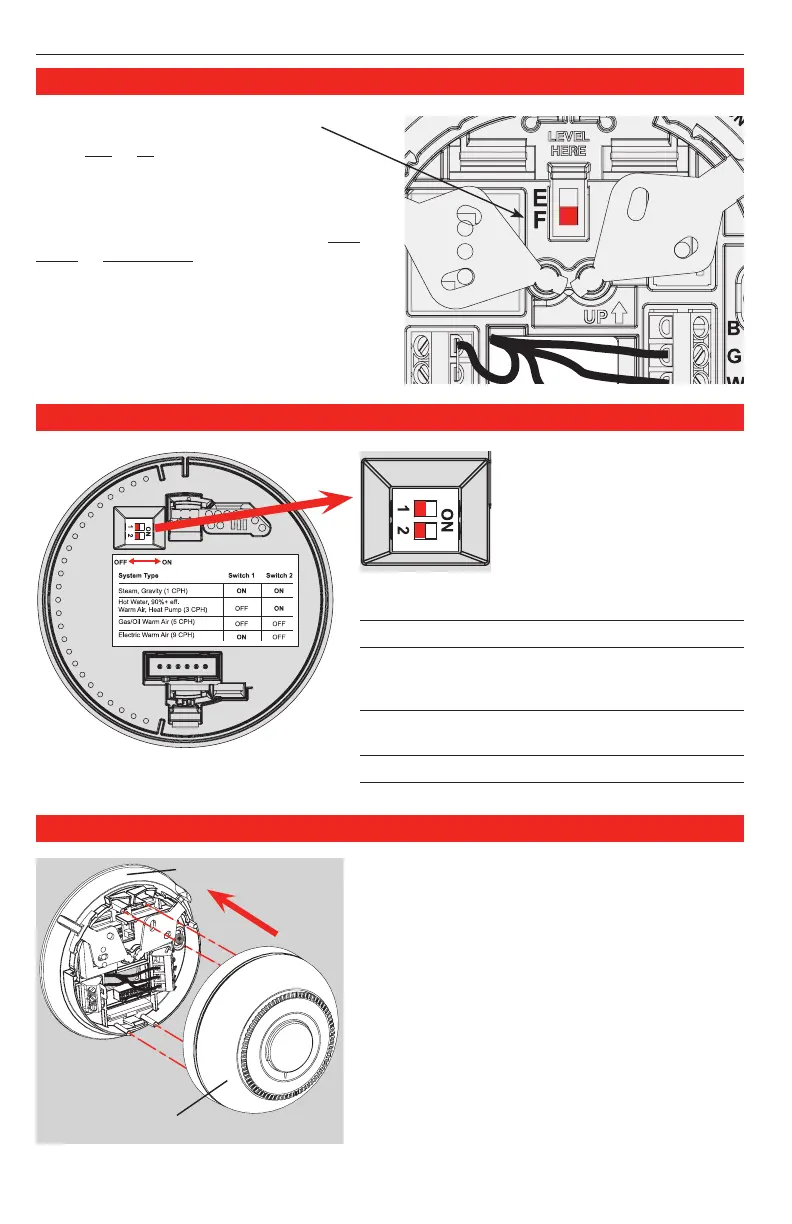

Fan operation settings:
F: For gas or oil heating systems, leave
the fan operation switch in this factory-set
position (for systems that control the fan in
a call for heat).
E: Change the switch to this setting for heat
pump or electric heat systems. (This setting
is for systems that allow the thermostat
to control the fan in a call for heat, if a fan
wire is connected to the G terminal.)
Align the slots on the base with tabs on the
thermostat, then push gently until the
thermostat snaps into place.
Fan operation settings (T87N)
Thermostat mounting
Thermostat
Base
Heating System Switch 1 Switch 2
Steam or gravity (1 CPH) On On
High efficiency warm air Off On
(90%+), hot water, or
heat pump (3 CPH)
Gas or oil warm air Off Off
(factory setting) (5 CPH)
Electric warm air (9 CPH) On Off
Move the cycle rate switches
to the proper setting for your
system (see table below).
Cycle rate settings
To Next Page
