Honeywell RTHL2410 series - Connect Wires

69-2580ES—01 6
M32715

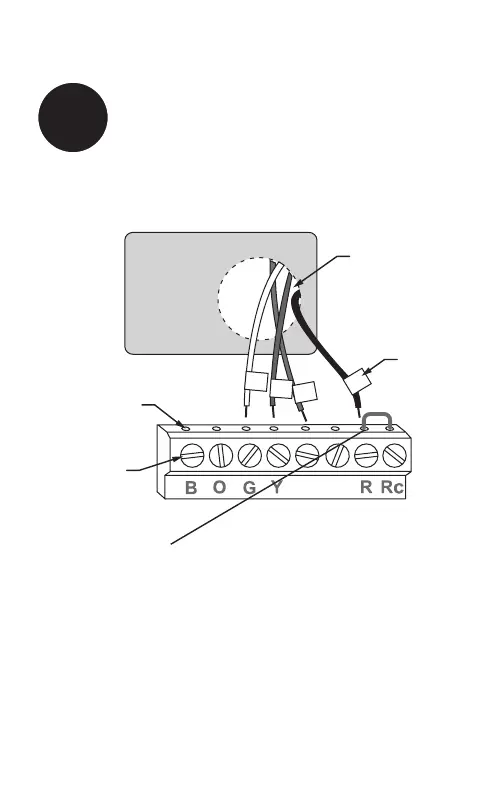

SCREW
INSERT WIRES
AND TIGHTEN
SCREWS
WIRE
HOLE
LABELED
WIRES
W/
Aux
W
Y
G
R
Not
Used
Connect Wires
6
Simply match wire labels.
Remove metal jumper if you have both R and Rc wires.
Labels don’t match? See page 22.
Have a Heat Pump system? See page 23-24.
We are here to help.
Call 1-800-468-1502 for wiring assistance.
