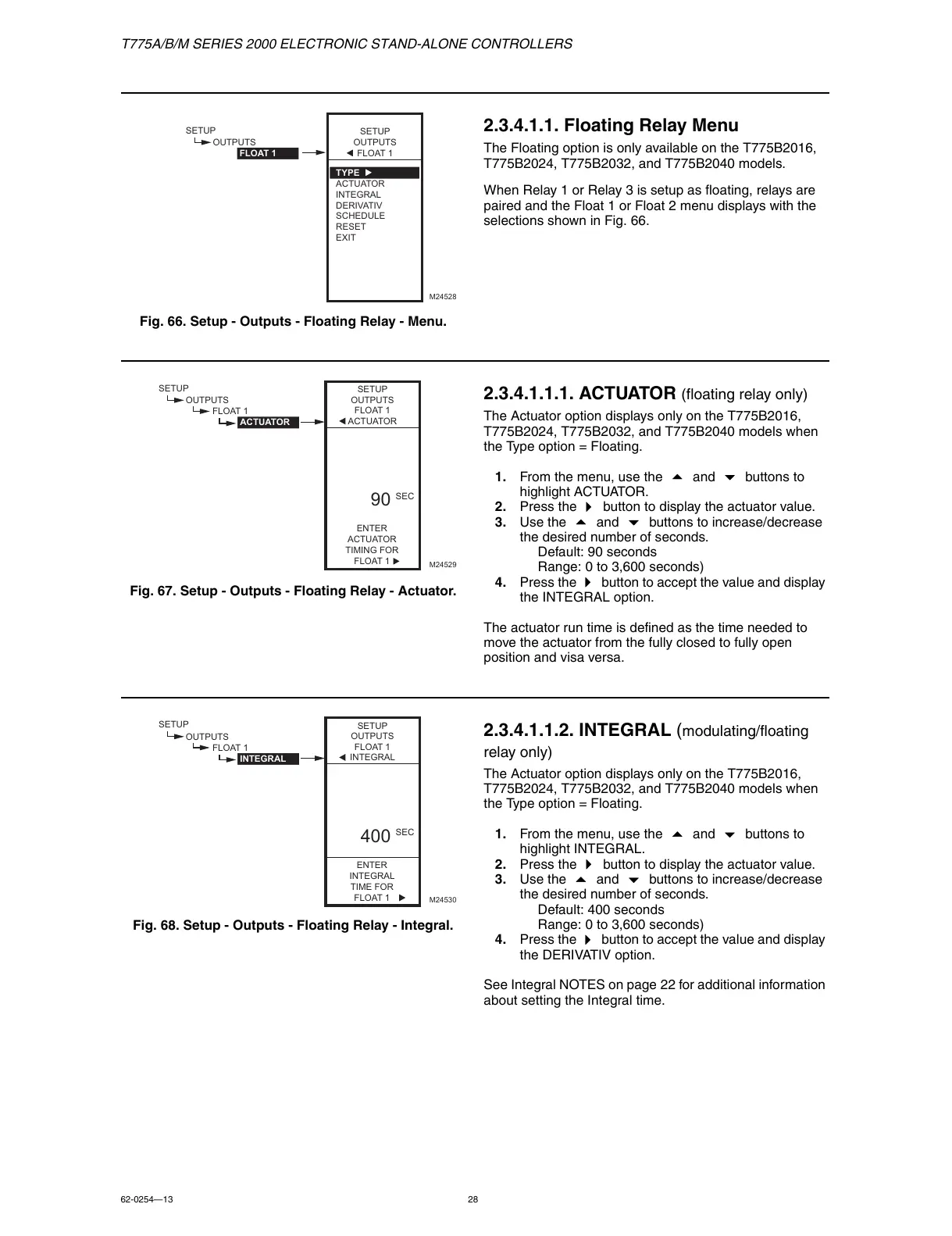

T775A/B/M SERIES 2000 ELECTRONIC STAND-ALONE CONTROLLERS
62-0254—13 28
Fig. 66. Setup - Outputs - Floating Relay - Menu.
2.3.4.1.1. Floating Relay Menu
The Floating option is only available on the T775B2016,
T775B2024, T775B2032, and T775B2040 models.
When Relay 1 or Relay 3 is setup as floating, relays are
paired and the Float 1 or Float 2 menu displays with the
selections shown in Fig. 66.
Fig. 67. Setup - Outputs - Floating Relay - Actuator.
2.3.4.1.1.1. ACTUATOR (floating relay only)
The Actuator option displays only on the T775B2016,
T775B2024, T775B2032, and T775B2040 models when
the Type option = Floating.
1. From the menu, use the
and buttons to
highlight ACTUATOR.
2. Press the
button to display the actuator value.
3. Use the
and buttons to increase/decrease
the desired number of seconds.
Default: 90 seconds
Range: 0 to 3,600 seconds)
4. Press the
button to accept the value and display
the INTEGRAL option.
The actuator run time is defined as the time needed to
move the actuator from the fully closed to fully open
position and visa versa.
Fig. 68. Setup - Outputs - Floating Relay - Integral.
2.3.4.1.1.2. INTEGRAL (modulating/floating
relay only)
The Actuator option displays only on the T775B2016,
T775B2024, T775B2032, and T775B2040 models when
the Type option = Floating.
1. From the menu, use the
and buttons to
highlight INTEGRAL.
2. Press the
button to display the actuator value.
3. Use the
and buttons to increase/decrease
the desired number of seconds.
Default: 400 seconds
Range: 0 to 3,600 seconds)
4. Press the
button to accept the value and display
the DERIVATIV option.
See Integral NOTES on page 22 for additional information
about setting the Integral time.
