Thermostat Function Program Selection
• To enter thermostat setup mode, press and hold the s and
FAN buttons until the display changes to setup mode. Use
the s and t buttons to change settings, the NEXT button
to advance to the next setting, and the DONE button to save
the settings and exit from the setup mode.
• For gas fired unit heaters and duct furnaces (non-factory
supplied blower) with model numbers shown on the opposite
side, refer to Table 2.1 typical thermostat function settings.
• For all other system units (factory supplied blower), refer to
the job specific unit wiring diagram provided with the unit.
• For deviations to these wiring diagrams or the job specific
wiring diagrams, consult the factory.
• For additional information, refer to the vendor literature
supplied with the thermostat.
Table 2.1 - Typical Thermostat Function Program Settings ➀

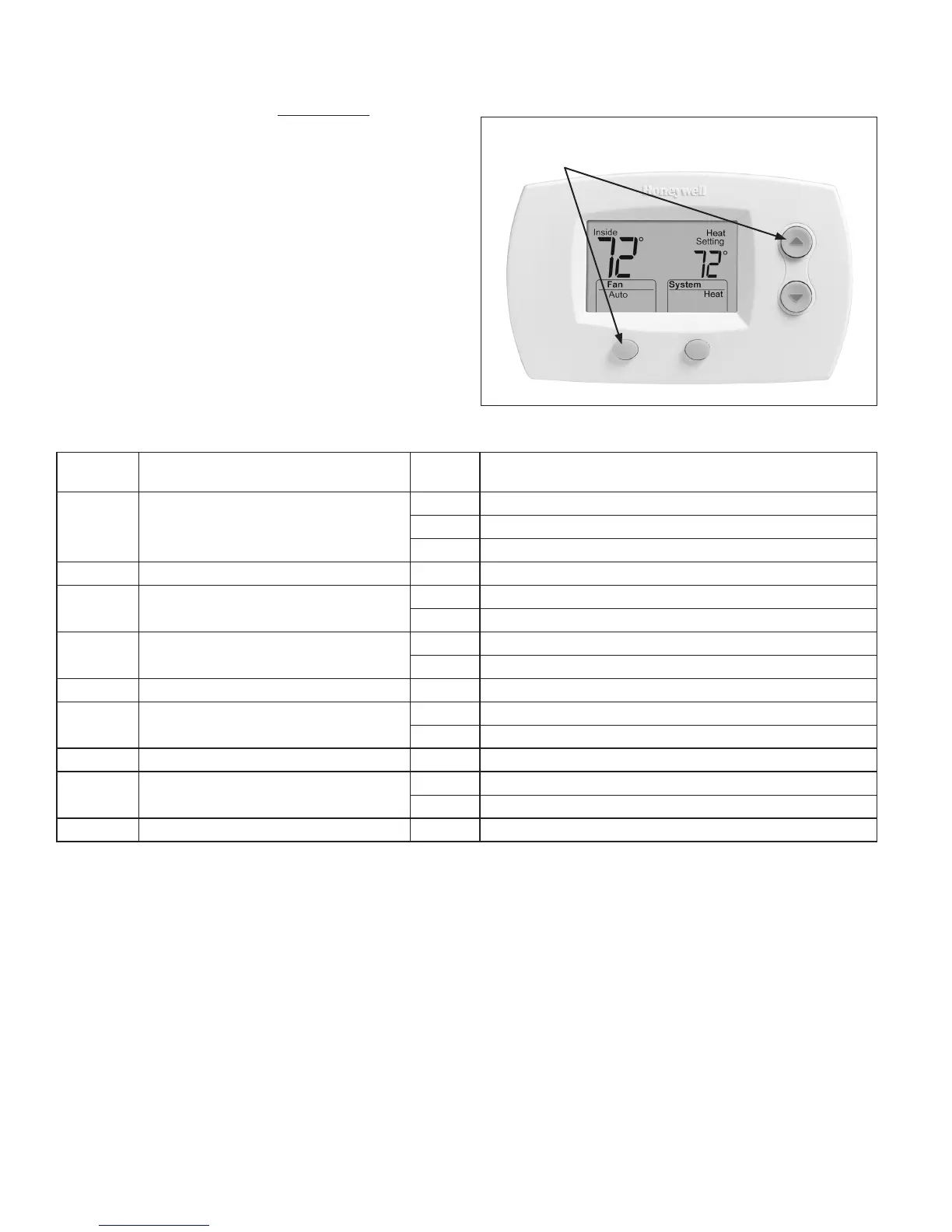

Figure 2.1 - Buttons to Press to Enter Function
Programming Mode
Function
Number Feature
Typical
Setting Description
1 System type
3 Single stage heat only with fan
6 2 heat/2 cool conventional (cooling by others)
7 2 heat/1 cool conventional (cooling by others)
3 Fan control 0 Gas or oil furnace — equipment controls fan in heating
5 Heat cycle rate (CPH)
5 For gas or oil furnaces of less than 90% efficiency
3 For furnaces of over 90% efficiency
6 Second stage heat cycle rate (CPH)
5 For gas or oil furnaces of less than 90% efficiency
3 For furnaces of over 90% efficiency
9-12 Cooling functions
14 Temperature display
0 Fahrenheit
1 Celcius
15-26 Cooling and emergency heat functions
27 Heat temperature range stops
90 Default value, can be set 40-90 in increments of 1°F
80 For PTC models, this setting must be changed to 80
28 Cool temperature range stops 50
➀ See Honeywell instructions that shipped with stat for more information and additional setting options.
Press and hold to enter
function programming mode
