UV100E ULTRAVIOLET SYSTEMS
9 68-0262—5

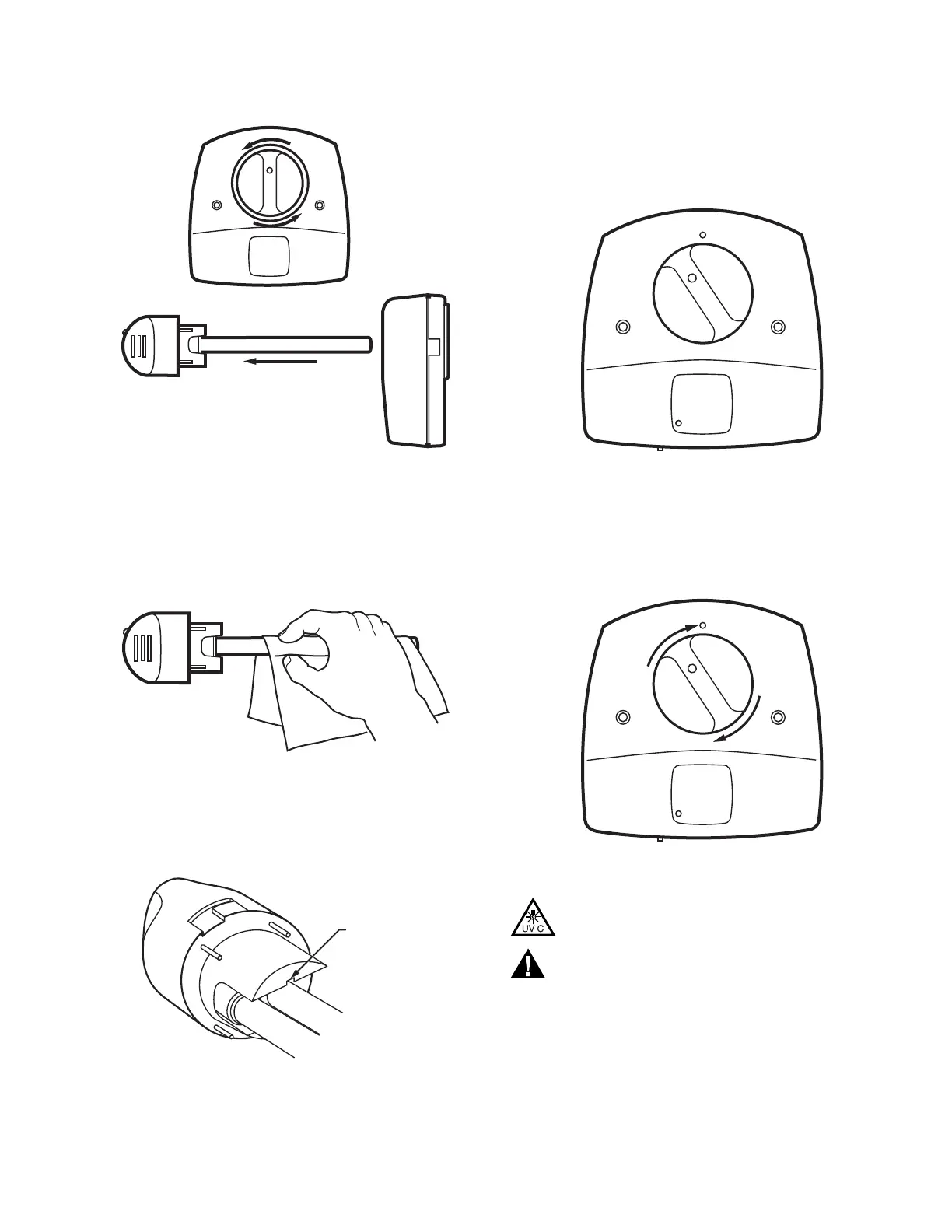

Fig. 11. Remove lamp or bulb.
4. Holding the lamp handle, wipe the lamp glass using a
soft cloth dampened with window cleaner. If you touch
the lamp glass with your hands, be sure to clean the
area of any oils left from bare hands. See Fig. 12.
Fig. 12. Clean glass with soft cloth.
5. Also wipe away any dust that may have collected
between the lamp light indicator on the base and the
black lamp base. See Fig. 13.
Fig. 13. Wipe lamp light indicator base.
6. Dry bulbs with a clean, dry cloth.
7. Insert the lamp handle into the base with the lamp light
indicator at the eleven o’clock position. Continue pushing
and gently rotating counterclockwise until the lamp
handle inserts fully into the base. See Fig. 14.
Fig. 14. Position lamp handle for insertion back into
lamp base.
8. Rotate the lamp handle clockwise until it snaps into place
with the lamp light indicator aligned with the raised but-
ton on the unit cover. See Fig. 15.
Fig. 15. Snap lamp handle into place.
UV Light Hazard.
Harmful to bare skin and eyes.
Can cause temporary or permanent loss of vision.
Never look at bulbs while illuminated.
View illumination only through lamp light indicator
located on lamp handle.
To prevent exposure to ultraviolet light, disconnect
power to ultraviolet system before servicing any part of
heating and air conditioning system.
9. Reconnect power to your UV System.
M22843
LAMP LIGHT
INDICATOR BASE
M22845
M22847
M22849
