Hoonved ED 650 E - Control Panel Overview; Line Selector; Washing Time Selector; Temperature Reached Indicator

8
A 90/120

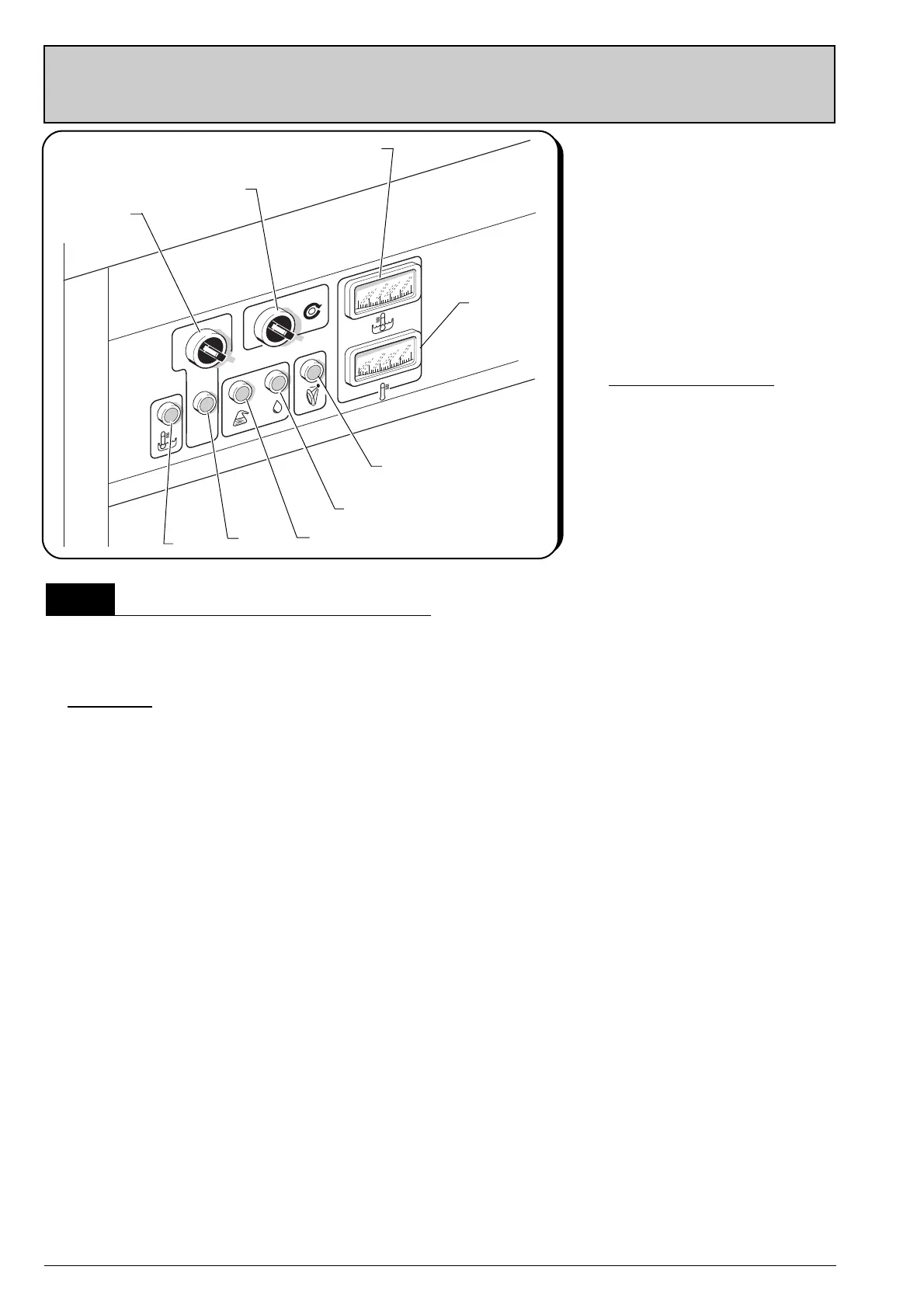

CONTROL PANEL
KEY
1) Line selector
2) Washing time selector
3 time settings for mod. ED 650 E/S
3) Tub thermometer
4) Boiler thermometer
(for Mod. ED 650 S only)
5) Temperature reached warning light
6) Mains warning light
7) Detergent low warning light
(for Mod. ED 650 S only)
8) Rinsing agent low warning light
(for Mod. ED 650 S only)
9) Cycle light
ITA
0
1
I
II
III
50
60
70
80
40
30
30
40
50
60
20
10
1
2
3
4
5
6
7
8
9
ED 650 E/S - CA 90/120
DESCRIPTION OF CONTROLS
• Line selector (1)
Turned on position “I” ON, this enables normal machine
operation; turned to position “0” OFF, it disables all
machine functions.
Drain phase (line off)
(on machines with drain pump only)
Selector switch turned left makes the manual drain.
• Washing time selector (2)
Turned to the various positions, this is used to set the
programmed washing time.
• Tub thermometer (3)
Indicated the temperature of the water in the washing
tank.
• Boiler thermometer (4)
(for Mod. ED 650 S only)
Indicates the temperatures of the water in the rinsing
boiler.
• “Temperature reached” warning light (5)
Flashed whilst the water in the boiler is being heated.
Remains permanently on once the set temperature has
been reached.
• Mains warning light (6)
When on, indicates that the power source is connected.
• Detergent level alarm light (7)
(for Mod. ED 650 S only)
When on, indicates that there is insufficient detergen in
the relative can.
• Rinsing agent level alarm light (8)
(for Mod. ED 650 S only)
When on, indicates that there is insufficient rinsing agent
in the relative can.
• Cycle light (9)
When on, indicates that the cycle is operating.
GBR
