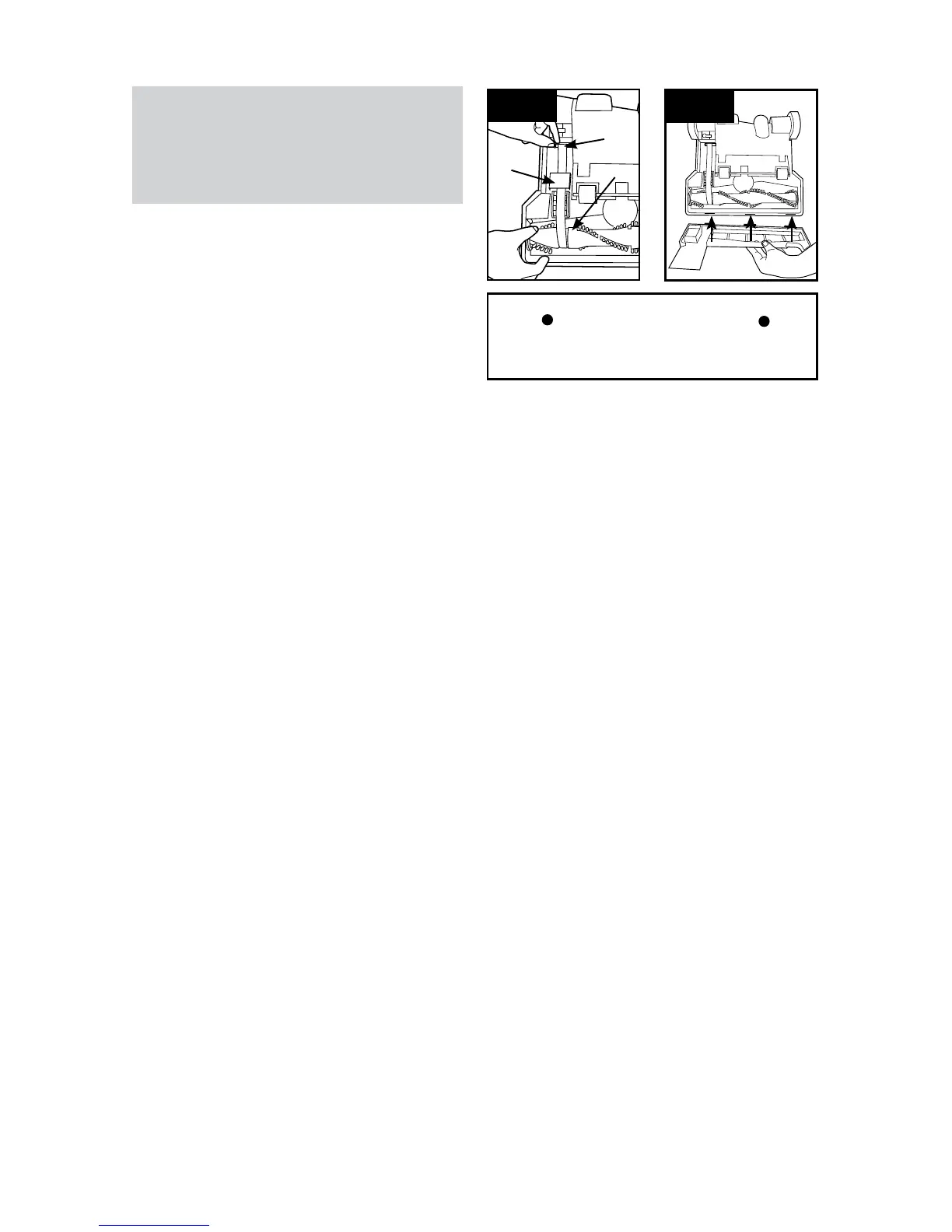

4.22 With lettering on outside of belt, slide new belt
over motor shaft (metal rod) (E).
Push other end of belt through belt guide (F) and
then slip around area of brushroll without bristles
(G).
With belt in place, pull and slide brushroll into nozzle
making sure that the brushroll end caps are in the
correct orientation.
4.29 Reposition bottom plate, aligning the three
tabs along front edge of nozzle guard with the three
slots in nozzle. Rotate back into position. Slide red
lower latch to Lock position, and rotate red upper
latch clockwise to secure bottom plate.
*Models without “Suction Only Mode” do not have
the metal pulley
4.22
E
G
What to Buy: Belt
Use only genuine HOOVER
®
belts with your
vacuum.
When purchasing a new belt, ask for Stretch Belt
- HOOVER
®
part No. 562932001 or AH20080.
F
IMPORTANT
Rotate brushroll manually to make sure belt is
not twisted.
BELT (continued)
4.23
