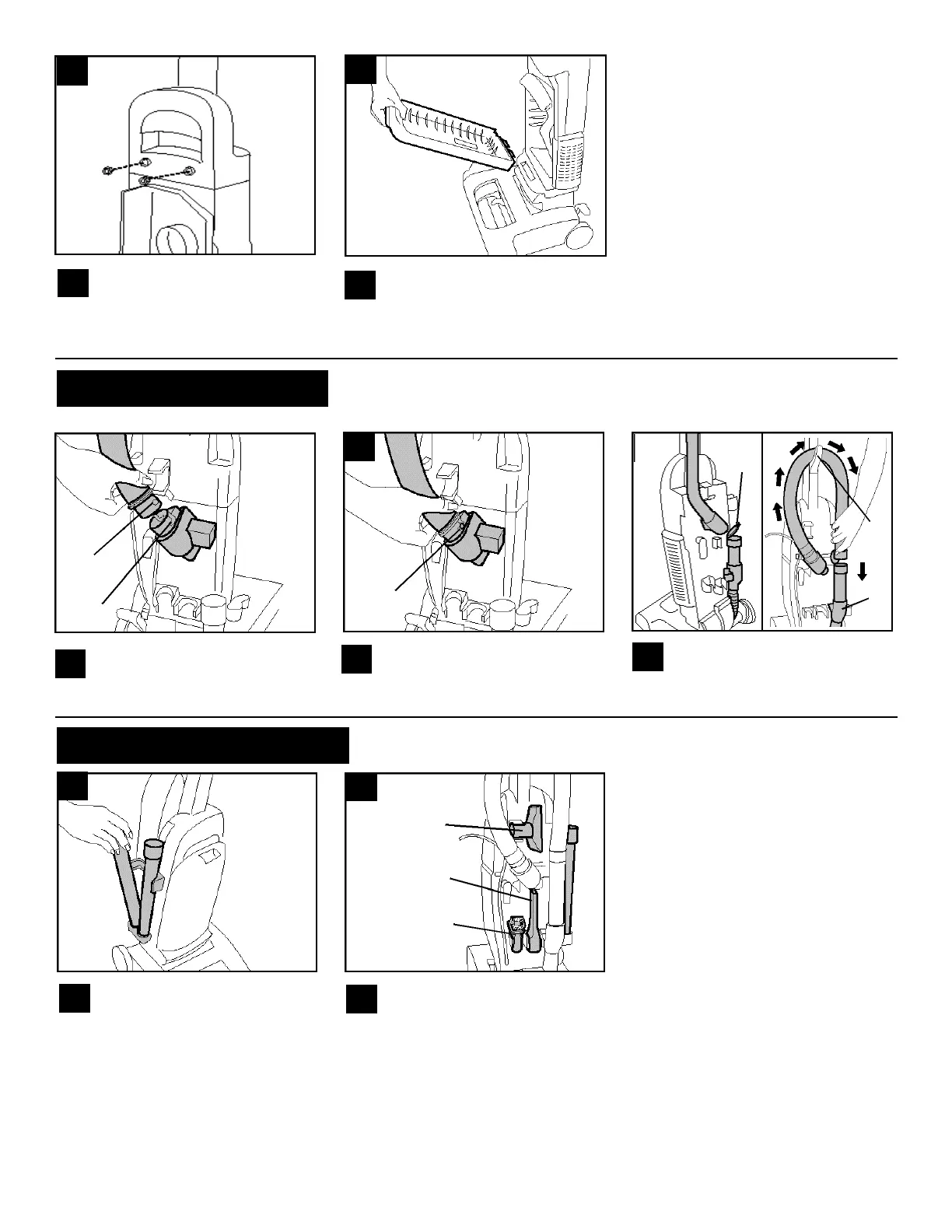

Lift hose tube cover (C).
Position hose over hose hook
(D) and onto hose tube (E).
Slide hose into (B) and twist
hose to lock it into place.
Align end of hose with projec-
tions (A) over slots (B) in dirt
duct.
Reposition bag door by fitting
tabs on bottom of door into
opening. Press top of door to snap
securely shut.
Place nuts in recessed areas
on front of handle. Hold each
nut in place while tightening each
bolt securely with a Phillips screw
driver.
3
5
7
9
9
8
7
6
5
A
B
B
C
D
E
8
1 0
1 1
STEP III Attach Hose
STEP IV Position Tools
A
B
C
6
NOTE: HOSE MUST BE CONNECTED AS SHOWN
FOR ALL OPERATIONS
Place smaller unridged end of
wand into bottom of rack. Snap
wand into clip. Repeat with other
w a n d .
Snap ends of dusting brush (A)
crevice tool (B) and furniture
nozzle (C) into clips as shown.
1 0
1 1
