Horizon Hobby Mini Convergence VTOL PNP - User Manual

Horizon Hobby Mini Convergence VTOL PNP
18 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
®

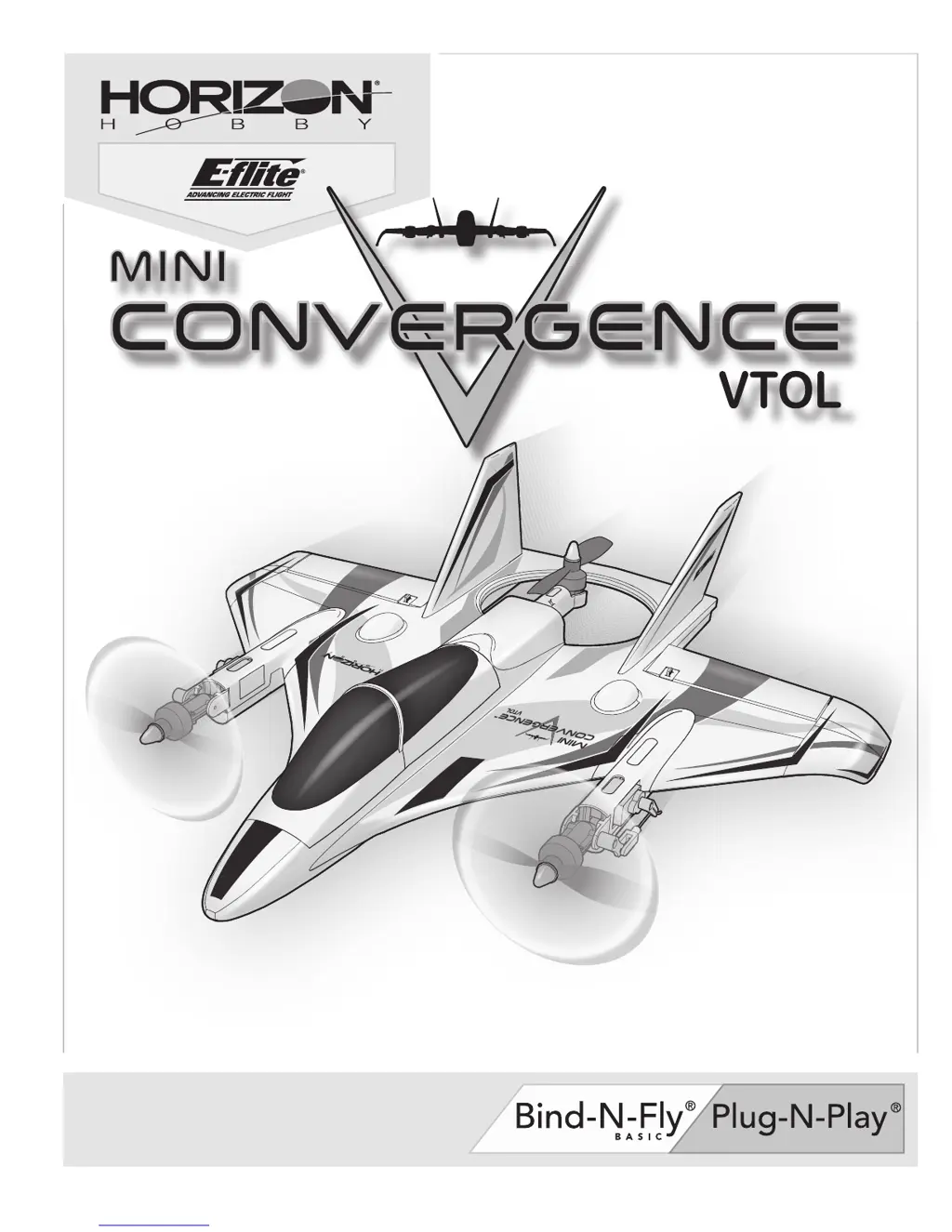

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni

Questions and Answers

  • J
    Jonathan PachecoAug 17, 2025
    Why is my Horizon Hobby Mini Convergence VTOL PNP Toy aircraft not responding to the throttle?
    • C
      Cynthia DunnAug 17, 2025
      If your Horizon Hobby Toy aircraft isn't responding to the throttle but responds to other controls, there are several potential causes. First, ensure the throttle is at idle and the throttle trim is at its lowest setting. Next, check that the throttle servo travel is 100% or greater. Also, verify that the throttle channel is not reversed on the transmitter; if it is, reverse it. Finally, confirm that the motors are properly connected to the ESCs.
  • D
    Danielle RileyAug 20, 2025
    What to do if my Horizon Hobby Toy aircraft will not bind to the transmitter?
    • L
      Linda GambleAug 20, 2025
      If your Horizon Hobby Toy aircraft will not bind to the transmitter, it may be due to several reasons. First, the transmitter might be too close to the aircraft during the binding process; move it a few feet away, then disconnect and reconnect the flight battery to the aircraft. Another cause could be interference from metal objects, wireless sources, or other transmitters; move the aircraft and transmitter to a different location and try binding again. Also, ensure that the flight battery and transmitter battery are adequately charged, replacing or recharging them if necessary. Finally, make sure to hold the bind switch or button long enough during the bind process; power off the transmitter and repeat the process, holding the bind button or switch until the receiver is bound.
  • V
    vkellyAug 22, 2025
    Why is my Horizon Hobby Mini Convergence VTOL PNP aircraft having inconsistent flight performance?
    • K
      Kathryn GarciaAug 22, 2025
      If your Horizon Hobby Toy aircraft exhibits inconsistent flight performance, check the following: ensure the trim is at neutral; if you adjust trim more than 8 clicks, adjust the clevis to remove trim. Also, verify that the Sub-Trim is at neutral; no Sub-Trim is allowed, so adjust the servo linkage. Finally, after battery connection, ensure the aircraft was kept upright and immobile for 5 seconds; with the throttle stick in the lowest position, disconnect the battery, then reconnect it and keep the aircraft still for 5 seconds.
  • K
    Kyle ParkerAug 26, 2025
    What to do if Horizon Hobby Toy aircraft will not connect after binding?
    • S
      Stephanie MendozaAug 26, 2025
      If your Horizon Hobby Toy aircraft will not connect to the transmitter after binding, there could be several reasons. First, the transmitter might be too close to the aircraft; move it a few feet away and try reconnecting the flight battery. Interference from metal objects, wireless sources, or other transmitters could also be the issue; move to another location and try again. If using a ModelMatchTM radio, ensure the correct model memory is selected on the transmitter. Also, check the battery levels of both the flight battery and the transmitter battery, replacing or recharging them if necessary. Finally, the transmitter may have been bound to a different aircraft using a different DSM protocol; in this case, bind the aircraft to the transmitter.
  • K
    kaitlynsmithAug 28, 2025
    Why does my Horizon Hobby Mini Convergence VTOL PNP aircraft have reduced flight time?
    • C
      craig22Aug 28, 2025
      If you're experiencing reduced flight time or your Horizon Hobby Toy aircraft feels underpowered, start by completely recharging the flight battery. Ensure the propeller is installed correctly, with the numbers facing forward. If the flight battery is damaged, replace it, following the battery instructions. Cold flight conditions can also affect performance, so make sure the battery is warm before use. Finally, the battery capacity might be too low for the flight conditions; consider replacing it with a larger capacity battery.
  • R
    Ryan PhillipsAug 31, 2025
    Why is my Horizon Hobby Toy aircraft making extra propeller noise?
    • H
      hannahwashingtonAug 31, 2025
      If you notice extra propeller noise or vibration in your Horizon Hobby Toy aircraft, it could be due to a damaged propeller or motor; in this case, replace the damaged parts. Another possibility is an unbalanced propeller, which should be balanced or replaced. Also, check if the prop nut is too loose and tighten it if necessary.
  • K
    Krystal JonesSep 2, 2025
    What causes a control surface to not move on my Horizon Hobby Toy aircraft?
    • M
      Maria HowardSep 2, 2025
      If a control surface on your Horizon Hobby Toy aircraft isn't moving, there are several things to check. Inspect for damage to the control surface, control horn, linkage, or servo, and replace or repair any damaged parts, adjusting the controls as needed. Check the wires and connections for damage or looseness, connecting or replacing them as necessary. Ensure the transmitter is bound correctly and the correct airplane is selected. Fully recharge the flight battery, as a low charge can cause issues. If the flight controller is damaged, it should be replaced. Lastly, verify that the transmitter is set to Airplane Flight Mode, not Hover Flight Mode.
  • L
    lanechristopherSep 5, 2025
    Why are the controls reversed on my Horizon Hobby Toy aircraft?
    • P
      Patrick WolfeSep 5, 2025
      If the controls on your Horizon Hobby Toy aircraft are reversed, the transmitter settings are likely reversed. Perform the Control Direction Test and adjust the controls on the transmitter appropriately.
  • W
    wrichardsSep 8, 2025
    What causes oscillation in my Horizon Hobby Toy aircraft?
    • A
      Alan BrownSep 8, 2025
      Oscillation in your Horizon Hobby Toy aircraft can stem from several issues. Start by checking for a damaged propeller or spinner nut, replacing them if necessary. An imbalanced propeller can also cause oscillation, so balance it. Motor vibration could be another cause; replace parts or correctly align all parts and tighten fasteners as needed. Ensure the flight controller is not loose by aligning and securing it in the fuselage. Check for loose aircraft controls and tighten or secure parts like the servo, arm, linkage, horn, and control surface. Worn parts, especially the propeller, spinner nut, or servo, should be replaced. Finally, irregular servo movement may require servo replacement.
  • B
    burnschristopherSep 12, 2025
    Why does my Horizon Hobby Mini Convergence VTOL PNP Toy aircraft flip on throttle up?
    • J
      John LawsonSep 12, 2025
      If your Horizon Hobby Toy aircraft immediately flips or crashes on throttle up, it's likely due to the main propellers being installed incorrectly. Ensure that you install the propeller marked with “R” on the right side motor and the propeller marked with “L” on the left side motor.

Summary

Safety Precautions and Warnings

General Safety Guidelines

Essential safety rules for operating the aircraft to prevent injury and damage.

Preflight Checklist

Transmitter Setup Guide

Transmitter and Receiver Binding

Instructions for setting up your transmitter and binding the aircraft.

Battery Installation and ESC Arming

Center of Gravity (CG)

CG Measurement

Procedure for checking and setting the aircraft's center of gravity.

Flight Conditions Explained

Flight Control Direction Test

Procedure to verify correct response of control surfaces.

Linkage Settings and Flight Trimming

Understanding Primary Flight Controls

Flight Control Operations Detail

Flying Your Aircraft

Pre-Flight Setup and Takeoff

Steps for preparing the aircraft and performing takeoff.

Transitioning Between Flight Modes

How to switch between multirotor and airplane flight modes.

Landing Procedures

Safe methods for landing the aircraft in multirotor mode.

Low Voltage Cutoff (LVC)

Understanding and responding to the low battery warning system.

Motor Service and Replacement

Troubleshooting Guide

Common Aircraft Problems and Solutions

Diagnosing and resolving issues with aircraft operation and controls.

AMA National Model Aircraft Safety Code

Horizon Hobby Mini Convergence VTOL PNP Specifications
