Horizon Hobby NT Evolution - Evolution Engine Specifications; Part Number Cross-Reference

11
Cross-Reference List of Evolution Alpha, .36NT, 40 NT, .46 NT, .61 NT and 1.00 NX Part Numbers
No. Description .36NT Alpha .40 NT .46 NT .61 NT 1.00 NX
1 Crankcase EVO036101 100101A 040101 046101 061101 110101
2 Rear Cover with Gasket EVO032102 100E46D 100E46D 100E46D 061102 110102
3 Piston/Liner Set (ABC) EVO036203 100203 040203 046203 061203 110203
4 Con Rod (Dual Bushing) EVO032204 100204 100204 100204 80204 110204
5Wrist Pin & Clips (Teflon) EVO032213 100213 040213 040213 061213 110213
6 Crankshaft (1/4 x 28) EVO032210 100210 100210 046210 061210 110210
7 Cylinder Head (Evolution) EVO036103 100103A 040103 046103 061103 110103
8 Cylinder Head Shim EVO036112 100112 040112 040112 061112 110112
9Prop Driver EVO036219 100219 040219 040219 061238X 110219
10 Spacer Washer EVO032225 100219B 100219B 100219B n/a 100219B
11 Carburetor Retainer (Drawbar) EVO036129 100129 100129 100129 061129 061129
12 Prop Washer EVO100220 100220 100220 100220 061228 110228
13 Prop Nut (1/4 x 28) EVO100221 100221 100221 100221 061228 110228
14 Gasket Set, Engine EVO036416 100416 040416 100416 061416 110416
15 Ball Bearing, Front (Rubber Seal) EVO032109 100109 100109 100109 061109 110109
16 Ball Bearing, Rear (Open Race) EVO028110 100110 100110 100110 061110 061110
17 Screw Set, Engine EVO036901 100901 100901 100901 061901 110901
18 Flywheel (Evo-Alpha) n/a 100219A n/a n/a n/a n/a
19 Carburetor, Complete EVO036801 100801A 100801A 100801A 061801 110801
20 Muffler EVO036601 100601 100601 100601 061601 110601
21 Muffler Mounting Screw Set EVO036E36A 100E46A 100E46A 100E46A 061E61A 110E100A
22 Carburetor Body EVO0036863 100863 100863 100863 061863 110863
23 Fuel Nipple EVO100114 100114 100114 100114 061819 061819
24 High-Speed Needle Valve EVO100829A 100829A 100829A 100829A 100829A 100829A
25 Spraybar/Bracket (Remote) EVO036870 100870A 100870A 100870A 061870 110870
26 High-Speed Needle Valve Ratchet EVO100833 100833 100833 100833 100833 100833
27 Collar with Set Screw EVO100834A 100834A 100834A 100834A 100834A 100834A
28 Spraybar (Remote) EVO100830 100830 100830 100830 100830 100830
29 Throttle Barrel EVO036813 100813 100813 100813 061813 110813
30 Throttle Barrel Spring EVO100814 100814A 100814A 100814A 100814A 100814A
31 Idle Needle EVO100844A 100844A 100844A 100844A 100844A 100844A
32 Throttle Arm EVO100864A 100864A 100864A 100864A 100864A 100864A
33 Idle Needle Limit Collar EVO100850A 100850A 100850A 100850A 100850A 100850A
34 45mm Fuel Tube EVO100872 100828A 100878A 100878A 100878A 100878A
35 Idle Needle Stop Screw w/Nut EVO100825F 100825F 100825F 100825F 061837F 100825F
36 Carburetor Gasket, O-Ring Set EVO036E36B 100E46B 100E46B 100E46B 061E61B 061E61B
37 Small Parts Set, Carburetor EVO061E61C 100E46C 100E46C 100E46C 061E61C 061E61C
38 Needle Valve Assembly EVO036874 046874 046874 046874 046874 110874
39 Drive Key n/a n/a n/a n/a n/a 110218
™
10

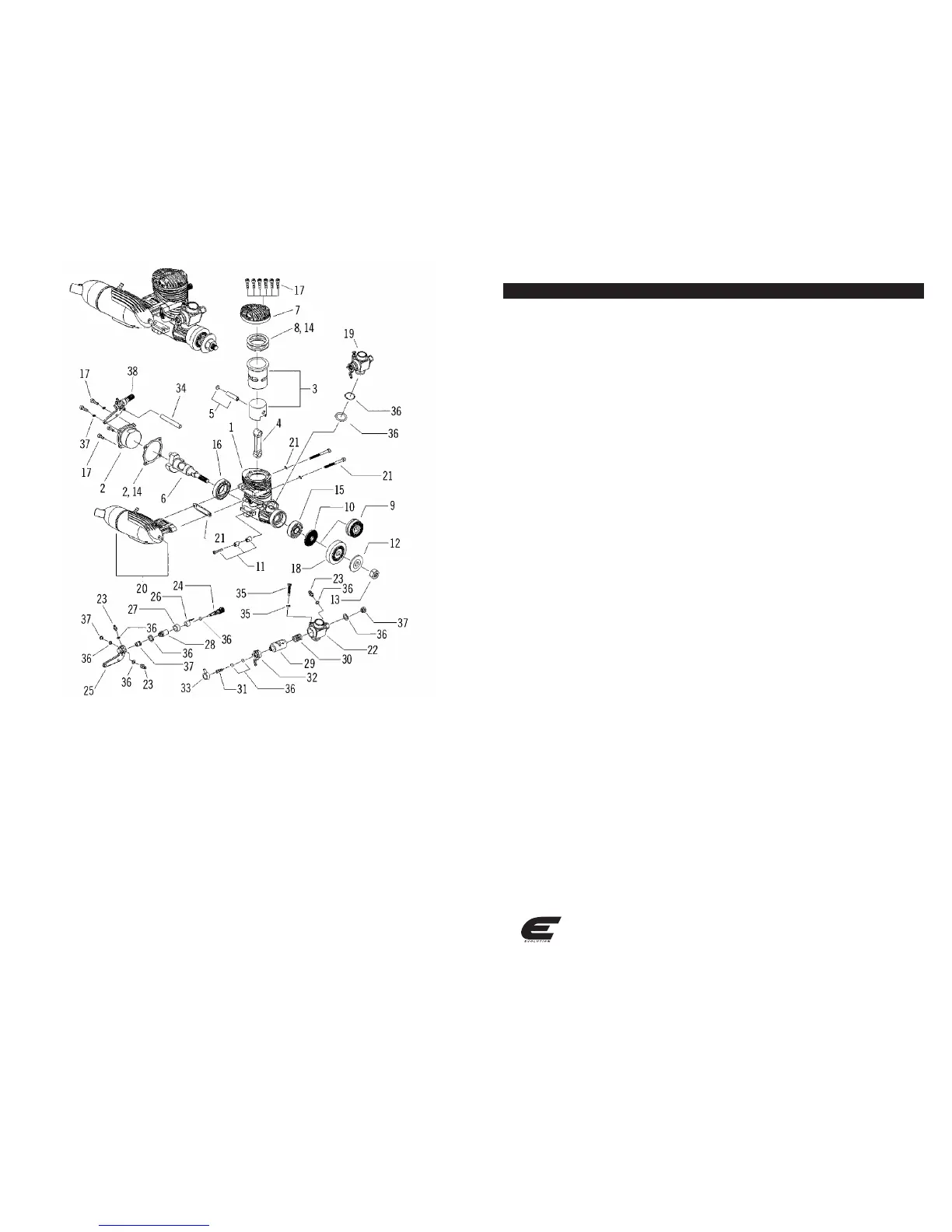

No. Description
1 Crankcase
2 Rear Cover with Gasket
3 Piston & Liner Set (ABC)
4 Connecting Rod (Dual Bushing)
5 Wrist Pin w/Clips (Teflon)
6 Crankshaft (1/4 X 28)
7 Cylinder Head (Evolution)
8 Cylinder Head Shim
9Prop Driver
10 Spacer Washer
11 Carburetor Retainer (Drawbar)
12 Prop Washer
13 Prop Nut (1/4 X 28)
14 Gasket Set, Engine
15 Ball Bearing, Front (Rubber Seal)
16 Ball Bearing, Rear (Open Race)
17 Screw Set, Engine
18 Flywheel (Evo-Alpha)
19 Carburetor, Complete
20 Muffler
21 Muffler Mounting Screw Set
22 Carburetor Body
23 Fuel Nipple
24 High-Speed Needle Valve
25 Spraybar Bracket (Remote)
26 High-Speed Needle Valve Ratchet
27 Collar w/Set Screw
28 Spraybar, (Remote)
29 Throttle Barrel
30 Throttle Barrel Spring
31 Idle Needle
32 Throttle Arm
33 Idle Needle Limit Collar
34 45mm Fuel Tube
35 Idle Needle Stop Screw w/Nut
36 Carburetor Gasket, O-Ring Set
37 Small Parts Set, Carburetor
38 Needle Valve Assembly
