Horizon 202 User manual, 1991 year
– 3 –

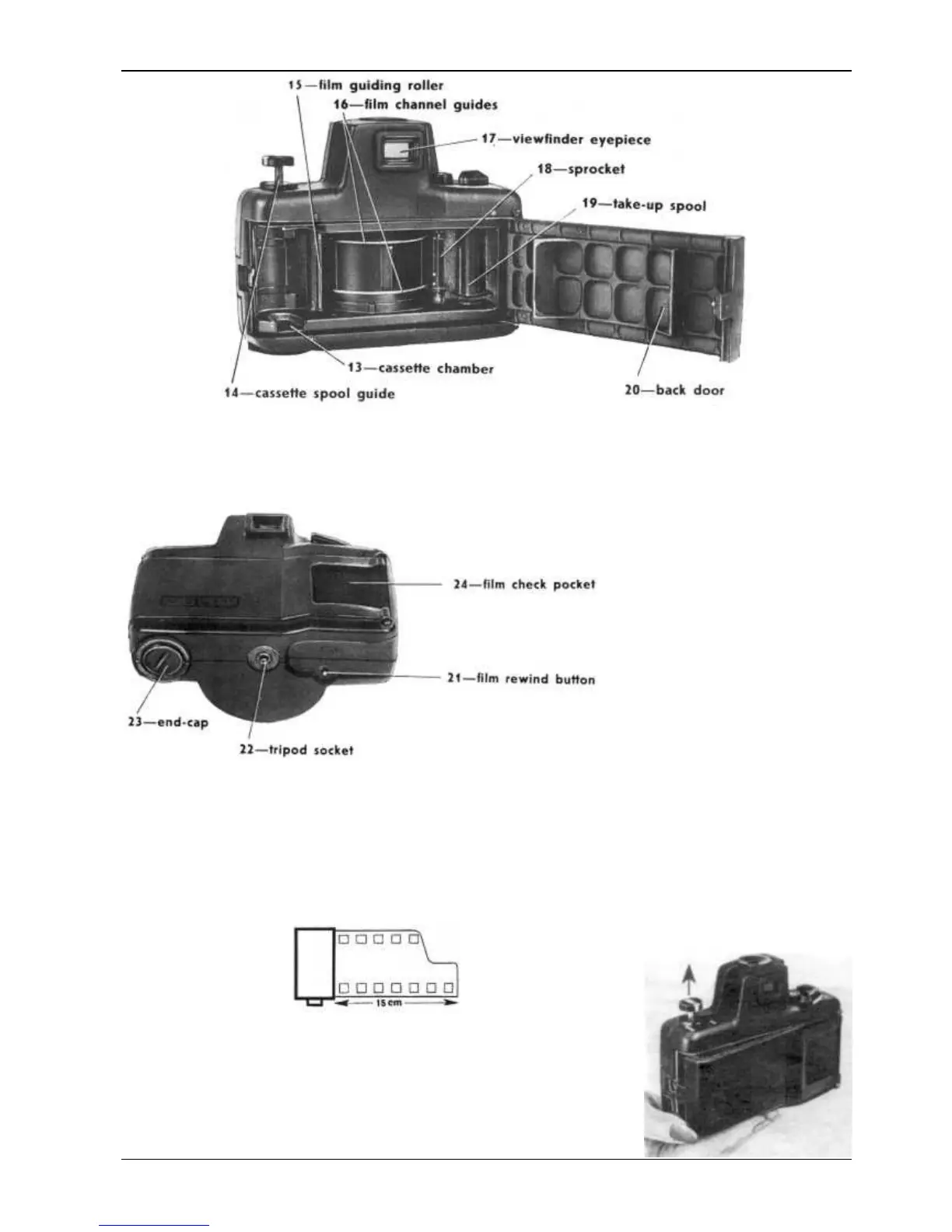

13 — cassette chamber;
14 — cassette spool guide;
15 — film guiding roller;
16 — film channel guides;
17 — viewfinder eyepiece;
18 — sprocket;
19 — take-up spool;
20 — back door;
21 — film rewind button;
22 — tripod socket;
23 — end-cap;
24 — film check pocket.
4. Operating procedure
4.1. Loading the Camera
The camera accepts standard cassettes loaded with any type of 35mm film. If you load the cassette
with film on your own, be sure to properly secure the film end in the cassette spool to prevent it
breaking away from the spool during operation. See to it that the film leader is free from bends and
folds and cut to the standard form.
The camera loading should not be done in direct sun light.
Load the camera in the folowing way:
— Flip open film rewind crank 8 and holding it, pull out rewind
knob 5 as far as it will go. Holding the film rewind knob in this
position, open back door 20 with your second hand.
