Hospitex Diagnostics EOS Bravo and EOS Bravo Plus Service Manual
18

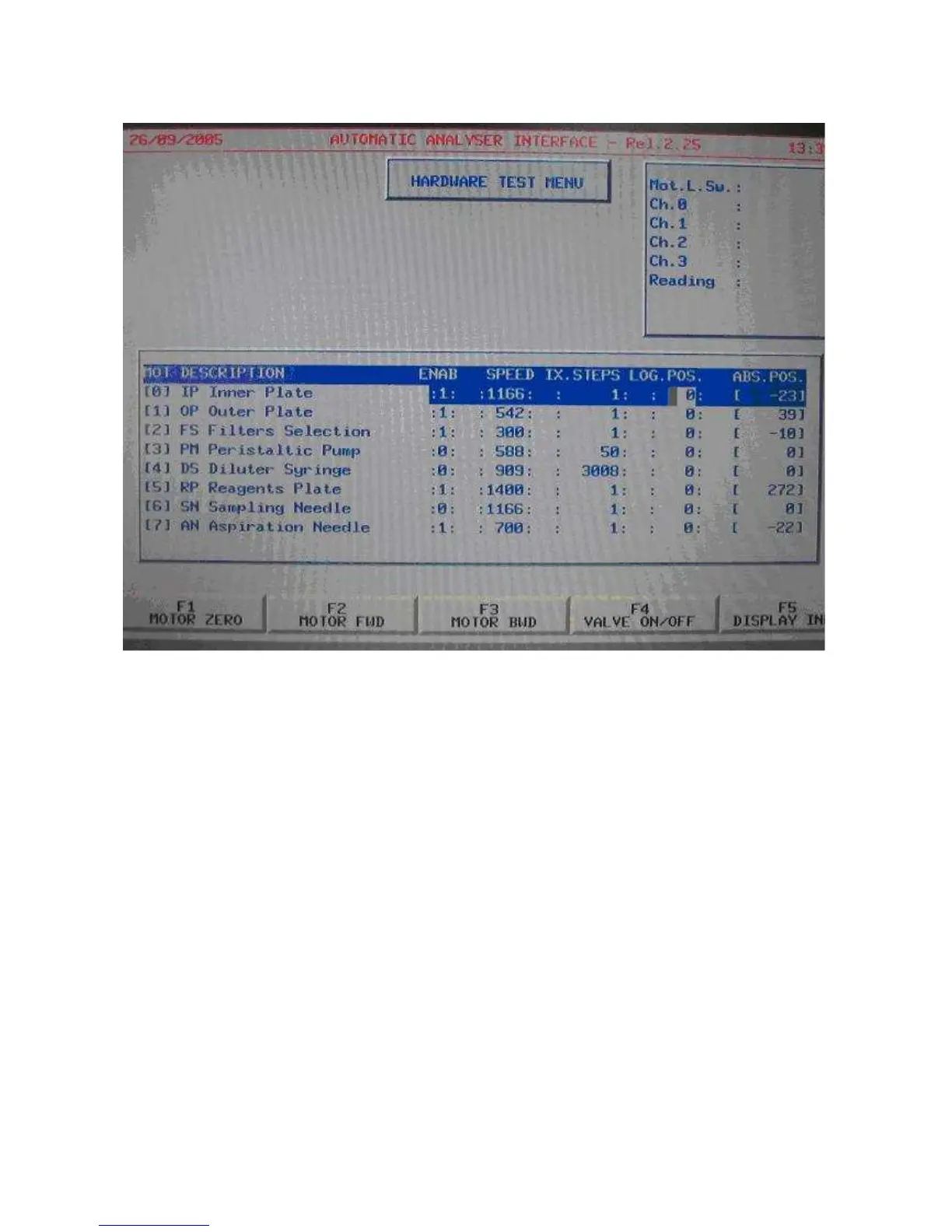

MAIN MENU’ > F5 SERVICE > F3 DIAGNOSTICS > F3 HARDWARE TEST
F1 MOTOR ZERO : Used to execute the home position of the motor under examination
F2 MOTOR FWD : Used to move in the clock sense the motor under examination
F3 MOTOR BWD : Used to move in the anticlock sense the motor under examination
F4 VALVE ON/OFF : Used to verify the functionality of the electrovalve situated on the
diluter
Used to verify the functionality of the two pumps in the double
cuvette
F5 DISPLAY INP. : The command F5 active the continues visualisation of the inputs
