Hospitex Diagnostics EOS Bravo and EOS Bravo Plus Service Manual
19

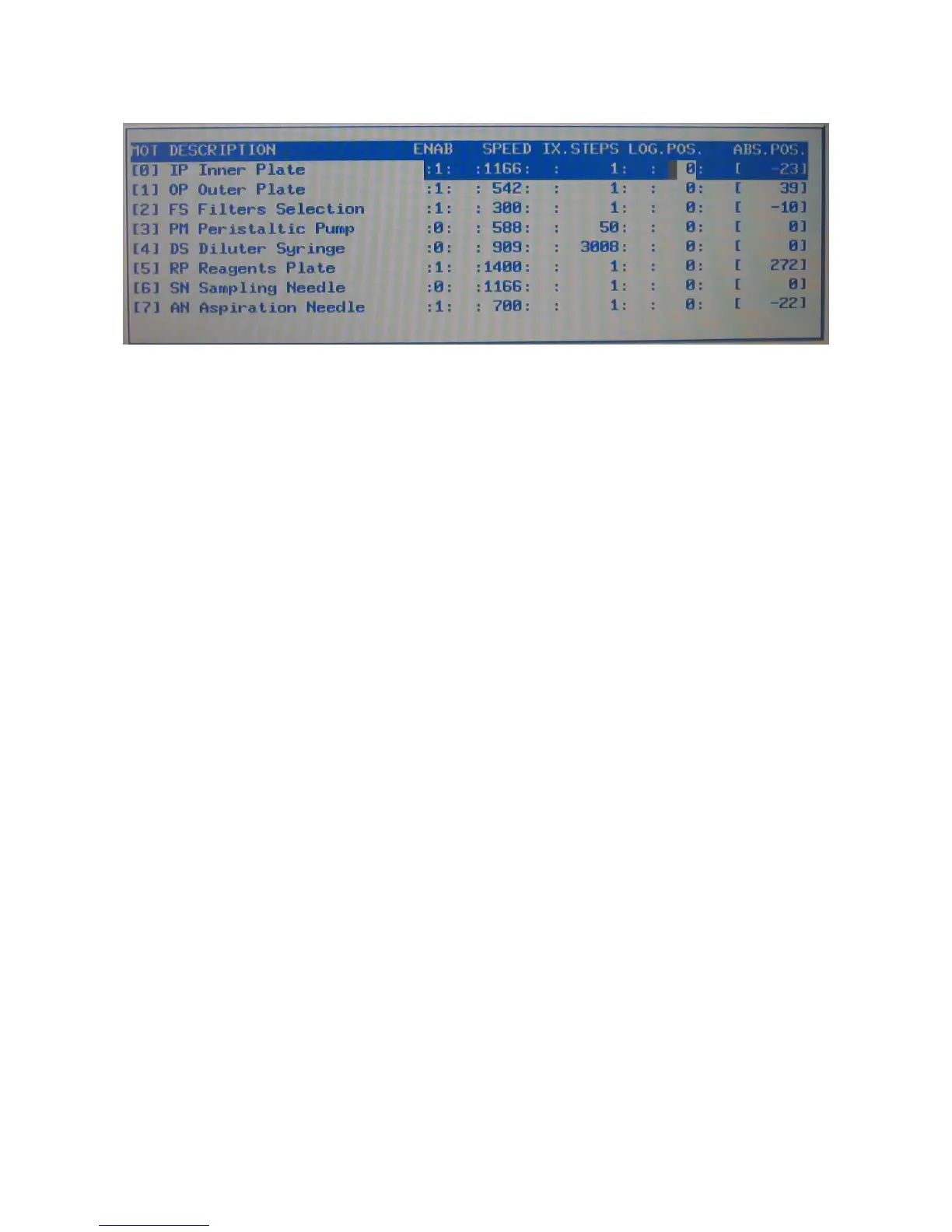

MAIN MENU’ > F5 SERVICE > F3 DIAGNOSTICS > F3 HARDWARE TEST
LEGENDA
MOT : Number relative to the motor in object
DESCRIPTION : Description of the motor in object
ENAB : Command to block the motor in object
( 0 = FREE / 1 = BLOCKED )
SPEED : Speed of the motor in object
IX. STEPS : X Steps to execute with the motor in object
LOG. POS. : Position were we want put the motor in object
ABS. POS : Real position , in steps, that the motor has taken
