Hospitex Diagnostics EOS Bravo and EOS Bravo Plus Service Manual
43

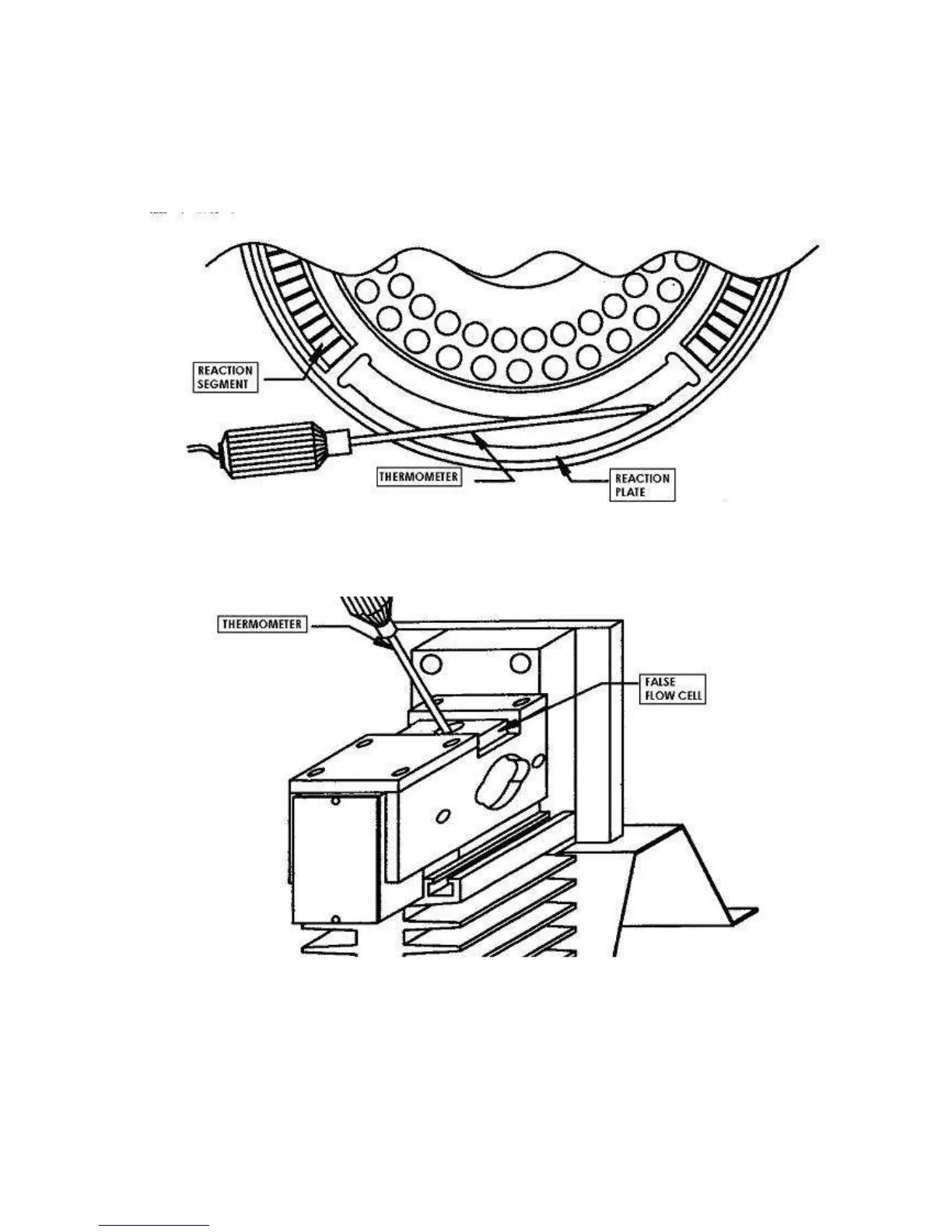

37) position the thermometer on the reaction plate putting the end of it in one of the reaction
segments in the way that the edge of it arrived to the bottom near to the temperature sensor
and then dry with some paper tissues the holder to avoid the heat dispersion and
contemporary block the thermometers position.
Take three reaction segments and insert them in the three holders remained free on the
reaction plate.
38) position a thermometer in the optical group inserting the end of it through the central hole
of the false flow cell which should be inserted at the place of the true one in the optical group.
