Hospitex Diagnostics EOS Bravo and EOS Bravo Plus Service Manual
66
MECHANICALS:

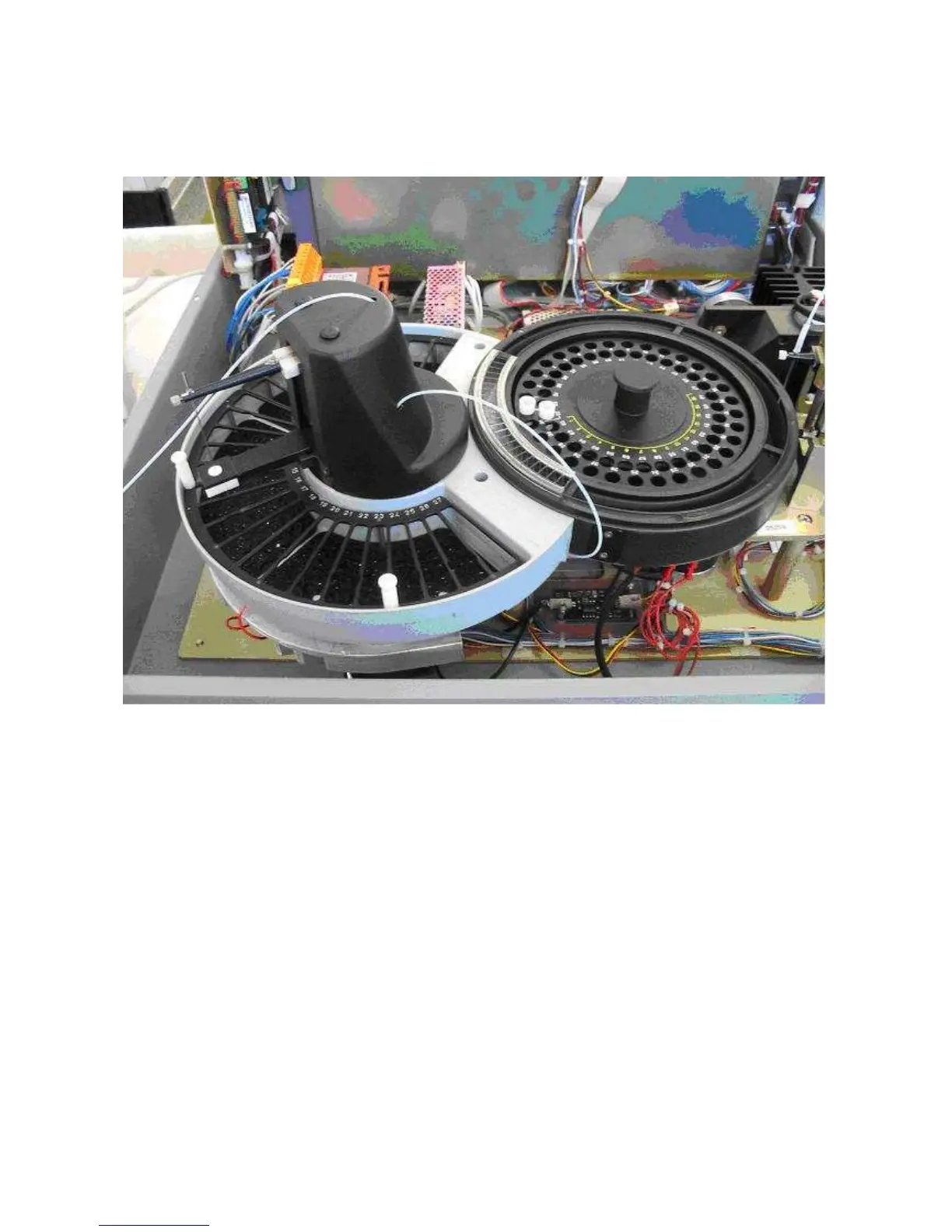

Figure 1: Central Mechanical group
The Central Mechanical group included:
- Sampling Arm
- Reagent Plate
- Outer Plate
- Inner Plate
- Aspiration Needle
