Hotblast 1300 - Page 10


CONNECTION OF CHIMNEY CONNECTOR TO A MASONRY CHIMNEY THROUGH A COMBUSTIBLE WALL

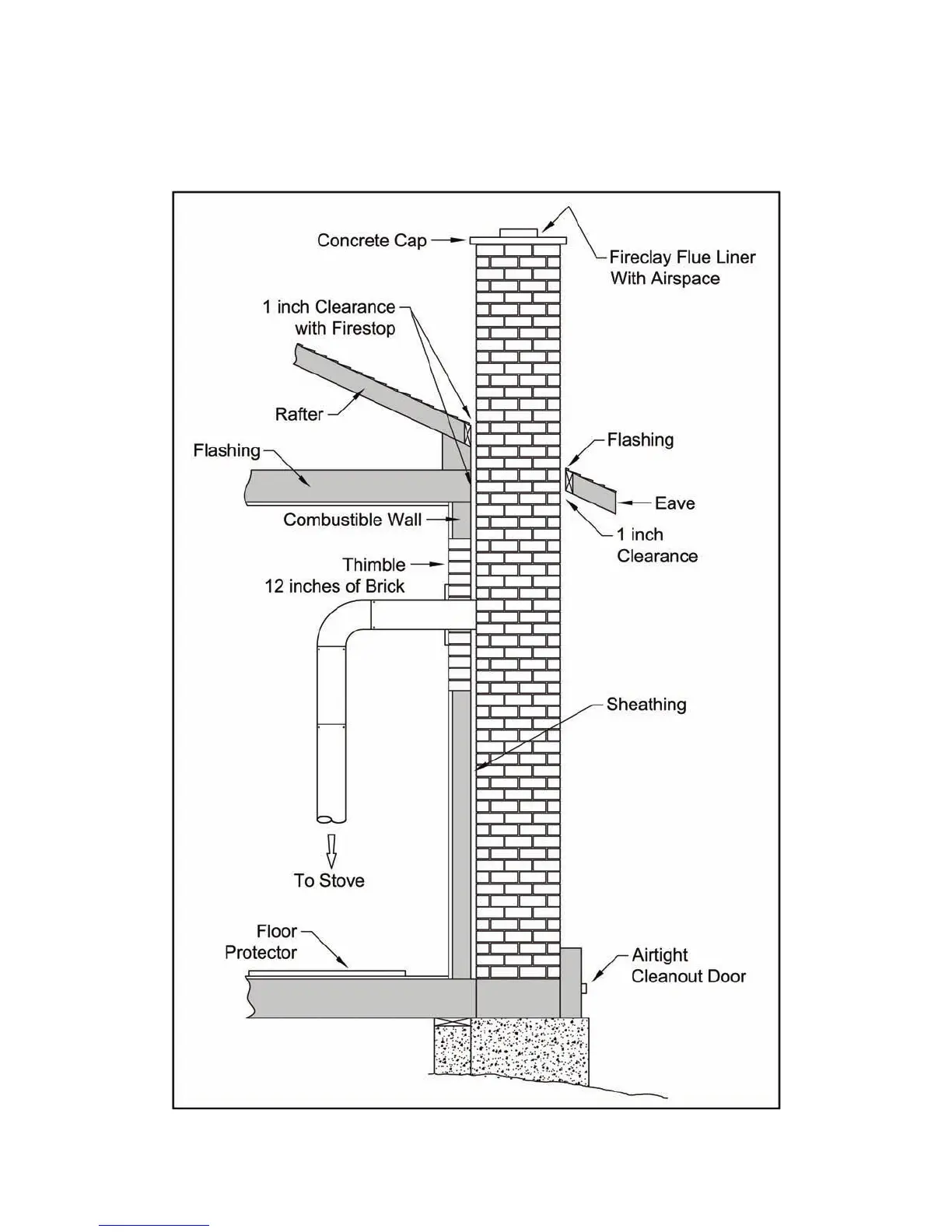

Figure 8 shows how to connect the chimney connector of a heater to a masonry chimney through a combustible wall.
There are ve allowable ways that a chimney connector can be connected to a masonry chimney by passing through a
combustible wall. NFPA Standard 211 allows the following wall pass-through systems.

