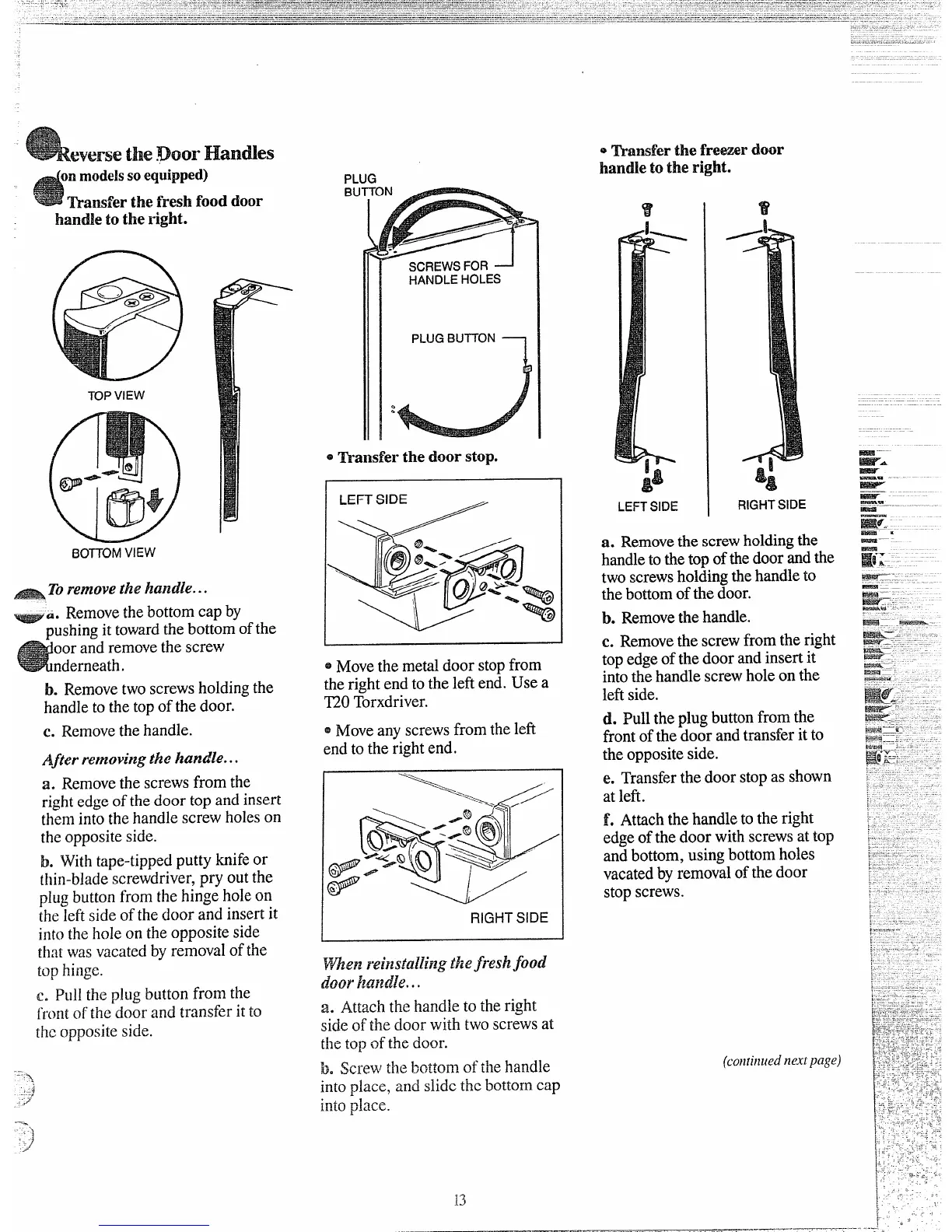

eversethe.DoorHandes
on n~odeBssoequipped)
Transferthe fresh food door
handleto the right.
TOPVIEW
PLUG
BU
~hansfer the doorstop.
60TTOM VIEW
-TO remove
the handle...
s.. Removethe bottom cap by
pushingit towardthe bottom ofthe
oor and removethe screw
nderneath.
b. Removetwo screws holdingthe
handle to the top ofthe door.
c. Removethe handle.
After re~novingthe handle...
a. Removethe screws from the
right edge of the door top and insert
them into the handle screw holeson
the opposite side.
b. With tape-tipped putty knifeor
[bin-b]adescrewdriver, pry out the
plug button from the hinge hole on
the left side of the door and insert it
intt]the hole on the opposite side
that was vacated by removal ofthe
top hinge.
e. Pull the plug button from the
fr~lntof tllc door and transfer itto
the opposile side.
- SCREWSFOR J
HANDLE
HOLES
PLUG BU~ON
7
LEFT SIDE
/
@Movethe metaldoor stopfrom
the right end to the leftend. Use a
~0 Torxdriver.
~Moveany screwsfrom the left
end to the right end.
RIGHTSIDE
doorhalzdle...
a. Attach the handle to the right
side of the door with two screwsat
the top of the door.
b. Screw the bottom of the handle
into place, and slide the bottom cap
into place.
13
* tinsfer the freezerdoor
handleto the right.
LEFTSIDE
RIGHTSIDE
a. Removethe screwholdingthe
handleto the top ofthe door ad the
two screwsholdingthe handle to
the bottom of the door.
b. Removethe handle.
c. Removethe screwfrom the right
top edge of the door andinsert it
intothe handle screwhole on the
lefi side.
d. Pull the plug button from the
front of the door and transferit to
the oppositeside.
e. Transferthe door stopas shown
at lefi.
f. Attach the handleto the right
edge of the door with screwsat top
and bottom, using bottom holes
vacatedby removalof the door
stop screws.
(coiltinuedncxtpage)
—–.—
-
