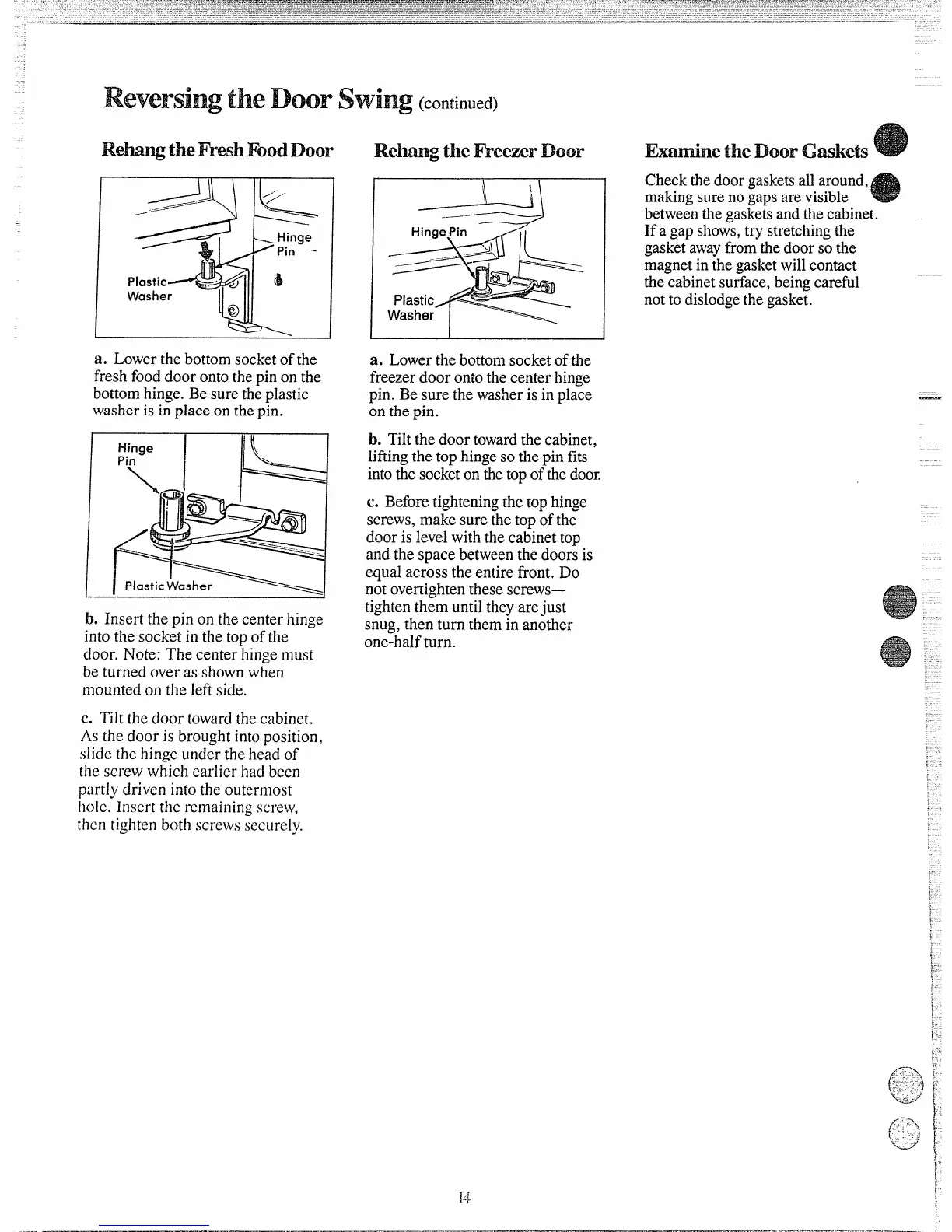

Reha~ themsh FoodDoor
Washer
a. Lower the bottomsocketof the
fresh fooddoor ontothepin on the
bottomhinge. Be sure the plastic
washer is in place on thepin.
b. Insert the pin on thecenter hinge
into the socket in the top of the
door. Note: The center hingemust
be turned over as shownwhen
mounted on the leftside.
e. Tilt the door towardthe cabinet.
.4s the door is brought intoposition,
slide the hinge under the head of
the screw which earlier had been
partly driven into the outermost
hole. Insert the remaining screw,
then tighten b(]thscrews securely.
RehangtheReezerDoor
.~
_—
.~
Hinge Pin ‘-
>1
_-----
~
Plastic
Washer 1~
a. Lower the bottomsocketofthe
freezerdoor ontothe centerhinge
pin. Be surethe washeris inplace
on the pin.
b. Tiltthe door towardthe cabinet,
liftingthe top hingeso the pin fits
intothe socketon thetop ofthedoor.
c. Beforetighteningthe top hinge
screws, make sure the top of the
door is level with the cabinet top
and the space betweenthe doors is
equal across the entire front. Do
notovertightenthese screws—
tightenthem untilthey arejust
snug, then turn them in another
one-halfturn.
ExaminetheDoorGaskek
Checkthe doorgasketsall around,
makingsure no gapsare visible
betweenthe gasketsand the cabinet.
If a gap shows,try stretchingthe
gasketawayfrom thedoor so the
magnetin the gasketwillcontact
thecabinetsurface, beingcareful
notto dislodgethe gasket,
