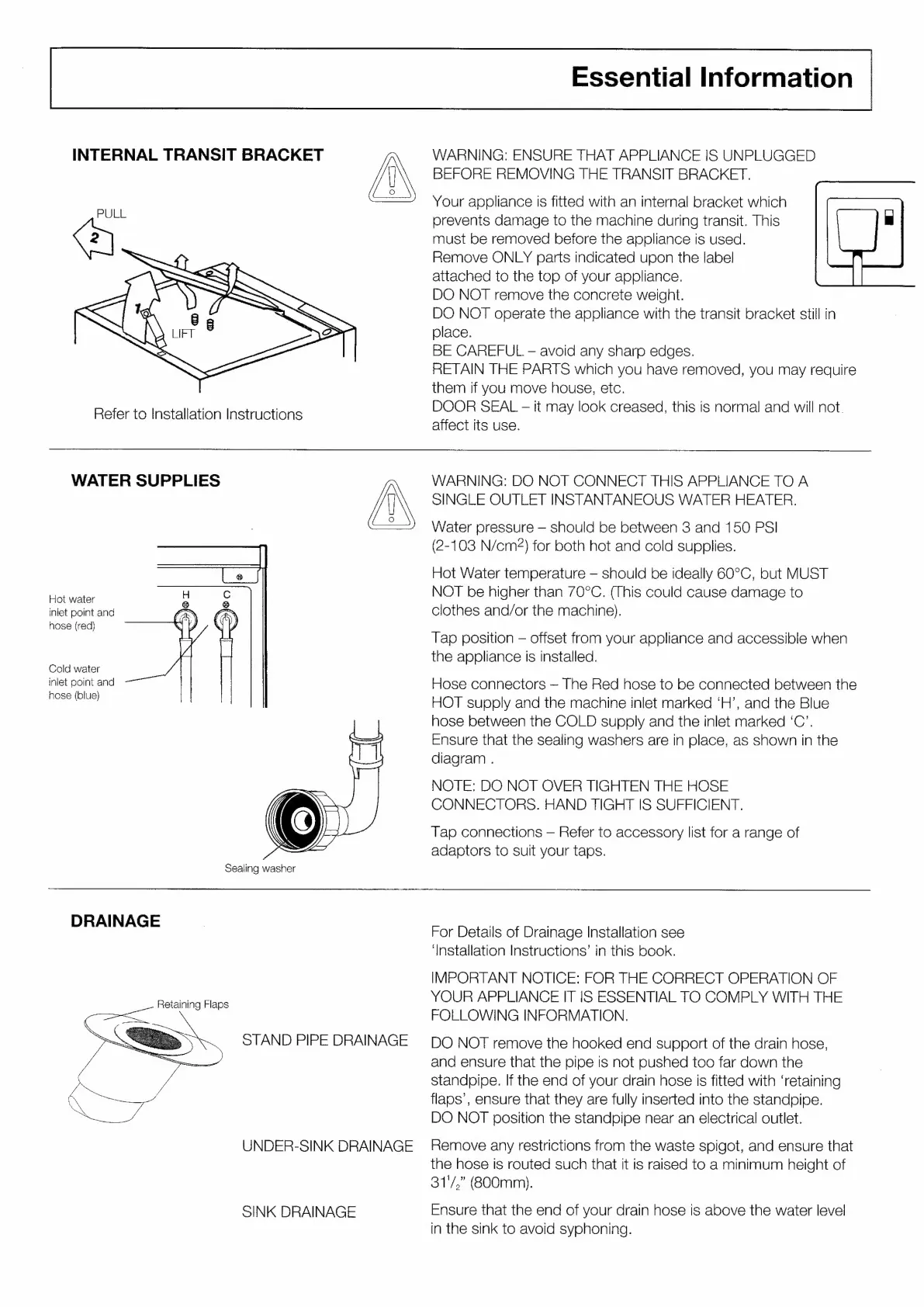

Essential Information
BEFORE REMOVING THE TRANSIT BRACKET.
Your appliance is fitted with an internal bracket which
prevents damage to the machine during transit. This
must be removed before the appliance is used.
Remove ONLY parts indicated upon the label
attached to the top of your appliance.
DO NOT remove the concrete weight.
DO NOT operate the appliance with the transit bracket still in
place.
BE CAREFUL - avoid any sharp edges.
RETAIN THE PARTS which you have removed, you may require
them if you move house, etc.
DOOR SEAL -— it may look creased, this is normal and will not.
affect its use.
INTERNAL TRANSIT BRACKET i WARNING: ENSURE THAT APPLIANCE IS UNPLUGGED
Refer to Installation Instructions
WARNING: DO NOT CONNECT THIS APPLIANCE TO A
SINGLE OUTLET INSTANTANEOUS WATER HEATER.
Water pressure — should be between 3 and 150 PSI
(2-103 N/cm?) for both hot and cold supplies.
Hot Water temperature — should be ideally 60°C, but MUST
NOT be higher than 70°C. (This could cause damage to
WATER SUPPLIES
Hot water ;
inlet point and clothes and/or the machine).
hose (red)
G Tap position — offset from your appliance and accessible when
the appliance is installed.
Cold water
inlet point and Hose connectors ~ The Red hose to be connected between the
pee HOT supply and the machine inlet marked ‘H’, and the Blue
hose between the COLD supply and the inlet marked ‘C’.
Ensure that the sealing washers are in place, as shown in the
diagram .
NOTE: DO NOT OVER TIGHTEN THE HOSE
CONNECTORS. HAND TIGHT IS SUFFICIENT.
Tap connections — Refer to accessory list for a range of
adaptors to suit your taps.
Sealing washer
DRAINAGE
For Details of Drainage Installation see
‘Installation Instructions’ in this book.
IMPORTANT NOTICE: FOR THE CORRECT OPERATION OF
YOUR APPLIANCE IT IS ESSENTIAL TO COMPLY WITH THE
FOLLOWING INFORMATION.
STAND PIPE DRAINAGE DO NOT remove the hooked end support of the drain hose,
and ensure that the pipe is not pushed too far down the
standpipe. If the end of your drain hose is fitted with ‘retaining
See a flaps’, ensure that they are fully inserted into the standpipe.
DO NOT position the standpipe near an electrical outlet.
Retaining Flaps
UNDER-SINK DRAINAGE Remove any restrictions from the waste spigot, and ensure that
the hose is routed such that it is raised to a minimum height of
31'/,” (800mm).
SINK DRAINAGE Ensure that the end of your drain hose is above the water level
in the sink to avoid syphoning.
