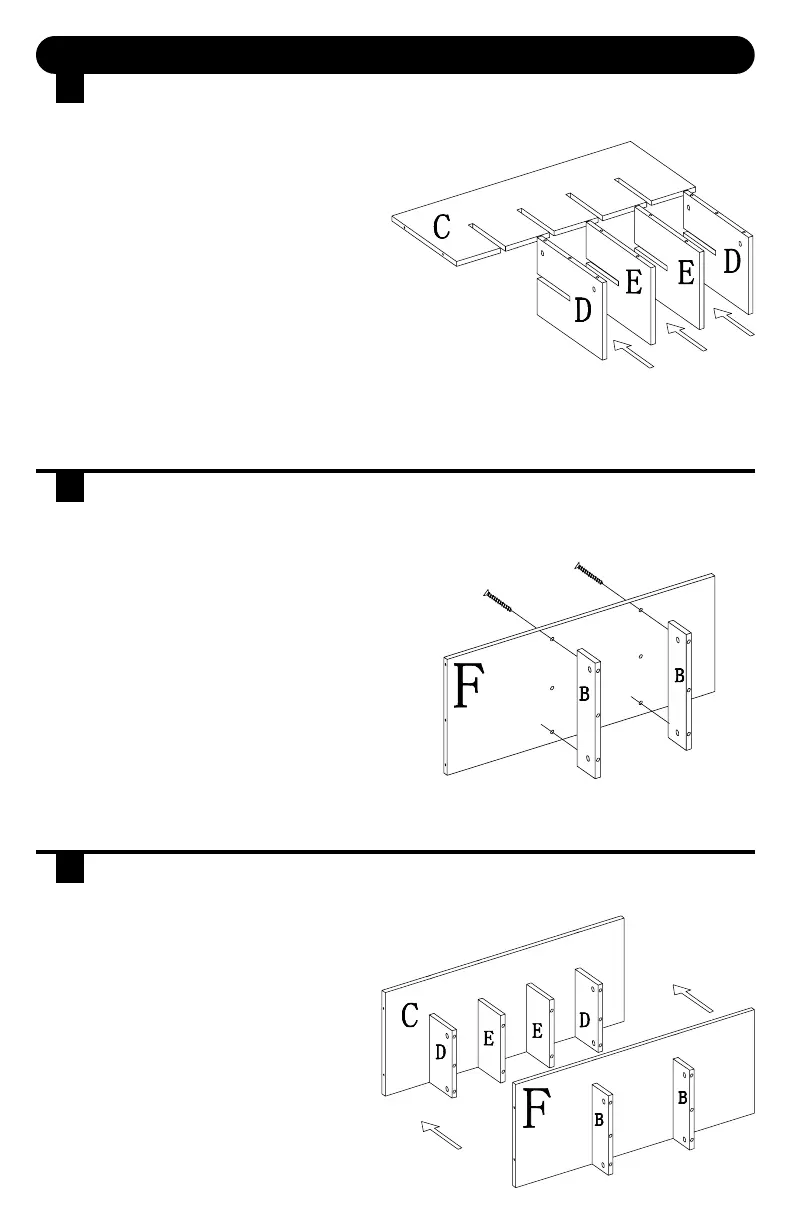

Insert shoe dividers (D/E) into slotted shoe panel (C) so that
panels are in the following order: D, E, E, D
Attach drawer dividers (B) to the top side of drawer
panel (F) using long screws (O). The top side of panel F
has the wider-set holes.
Insert 4 cam locks (L) into the side predrilled
holes on shoe dividers (D). Attach drawer panel
(F) to shoe dividers (D/E). Turn cam locks to
lock assembly.
Assembly cont’d
2
3
4
(O)
To Next Page
