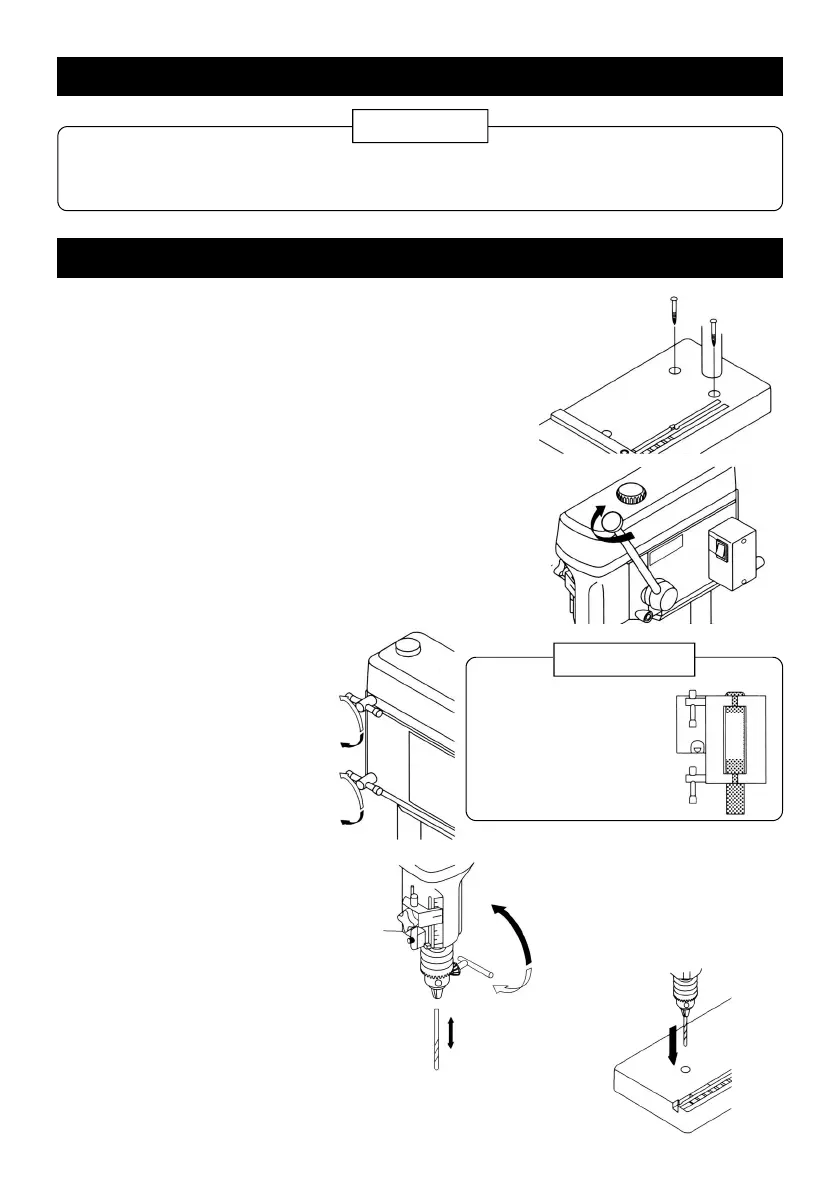

Preparation
Use commercially-available wood screws to
securely attach the base to a work bench.
Choose set screws less than 6mmφ.
１
１１
１
２
２２
２
Attach the vertical lift handle to the main unit.
Thread in clockwise.
４
４４
４
Install the drill bit.
Hold the drill chuck with your
hand, and then insert the chuck
wrench into the hole at the side
of the chuck and turn the
wrench to loosen the chuck.
Insert the drill bit into the end,
and then turn the chuck wrench
to securely tighten the drill bit.
Be sure to remove the chuck
wrench after use.
Fully lower the vertical lift
handle gradually to be sure
that the drill bit enters into the
center of the recess hole and
does not touch everything.
8. Store the K-21 in an appropriate place. Do not leave the K-21 for a long time in a
place where it is exposed to shock or vibration, in the direct rays of the sun or in a
high temperature and/or humidity environment.
Caution
Precautions
３
３３
３
Adjust the height of the
main unit in accordance
with the thickness of the
workpiece.
Loosen the T-screw at the
back and move the main
unit up or down for the
appropriate height. Once
the height is determined,
securely tighten the T-
screw.
You can see the avail-
able maximum height
by removing the belt
cover that is the top of
the post slightly coming
out as shown in the
illustration.
Caution
Post
Main unit
To Next Page
